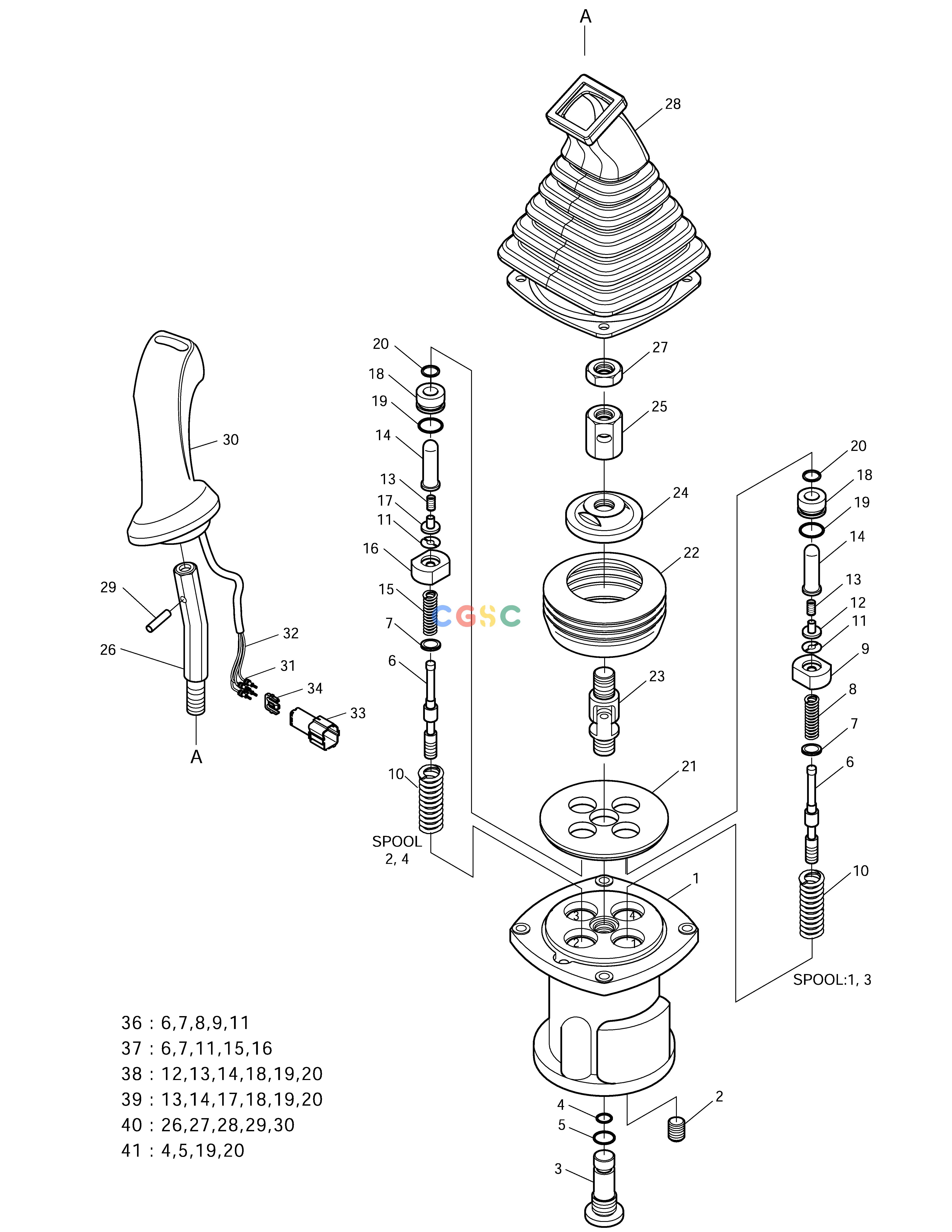

斗山零件查询REMOTE CONTROL VALVE SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
783 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00342B
|
[1] |
REMOTE CONTROL VALVE(L.H)
|
|
| -. |
420-00343B
|
[1] |
REMOTE CONTROL VALVE(R.H)
|
|
| 1. |
1.402-00001
|
[1] |
CASE
|
|
| 10. |
1.521-00003
|
[4] |
SPRING
|
|
| 11. |
NA01233
|
[4] |
. STOPPER
|
|
| 12. |
NA01238
|
[2] |
|
|
| 13. |
NA01182
|
[4] |
. SPRING
|
|
| 14. |
NA01013
|
[4] |
ROD;PUSH
|
|
| 15. |
NA01191
|
[2] |
|
|
| 16. |
NA01113
|
[2] |
|
|
| 17. |
NA01239
|
[2] |
|
|
| 18. |
NA00843
|
[4] |
PLUG
|
|
| 19. |
NA00643
|
[4] |
. O-RING
|
|
| 2. |
2181-1116D1
|
[4] |
PLUG
|
|
| 20. |
NA01097
|
[4] |
. SEAL;ROD
|
|
| 21. |
1.412-00016
|
[1] |
PLATE
|
|
| 22. |
1.110-00168
|
[1] |
BUSHING
|
|
| 23. |
1.138-00004
|
[1] |
JOINT ASSY
|
|
| 24. |
1.412-00131
|
[1] |
PLATE;SWASH
|
|
| 25. |
1.121-00028
|
[1] |
NUT
|
|
| 26. |
NA00044
|
[1] |
|
|
| 27. |
NA00624
|
[1] |
|
|
| 28. |
1.160-00007
|
[1] |
BOOT
|
|
| 29. |
NA00779
|
[1] |
BALL
|
|
| 3. |
K9002911
|
[1] |
PLUG
|
|
| 30. |
NA00506
|
[1] |
|
|
| 30. |
NA00507
|
[1] |
|
|
| 31. |
NA01264
|
[5] |
TERMINAL
|
|
| 32. |
NA01345
|
[5] |
WIRE;SEAL
|
|
| 33. |
NA00528
|
[1] |
CARTER
|
|
| 34. |
NA00519
|
[1] |
|
|
| 36. |
K9002914
|
[2] |
SPOOL KIT(1.3PORT)
|
|
| 37. |
K9002915
|
[2] |
SPOOL KIT(2.4PORT)
|
|
| 38. |
K9002916
|
[2] |
PLUG KIT (1.3PORT)
|
|
| 39. |
K9002917
|
[2] |
PLUG KIT (2.4PORT)
|
|
| 4. |
S8002701
|
[1] |
. O-RING
|
|
| 40. |
K9001228
|
[1] |
HANDLE KIT(L.H)
|
|
| 40. |
K9001228
|
[1] |
HANDLE KIT(L.H)
|
|
| 41. |
K9004591
|
[1] |
SEAL KIT
|
|
| 5. |
S8000141
|
[1] |
O-RING
|
|
| 6. |
NA01161
|
[4] |
. SPOOL
|
|
| 7. |
NA01133
|
[4] |
. SHIM
|
|
| 8. |
NA01190
|
[2] |
|
|
| 9. |
NA01112
|
[2] |
|
|
