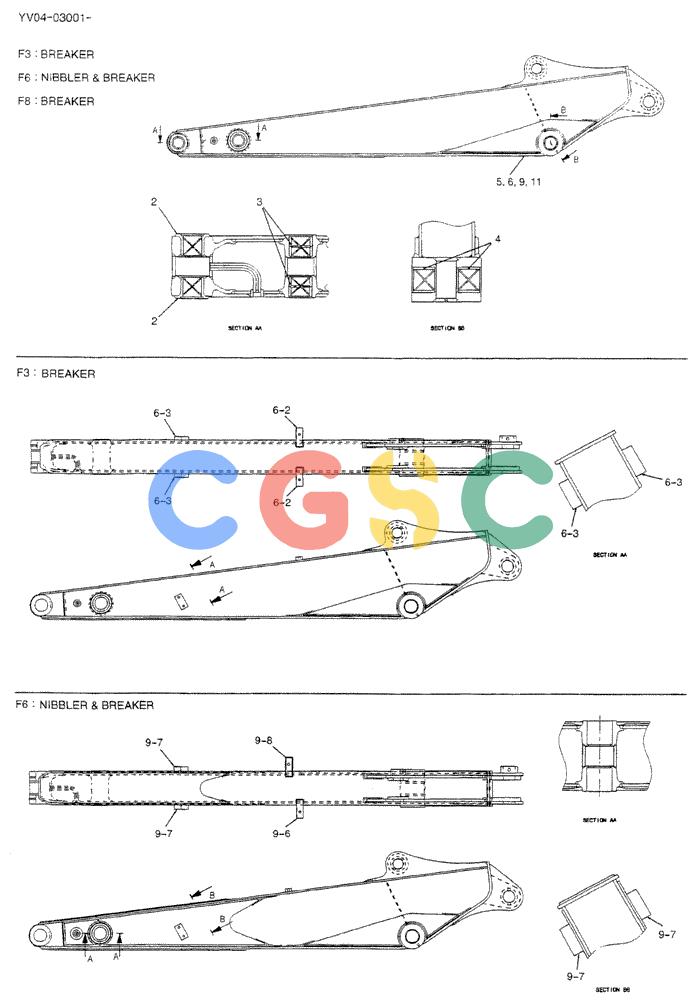

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-021[01]) - ARM 2.2M Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
883 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV12B00090F3 | [1] | ARM ASSY, 2.2M (BREAKER) | |
| . . | YV12B00090F6 | [1] | ARM ASSY, 2.2M (NIBBLER & BREAKER) | |
| . . | YV12B00090F8 | [1] | ARM ASSY, 2.2M (BREAKER) | |
| 2. | YV12B01068P1 | [2] | BUSHING | KOB Superseded by part number: YW12B01036P1 |
| 3. | YW12B01042P1 | [2] | BUSHING | KOB |
| 4. | YX12B01021P1 | [2] | BUSHING | KOB |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONARM (F3 ONLY) |
| 6-2. | 2416T13112 | [2] | BLOCK | KOB Superseded by part number: YY12B01319P1 |
| 6-3. | YN43H01051P1 | [2] | BLOCK | KOB |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONARM (F6 ONLY) |
| 9-6. | 2416T13112 | [1] | BLOCK | KOB Superseded by part number: YY12B01319P1 |
| 9-7. | YN43H01051P1 | [2] | BLOCK | KOB |
| 9-8. | YV12B01070P1 | [1] | BLOCK | KOBTAPPED |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONARM (F8 ONLY) |
| 11-2. | 2416T13112 | [1] | BLOCK | KOB Superseded by part number: YY12B01319P1 |
| 11-3. | YV12B01070P1 | [1] | BLOCK | KOBTAPPED |
| 11-4. | YN43H01051P1 | [2] | BLOCK | KOB |
