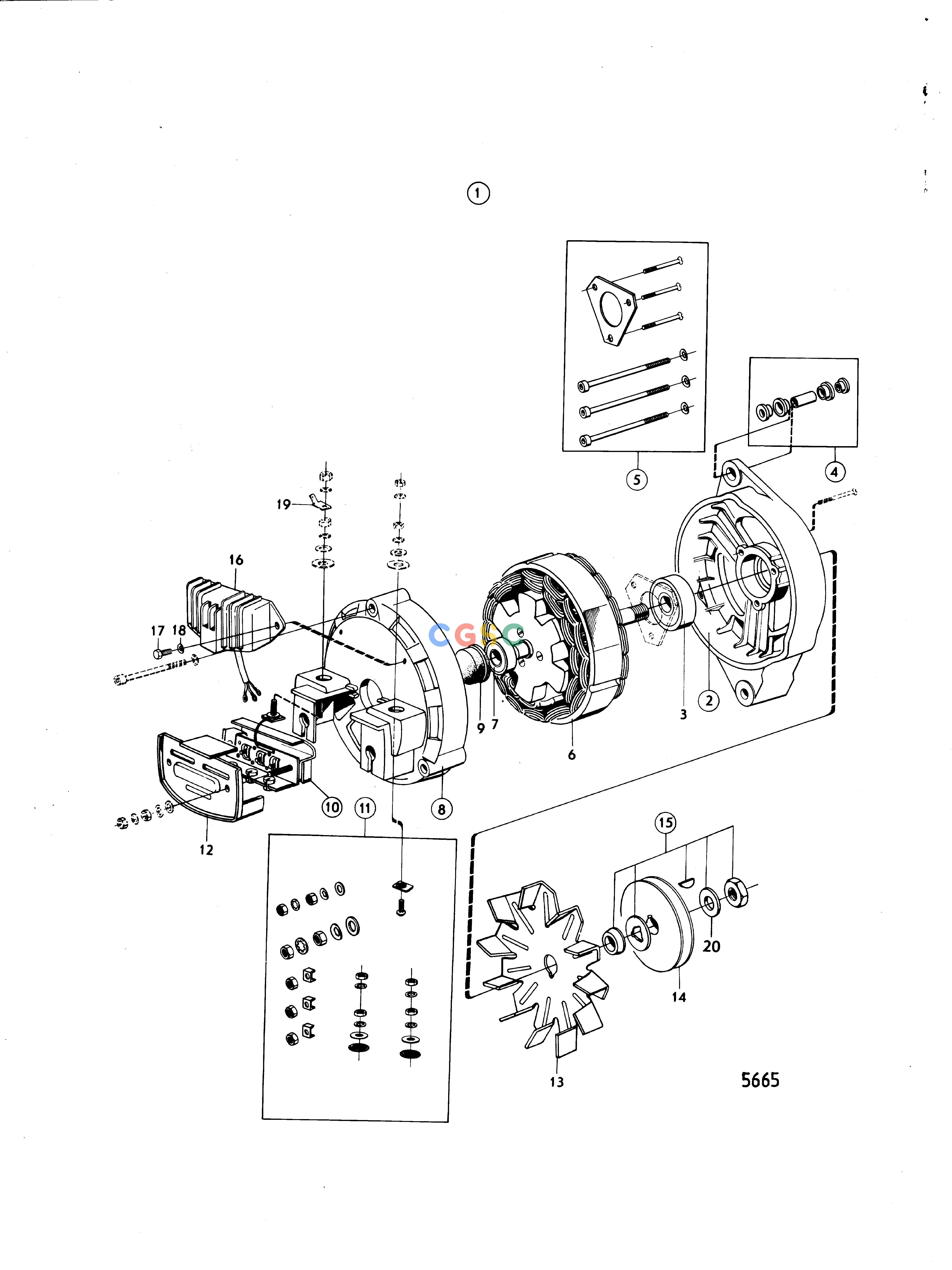

沃尔沃零件查询MD5A; MD5B; MD5CElectrical SystemAlternator: 841380EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
841380
|
[1] |
Alternator
|
14V 35A
|
| 2. |
831845
|
[1] |
End plate
|
|
| 3. |
181601
|
[1] |
Ball bearing
|
(831853)
|
| 4. |
465033
|
[1] |
Guide
|
|
| 5. |
831846
|
[1] |
Screw kit
|
|
| 6. |
|
|
|
|
| 7. |
181797
|
[1] |
Ball bearing
|
|
| 8. |
831847
|
[1] |
End plate
|
|
| 9. |
831848
|
[1] |
Protecting cover
|
|
| 10. |
841575
|
[1] |
Diode kit
|
For charging of 2 batteries use charge distributor 831793
|
| 11. |
831851
|
[1] |
Screw kit
|
|
| 12. |
831854
|
[1] |
Cover
|
|
| 13. |
831855
|
[1] |
Fan
|
|
| 14. |
834646
|
[1] |
Pulley
|
|
| 15. |
831857
|
[1] |
Mounting kit
|
For alternator with cast alloy fan
|
| 16. |
841688
|
[1] |
Governor
|
(841381)
|
| 17. |
955243
|
[2] |
Hexagon screw
|
|
| 18. |
941905
|
[2] |
Spring washer
|
|
| 19. |
829311
|
[1] |
Tab
|
|
| 20. |
955899
|
[1] |
Washer
|
|
