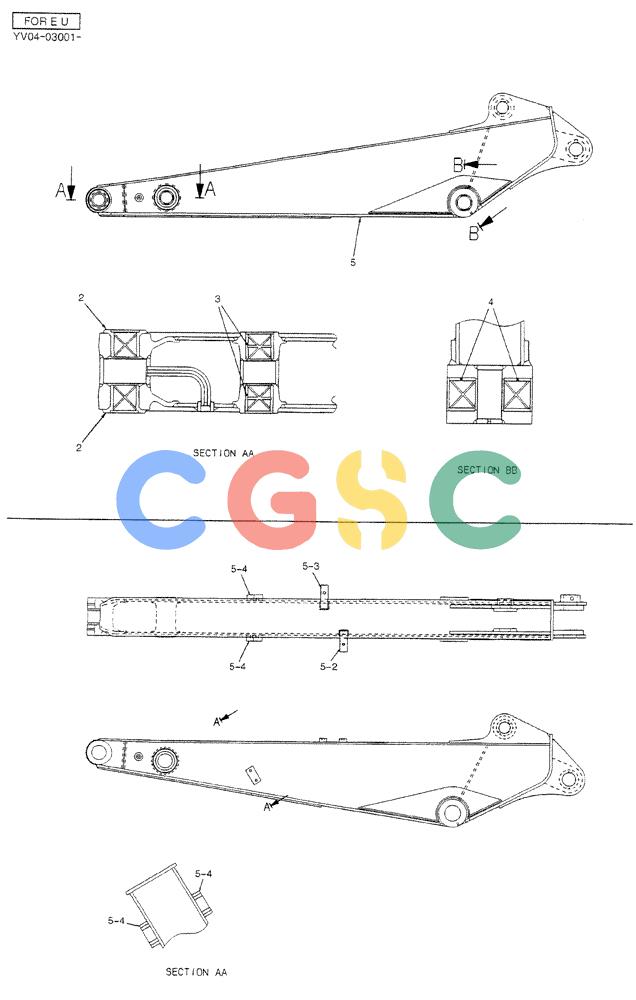

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-025) - ARM, SHORT 1.9M (BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
642 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV12B00112F2 | [1] | ARM ASSY,SHORT 1. 9M | |
| 2. | YV12B01068P1 | [2] | BUSHING | KOB Superseded by part number: YW12B01036P1 |
| 3. | YW12B01042P1 | [2] | BUSHING | KOB |
| 4. | YX12B01021P1 | [2] | BUSHING | KOB |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONARM, SHORT |
| 5-2. | 2416T13112 | [1] | BLOCK | KOB Superseded by part number: YY12B01319P1 |
| 5-3. | YV12B01070P1 | [1] | BLOCK | KOBBLOCK, TAPPED |
| 5-4. | YN43H01051P1 | [2] | BLOCK | KOB |
