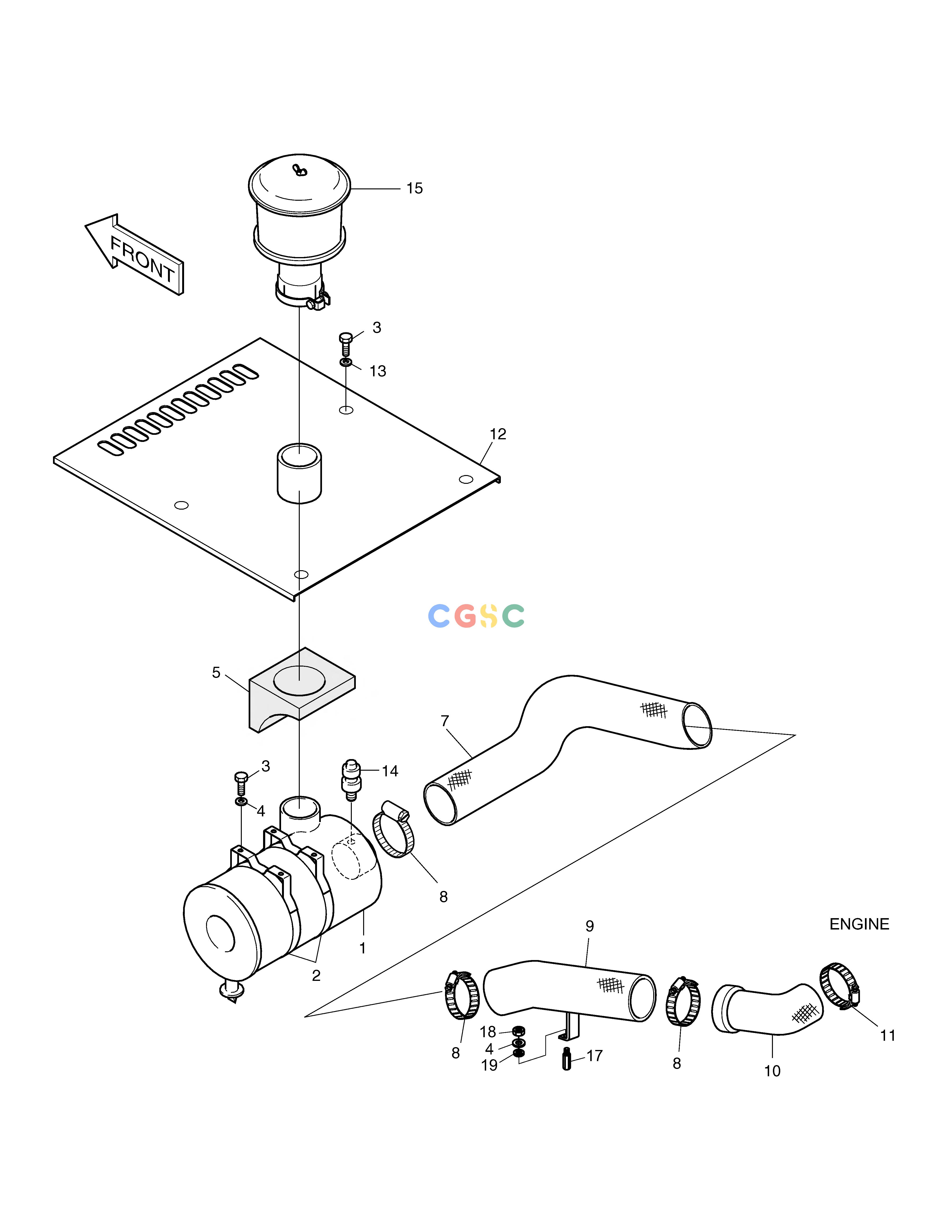

斗山零件查询AIR CLEANER ASS'Y-TURBO SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
155 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2204-2016B
|
[-] |
AIR CLEANER ASS'Y
|
|
| 1. |
2204-9039A
|
[1] |
CLEANER;AIR
|
|
| 10. |
2185-1671A
|
[1] |
HOSE;AIR
|
|
| 11. |
S8450082
|
[1] |
CLAMP;HOSE
|
|
| 12. |
2621-3575E
|
[1] |
COVER
|
|
| 13. |
2114-1058D10
|
[4] |
WASHER
|
|
| 14. |
2170-9005
|
[1] |
INDICATOR
|
|
| 15. |
K1017883
|
[1] |
PRE-CLEANER
|
|
| 17. |
2120-2165
|
[1] |
BOLT
|
|
| 18. |
S4012633
|
[1] |
NUT
|
|
| 19. |
S5102603
|
[1] |
. WASHER
|
|
| 1A. |
2474-9053A
|
[1] |
ELEMENT;OUTER
|
|
| 1B. |
2474-9054A
|
[1] |
ELEMENT;INNER
|
|
| 2. |
2124-1593A
|
[2] |
BAND;AIR CLEANER
|
|
| 3. |
S0512053
|
[8] |
BOLT
|
|
| 4. |
S5010613
|
[5] |
WASHER
|
|
| 5. |
2161-2152A
|
[1] |
SPONGE
|
|
| 7. |
2185-1672
|
[1] |
HOSE;AIR
|
|
| 8. |
S8450105
|
[3] |
CLAMP;HOSE
|
|
| 9. |
193-00800A
|
[1] |
PIPE;AIR
|
|
