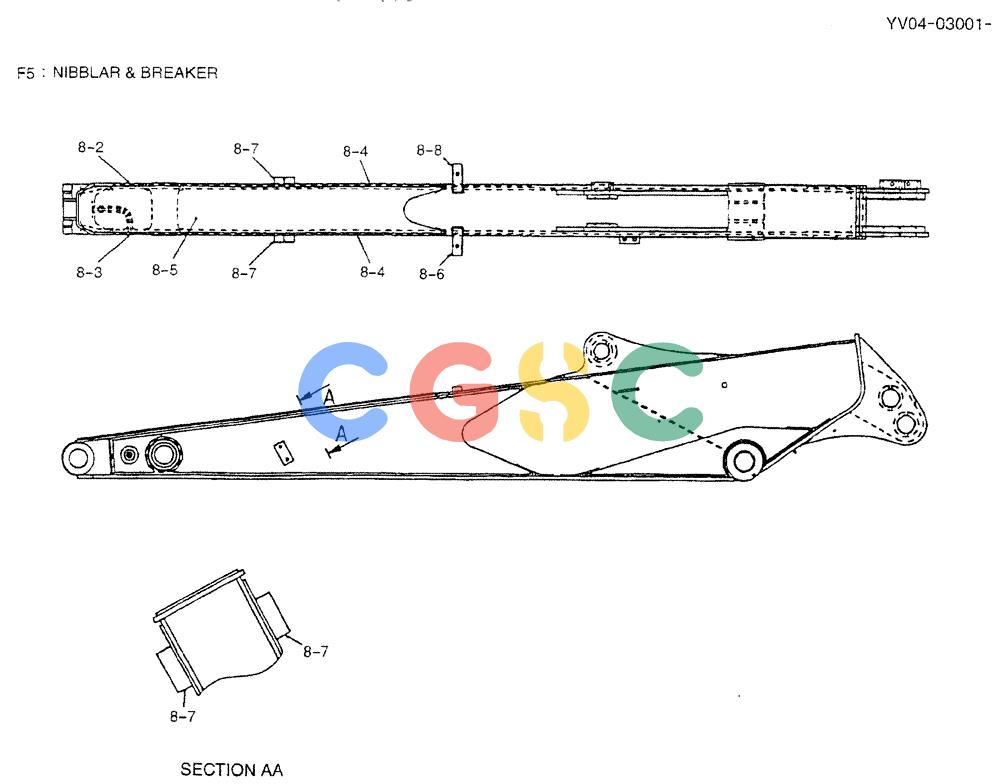

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-027[02]) - ARM, LONG 2.7M Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV12B00091F3 | [1] | ARM ASSY, LONG 2. 7M | |
| . . | YV12B00091F5 | [1] | ARM ASSY, LONG 2. 7M | |
| 2. | YV12B01068P1 | [2] | BUSHING | KOB Superseded by part number: YW12B01036P1 |
| 3. | YW12B01042P1 | [2] | BUSHING | KOB |
| 4. | YX12B01021P1 | [2] | BUSHING | KOB |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONARM, LONG (F3 ONLY) |
| 6-2. | 2416T9878D2 | [2] | BLOCK | KOB |
| 6-3. | 2416T9878D4 | [1] | BLOCK | KOBBLOCK, TAPPED |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONARM, LONG (F5 ONLY) |
| 8-2. | YV12B01002P1 | [1] | PLATE | KOB |
| 8-3. | YV12B01003P1 | [1] | PLATE | KOB |
| 8-4. | YV12B01011P1 | [2] | PLATE | KOB |
| 8-5. | YV12B01012P1 | [1] | PLATE | KOB |
| 8-6. | 2416T13112 | [1] | BLOCK | KOB Superseded by part number: YY12B01319P1 |
| 8-7. | YN43H01051P1 | [2] | BLOCK | KOB |
| 8-8. | YV12B01070P1 | [1] | BLOCK | KOBBLOCK, TAPPED |
