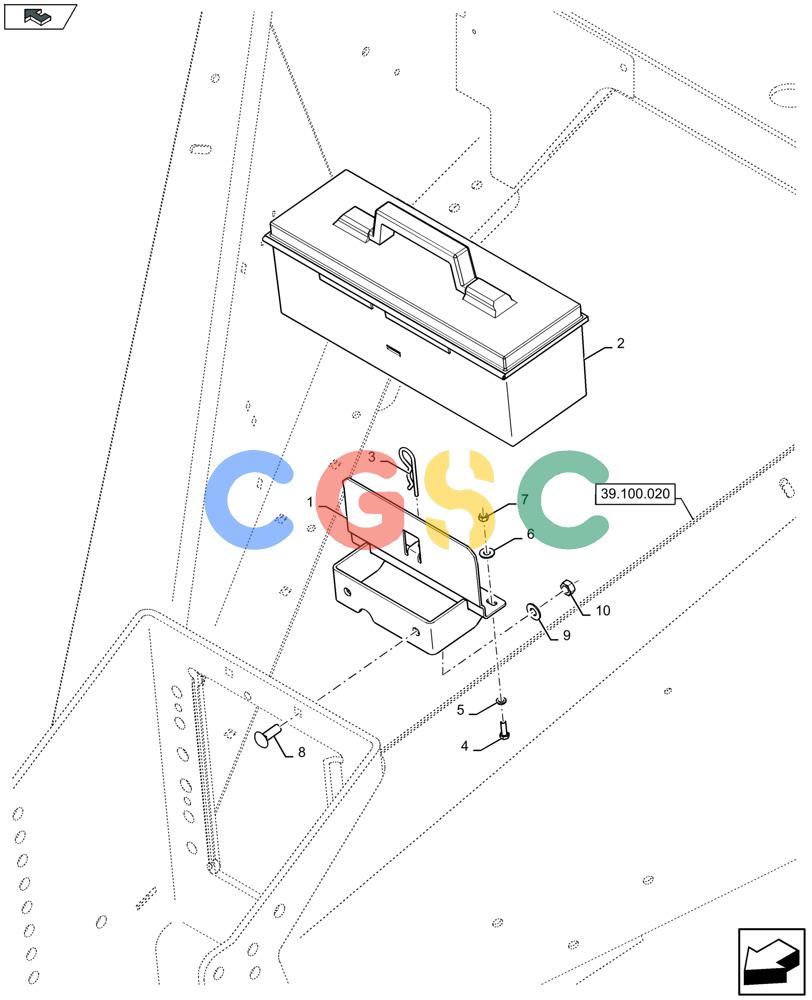

凯斯零件查询(LB324P) - BALER (9/12-) (05.102.031) - TOOLBOX - D085 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47425621
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C145
|
| 1. |
47936646
|
[1] |
SUPPORT
|
ZED
, Start Serial: D146
|
| 2. |
47450371
|
[1] |
TOOL BOX
|
ZED
|
| 3. |
437424
|
[1] |
COTTER PIN
|
GI
|
| 4. |
86505530
|
[2] |
BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd
|
FOR
, Serial Range: -C145
|
| 4. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
, Start Serial: D146
|
| 5. |
86588450
|
[2] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 6. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 7. |
86500688
|
[2] |
NUT,Hex, M6 x 1.0, Cl 10.9
|
WIN
, Serial Range: -C145
|
| 7. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
, Start Serial: D146 Superseded by part number: 86500688
|
| 8. |
86512446
|
[2] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 9. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 10. |
86500689
|
[2] |
NUT,M10 x 1.5, Cl 10
|
NH
, Serial Range: -C145
|
| 10. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
, Start Serial: D146
|
