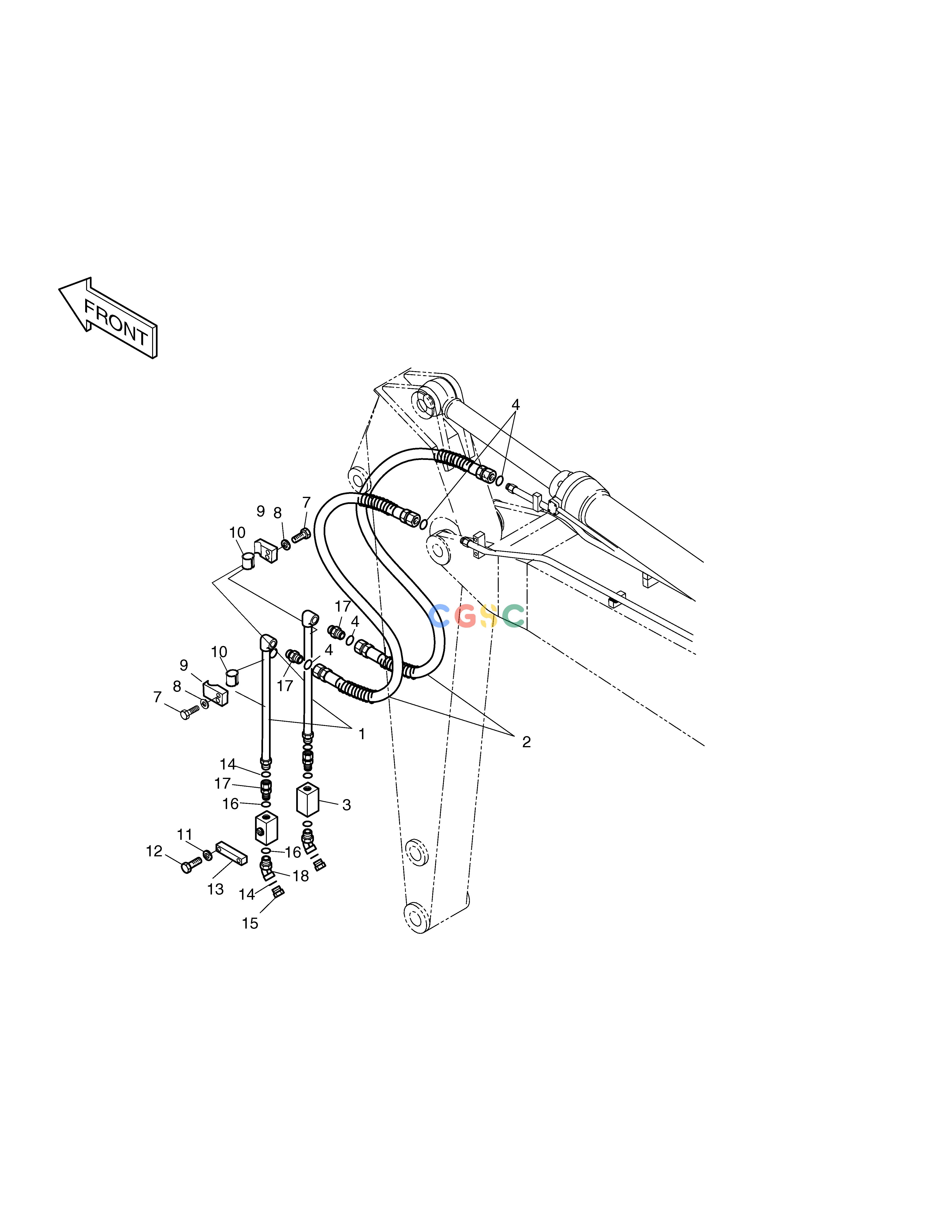

斗山零件查询ARM PIPING-BREAKER-ARM 2.9m SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01818
|
[-] |
ARM PIPING
|
|
| 1. |
140-02008
|
[2] |
PIPE
|
|
| 10. |
161-00281
|
[4] |
RUBBER
|
|
| 11. |
YS5102703
|
[4] |
WASHER;SPRING
|
|
| 12. |
S0561353
|
[4] |
BOLT M12X1.75X80
|
|
| 13. |
124-00178
|
[2] |
CLAMP;STOP VALVE
|
|
| 14. |
S8030161
|
[4] |
O-RING
|
|
| 15. |
2181-2820D5
|
[2] |
CAP(FOR KOREA)
|
|
| 16. |
S8000291
|
[4] |
O-RING
|
|
| 17. |
2181-2566D8
|
[2] |
ADAPTER;UNION
|
|
| 18. |
DS2332012
|
[2] |
ELBOW(FOR KOREA)
|
|
| 2. |
DS2013502
|
[2] |
HOSE
|
|
| 3. |
2420-9628A
|
[2] |
VALVE;STOP
|
|
| 4. |
S8030161
|
[4] |
O-RING
|
|
| 7. |
YS0562766
|
[8] |
BOLT
|
|
| 8. |
S5102803
|
[8] |
WASHER
|
|
| 9. |
124-00294
|
[8] |
CLAMP
|
|
