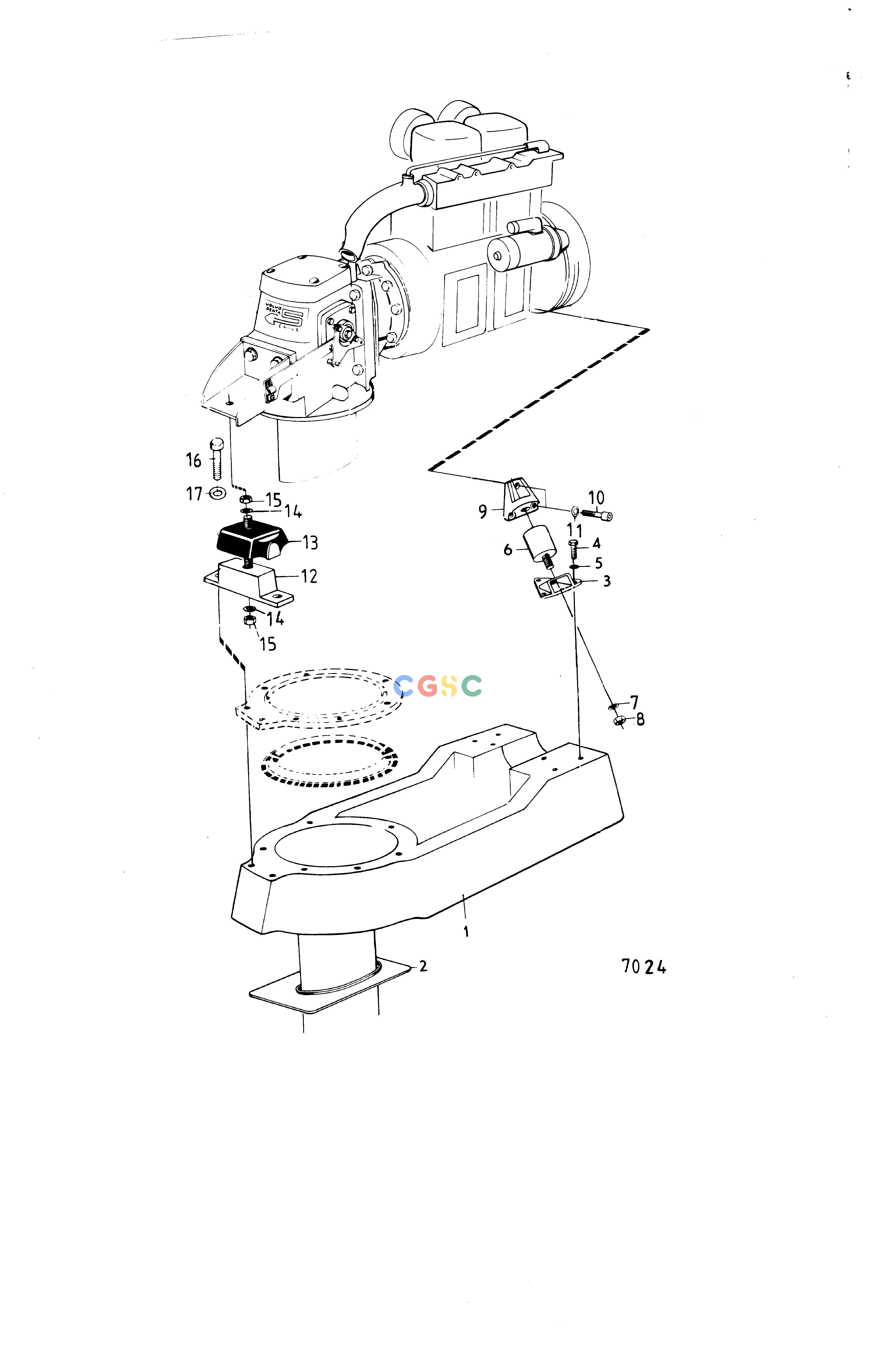

沃尔沃零件查询MD5A; MD5B; MD5CEngineEngine Suspension, Sail Boat Drive UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
495 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850895
|
[1] |
Engine bed
|
|
| 2. |
850353
|
[1] |
Cover plate
|
|
| 3. |
850468
|
[2] |
Bracket
|
|
| 4. |
963570
|
[6] |
Hexagon screw
|
MO-24581, L=40mm
|
| 4. |
963569
|
[6] |
Hexagon screw
|
MO 24582-, L=35mm
|
| 5. |
955894
|
[6] |
Washer
|
|
| 6. |
850347
|
[2] |
Rubber element
|
|
| 7. |
942336
|
[4] |
Spring washer
|
|
| 8. |
955783
|
[4] |
Hexagon nut
|
|
| 9. |
850398
|
[1] |
Engine bracket
|
S.B
|
| 9. |
850397
|
[1] |
Engine bracket
|
P
|
| 10. |
948331
|
[6] |
Screw
|
L=25mm
|
| 11. |
942336
|
[6] |
Spring washer
|
|
| 12. |
850338
|
[1] |
Bracket
|
|
| 13. |
850347
|
[1] |
Rubber element
|
|
| 14. |
942336
|
[2] |
Spring washer
|
|
| 15. |
955783
|
[2] |
Hexagon nut
|
|
| 16. |
955320
|
[2] |
Hexagon screw
|
|
| 17. |
942336
|
[2] |
Spring washer
|
|
