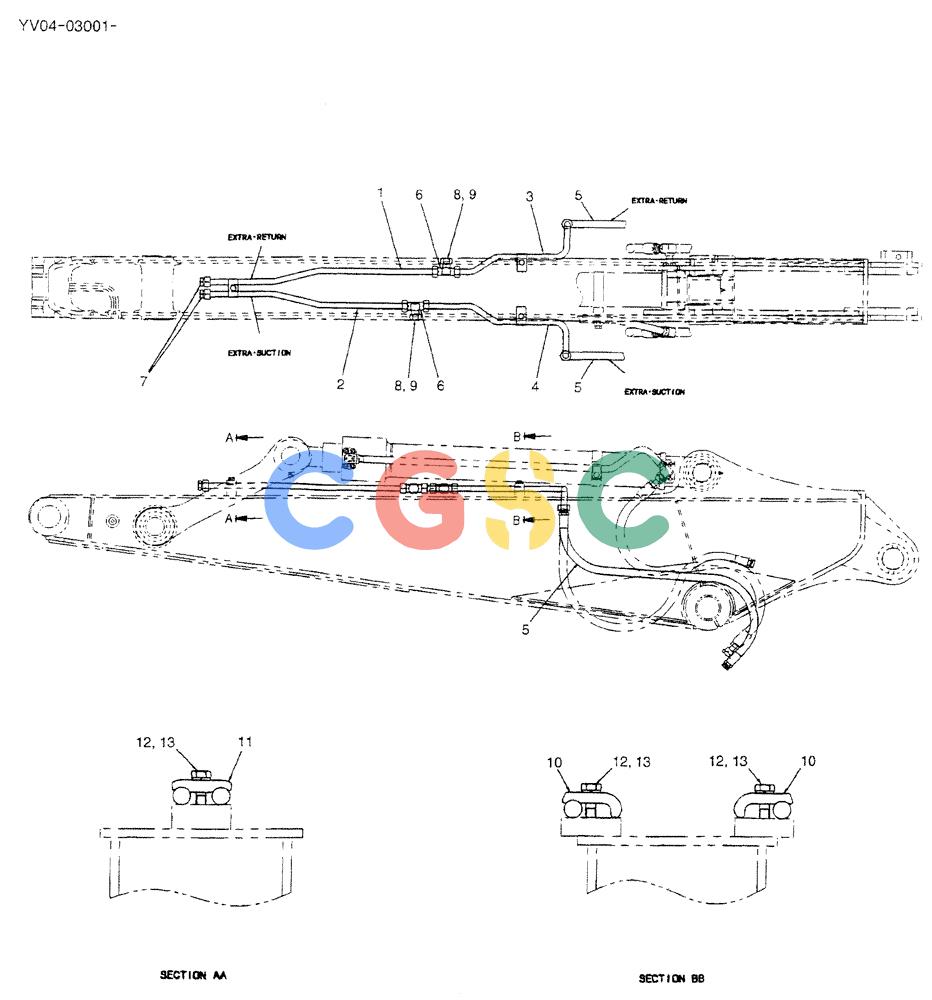

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-037) - HYD LINES, ARM 2.2M (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
923 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV43H00022F1 | [1] | HYD LINES, ARM 2.2M | |
| 1. | YV43H01036P1 | [1] | TUBE | KOB |
| 2. | YV43H01037P1 | [1] | TUBE | KOB |
| 3. | YV43H01038P1 | [1] | TUBE | KOB |
| 4. | YV43H01039P1 | [1] | TUBE | KOB |
| 5. | 2444R950D34 | [2] | FLEXIBLE HOSE | KOB |
| 6. | ZA53B18000 | [2] | TEE | KOB |
| 7. | ZA82P18000 | [2] | PLUG | KOB |
| 8. | ZA83P18000 | [2] | PLUG | KOB |
| 9. | ZA93N18000 | [2] | NUT | KOB |
| 10. | ZC26X18011 | [2] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 11. | ZC36X18011 | [1] | CLAMP | KOB |
| 12. | ZS18C10045 | [3] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 13. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
