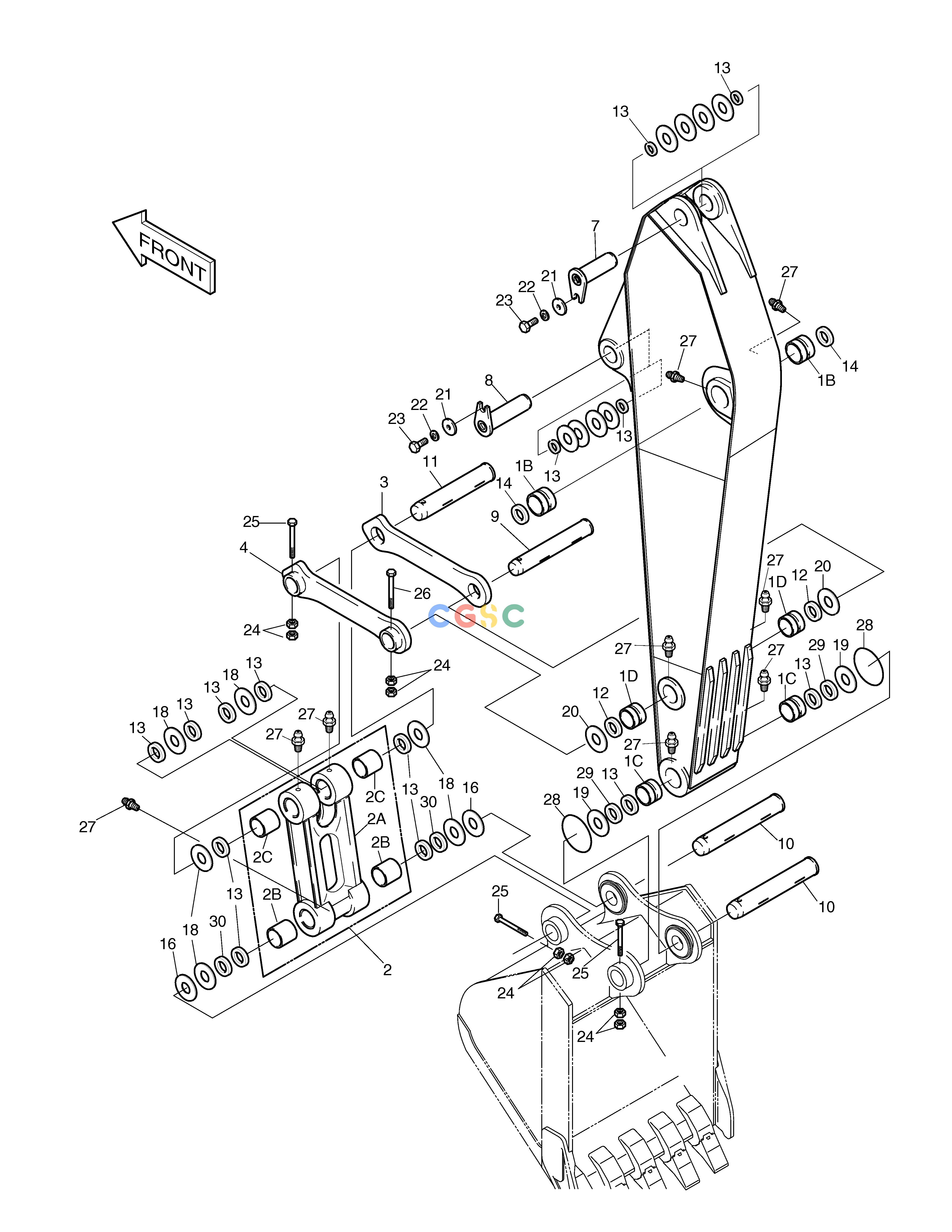

斗山零件查询ARM-3.5m SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2701-1467
|
[1] |
ARM ASS'Y-3.5m
|
|
| 1. |
2701-1468K
|
[1] |
ARM ASS'Y-3.5m
|
|
| 10. |
2123-2192C
|
[1] |
PIN
|
|
| 11. |
2123-2193B
|
[1] |
PIN
|
|
| 12. |
2180-1106BD4
|
[2] |
SEAL;DUST
|
|
| 13. |
2180-1106BD24
|
[16] |
SEAL;DUST
|
|
| 14. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 16. |
2114-1059D118
|
[2] |
SHIM
|
|
| 18. |
2114-1059D63
|
[4] |
SHIM
|
|
| 19. |
2114-1059D175
|
[2] |
SHIM
|
|
| 1B. |
2110-1316A
|
[2] |
. BUSHING
|
|
| 1C. |
110-00064
|
[2] |
. BUSHING
|
|
| 1D. |
2110-1318A
|
[2] |
BUSHING
|
|
| 2. |
2155-1335G
|
[1] |
LINK ASS'Y;PUSH
|
|
| 20. |
2114-1059D122
|
[2] |
SHIM
|
|
| 21. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 22. |
S0521366
|
[2] |
BOLT
|
|
| 23. |
S5102903
|
[2] |
WASHER
|
|
| 24. |
S4012933
|
[8] |
NUT
|
|
| 25. |
S0566966
|
[3] |
BOLT
|
|
| 26. |
S0566866
|
[1] |
BOLT
|
|
| 27. |
S6710041
|
[9] |
NIPPLE,GREASE
|
|
| 28. |
180-00077D5
|
[2] |
O-RING
|
|
| 29. |
2114-1997B
|
[2] |
SPACER
|
|
| 2A. |
NA00588
|
[1] |
|
|
| 2B. |
2110-1228B
|
[2] |
BUSHING
|
|
| 2C. |
2110-1360A
|
[2] |
BUSHING
|
|
| 3. |
2155-1299B
|
[1] |
LINK;GUIDE(R.H)
|
|
| 30. |
2114-1998B
|
[2] |
SPACER
|
|
| 4. |
2155-1300B
|
[1] |
LINK;GUIDE(L.H)
|
|
| 7. |
2123-2187C
|
[1] |
PIN
|
|
| 8. |
2123-2182C
|
[1] |
PIN
|
|
| 9. |
2123-2191B
|
[1] |
PIN
|
|
