斗山零件查询BOOM PIPING-8.5M SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2044
|
[-] |

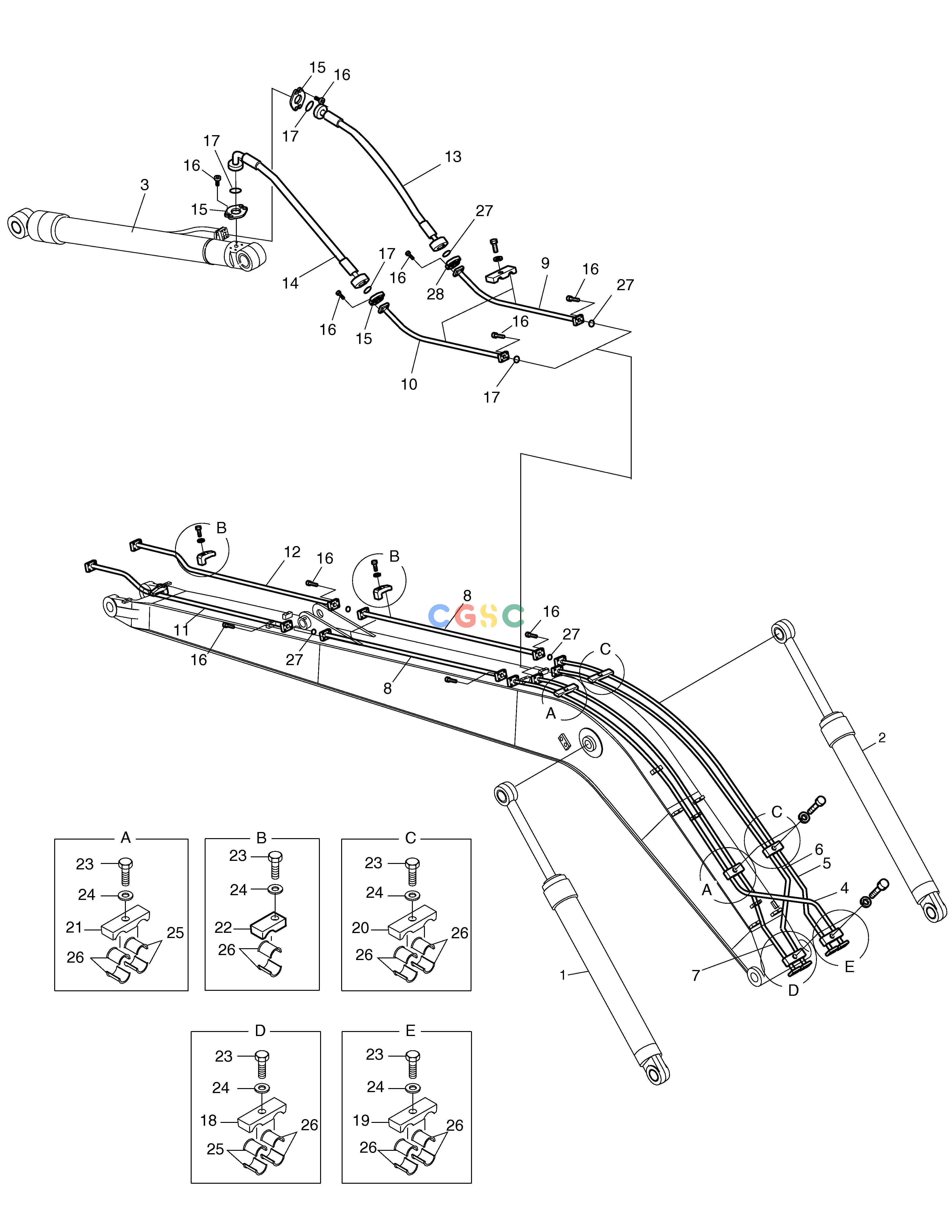

BOOM PIPING-8.5m
|
|
| 1. |
2440-9234A
|
[1] |
CYLINDER;BOOM(L.H.)
|
|
| 10. |
2140-1572
|
[1] |
PIPE
|
|
| 11. |
2140-1564
|
[1] |
PIPE
|
|
| 12. |
2140-1565
|
[1] |
PIPE
|
|
| 13. |
2184-1081D120
|
[1] |
HOSE PF3/4-1170L
|
|
| 14. |
2184-1100D129
|
[1] |
HOSE
|
|
| 15. |
2181-9078
|
[6] |
FLANGE;SPLIT
|
|
| 16. |
S2212361
|
[40] |
BOLT;SOCKET M10X1.5X35
|
|
| 17. |
2180-1026D19
|
[4] |
O-RING
|
|
| 18. |
2124-1597
|
[1] |
CLAMP;PIPE
|
|
| 19. |
2124-1598
|
[1] |
CLAMP;PIPE
|
|
| 2. |
2440-9235A
|
[1] |
CYLINDER;BOOM(R.H.)
|
|
| 20. |
2124Y1599-B
|
[3] |
CLAMP;PIPE
|
|
| 21. |
2124Y1600A-B
|
[3] |
CLAMP;PIPE
|
|
| 22. |
2124Y1601A-B
|
[4] |
CLAMP;PIPE
|
|
| 23. |
S0560853
|
[12] |
BOLT M12X1.75X55
|
|
| 24. |
S5102703
|
[12] |
WASHER
|
|
| 25. |
2161-2251A
|
[8] |
RUBBER
|
|
| 26. |
2161-2250A
|
[32] |
RUBBER
|
|
| 27. |
2180-1026D2
|
[6] |
O-RING
|
|
| 28. |
181-00095
|
[2] |
FLANGE
|
|
| 3. |
2440-9236B
|
[1] |
CYLINDER;ARM
|
|
| 4. |
2140-1558
|
[1] |
PIPE
|
|
| 5. |
2140-1559
|
[1] |
PIPE
|
|
| 6. |
2140-1560
|
[1] |
PIPE
|
|
| 7. |
2140-1561
|
[1] |
PIPE
|
|
| 8. |
2140-1562
|
[2] |
PIPE
|
|
| 9. |
2140-1563
|
[1] |
PIPE
|
|
