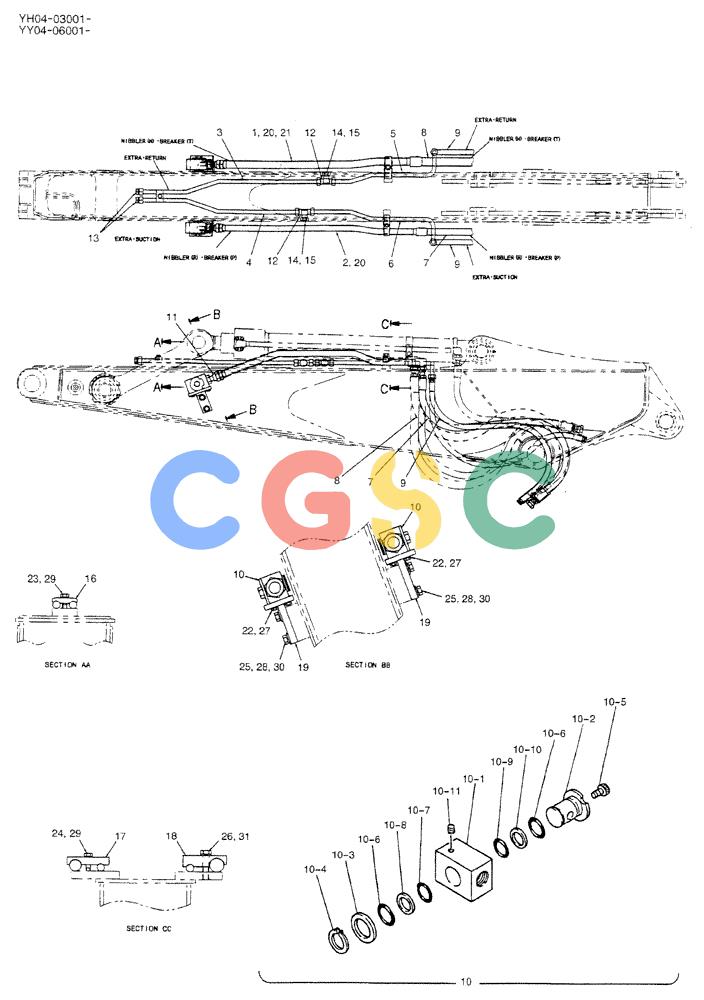

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-040) - HYD LINES, ARM 2.45M (EXTRA, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
662 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY43H00060F1 | [1] | HYD LINES, ARM 2. 45M | |
| 1. | YY43H01135P1 | [1] | TUBE | KOB |
| 2. | YY43H01045P1 | [1] | TUBE | KOB |
| 3. | YY43H01046P1 | [1] | TUBE | KOB |
| 4. | YY43H01047P1 | [1] | TUBE | KOB |
| 5. | YY43H01048P1 | [1] | RIGID TUBE | KOB |
| 6. | YY43H01049P1 | [1] | RIGID TUBE | KOB |
| 7. | ZX50H12130 | [1] | HOSE | KOB |
| 8. | ZX50H16140 | [1] | HOSE,25.4mm ID x 1400mm L | KOB1400mm Long (55-1/8 in) |
| 9. | 2444R950D18 | [2] | HOSE | KOB |
| 10. | 24100P1006F1 | [2] | VALVE | KOB Superseded by part number: 24100P1006F2 |
| 10-1. | 2436P230 | [1] | VALVE BODY | KOB |
| 10-2. | 2436T304 | [1] | VALVE | KOB |
| 10-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 10-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 10-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 10-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 10-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 10-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 10-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 10-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 10-11. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 11. | HG23H12012G1 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 12. | ZA53B18000 | [2] | TEE | KOB |
| 13. | ZA82P18000 | [2] | PLUG | KOB |
| 14. | ZA83P18000 | [2] | PLUG | KOB |
| 15. | ZA93N18000 | [2] | NUT | KOB |
| 16. | ZC36X18011 | [1] | CLAMP | KOB |
| 17. | 2432T3855 | [1] | CLAMP | KOB |
| 18. | YY43H01136P1 | [1] | CLAMP | KOB |
| 19. | YW43H01044P1 | [2] | BRACKET | KOB |
| 20. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 21. | ZD12A02100 | [1] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 22. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 23. | ZS18C10045 | [1] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 24. | ZS18C10055 | [1] | SCREW,Hex, M10 x 55mm | KOBM10x1.50x55mm |
| 25. | ZS18C12045 | [4] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 26. | ZS18C14065 | [1] | SCREW,Hex, M14 x 65mm | KOBM14x2.0x65mm |
| 27. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 28. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 29. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 30. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 31. | ZW26X14000 | [1] | WASHER | KOBID 14 x OD 24.5 x Th 3.5mm |
