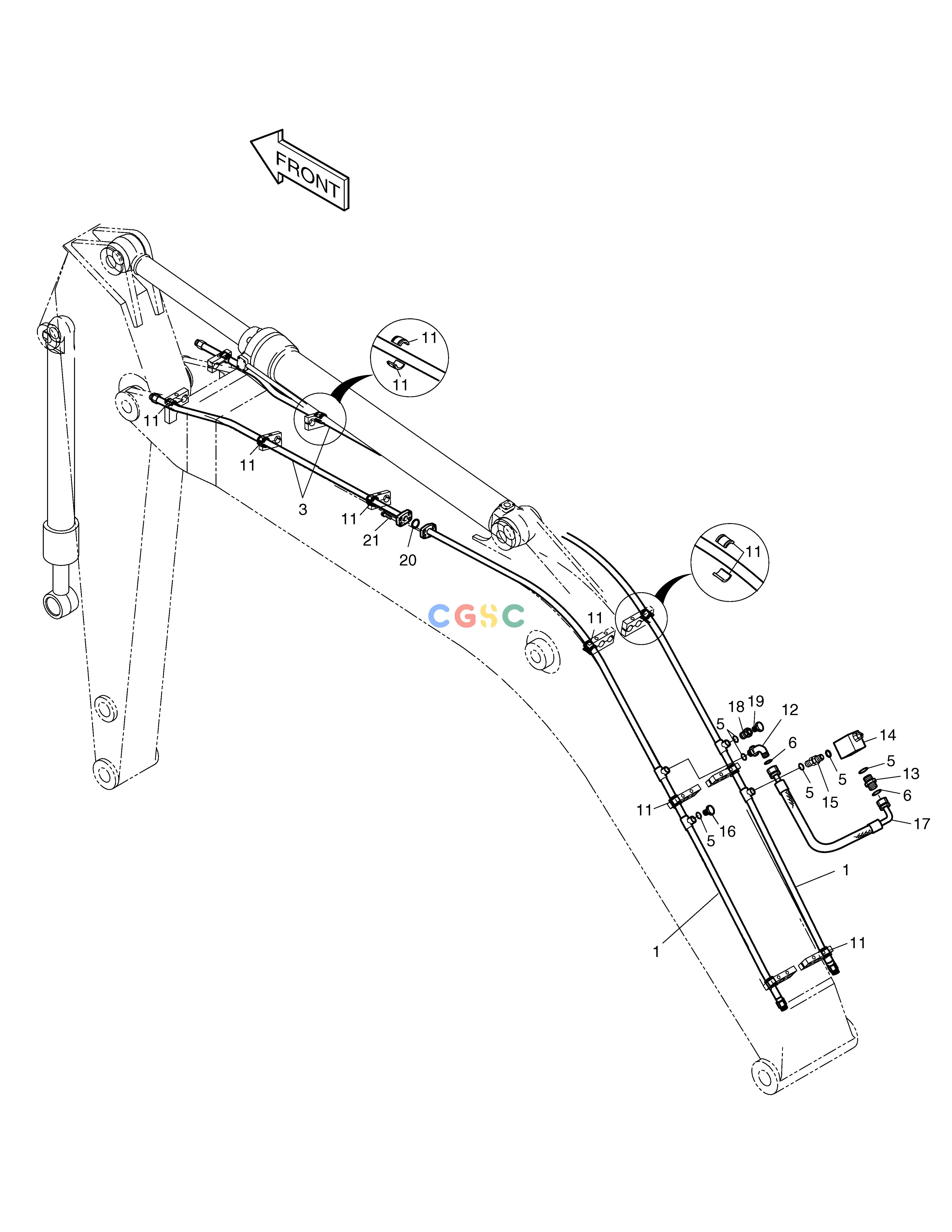

斗山零件查询BOOM PIPING-ONE WAY SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2131
|
[-] |
BOOM PIPING-ONE WAY
|
|
| 1. |
140-00690
|
[2] |
PIPE;OPTION
|
|
| 11. |
2161-2251A
|
[24] |
RUBBER
|
|
| 12. |
2181-2815D1
|
[1] |
ELBOW
|
|
| 13. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 14. |
2420-9627B
|
[1] |
VALVE;RELIEF
|
|
| 15. |
2181-2818
|
[1] |
ADAPTER
|
|
| 16. |
2181-1950D9
|
[1] |
PLUG
|
|
| 17. |
2184-1197D87
|
[1] |
HOSE
|
|
| 18. |
2181-2201D7
|
[1] |
ADAPTER
|
|
| 19. |
2181-2047
|
[1] |
PLUG
|
|
| 20. |
2180-1026D19
|
[2] |
O-RING
|
|
| 21. |
S2212466
|
[8] |
BOLT
|
|
| 3. |
140-00691
|
[2] |
PIPE
|
|
| 5. |
S8000291
|
[6] |
O-RING
|
|
| 6. |
S8030161
|
[2] |
O-RING
|
|
