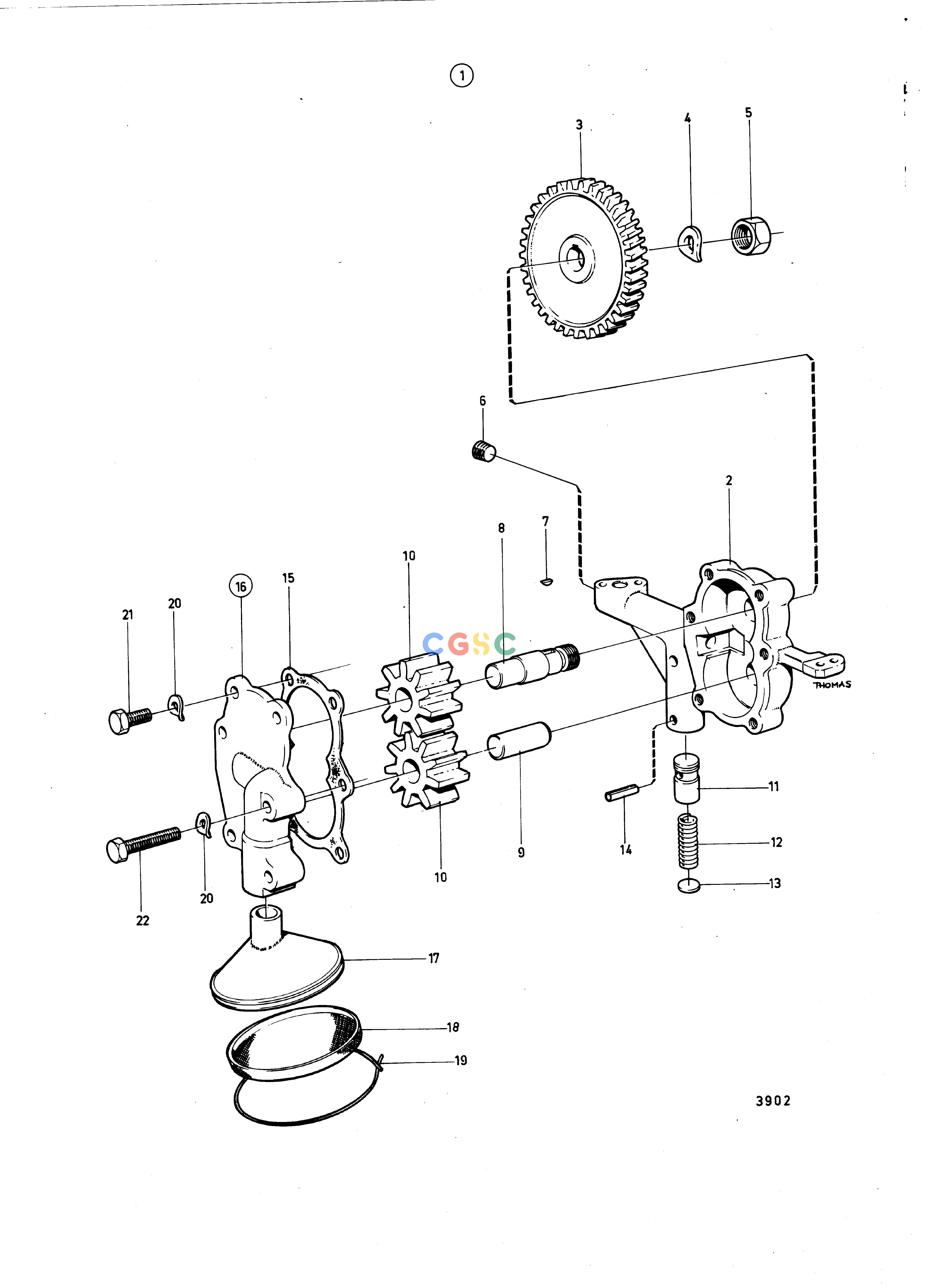

沃尔沃零件查询MD5A; MD5B; MD5CEngineOil PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
942 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838116
|
[1] |
Oil pump
|
|
| 2. |
|
|
|
|
| 3. |
838039
|
[1] |
Gear
|
|
| 4. |
940280
|
[1] |
Spring washer
|
|
| 5. |
946034
|
[1] |
Lock nut
|
|
| 6. |
807045
|
[1] |
Plug
|
|
| 7. |
910111
|
[1] |
Woodruff key
|
|
| 8. |
838057
|
[1] |
Shaft
|
|
| 9. |
838054
|
[1] |
Shaft
|
|
| 10. |
838049
|
[2] |
Gear
|
|
| 11. |
403125
|
[1] |
Piston
|
|
| 12. |
403126
|
[1] |
Compression spring
|
|
| 13. |
838063
|
[1] |
Disc
|
|
| 14. |
951955
|
[1] |
Spring pin
|
|
| 15. |
838074
|
[1] |
Gasket
|
|
| 16. |
838118
|
[1] |
Cover
|
|
| 17. |
|
|
|
|
| 18. |
838097
|
[1] |
Wire gauze
|
|
| 19. |
941338
|
[1] |
Locking wire
|
L=250mm
|
| 20. |
941906
|
[6] |
Spring washer
|
|
| 21. |
955270
|
[4] |
Hexagon screw
|
|
| 22. |
955275
|
[2] |
Hexagon screw
|
|
