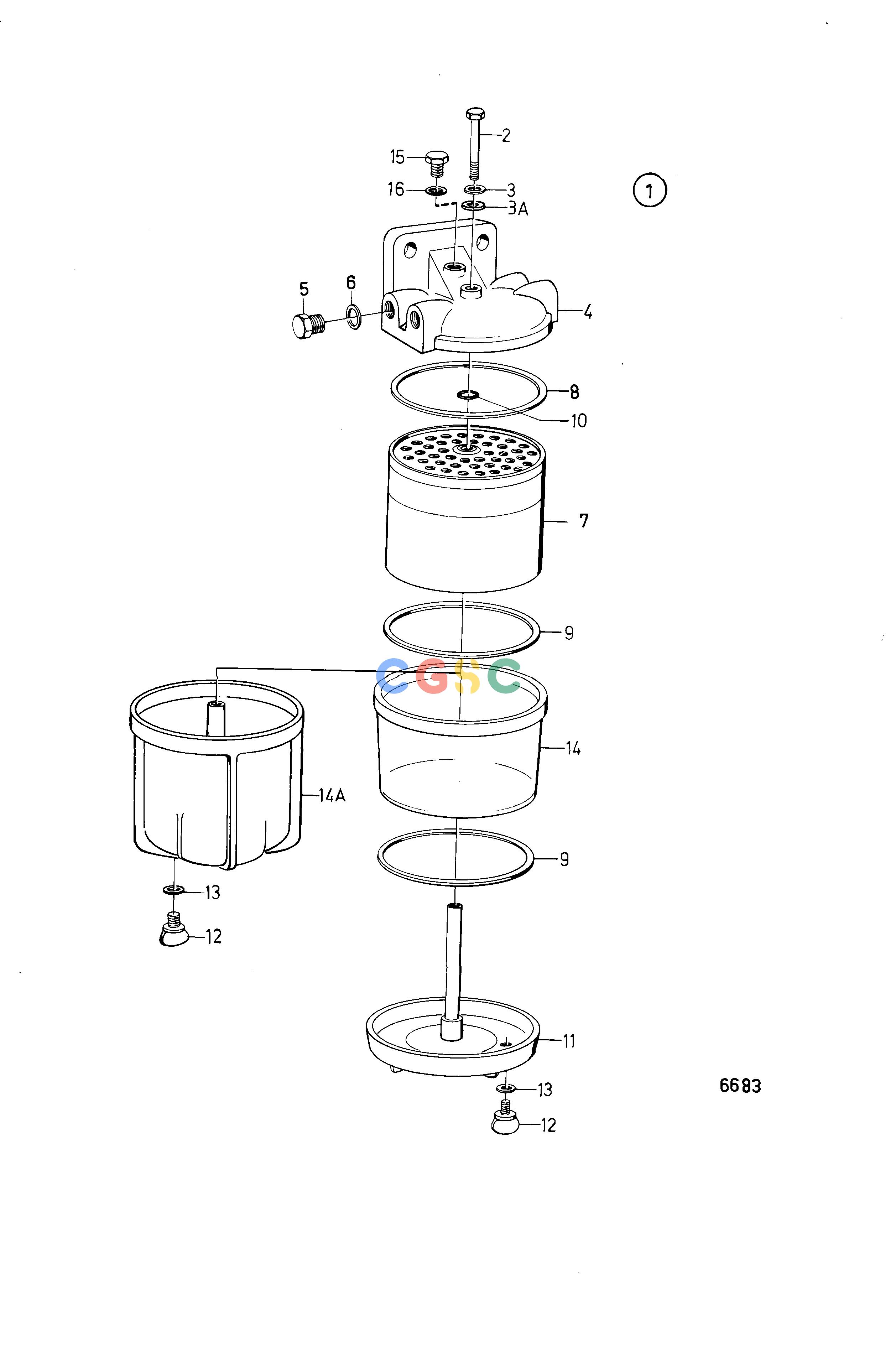

沃尔沃零件查询MD5A; MD5B; MD5CFuel SystemFuel Filter: 829764EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
823 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829764
|
[1] |
Fuel filter
|
|
| 2. |
6648590
|
[1] |
Centre bolt
|
|
| 3. |
6648589
|
[1] |
Washer
|
|
| 3A. |
236570
|
[1] |
O-ring
|
|
| 4. |
|
|
|
|
| 5. |
242359
|
[2] |
Plug
|
|
| 6. |
242360
|
[2] |
Washer
|
|
| 7. |
236628
|
[1] |
Filter insert
|
|
| 8. |
1695001
|
[1] |
Sealing ring
|
|
| 9. |
1695000
|
[1] |
Sealing ring
|
(236633)
|
| 10. |
236629
|
[1] |
Rubber ring
|
|
| 12. |
826648
|
[1] |
Plug
|
|
| 13. |
6643249
|
[1] |
Gasket
|
(242610)
|
| 14A. |
|
|
|
|
| 15. |
180723
|
[1] |
Screw
|
|
| 16. |
957173
|
[1] |
Gasket
|
|
