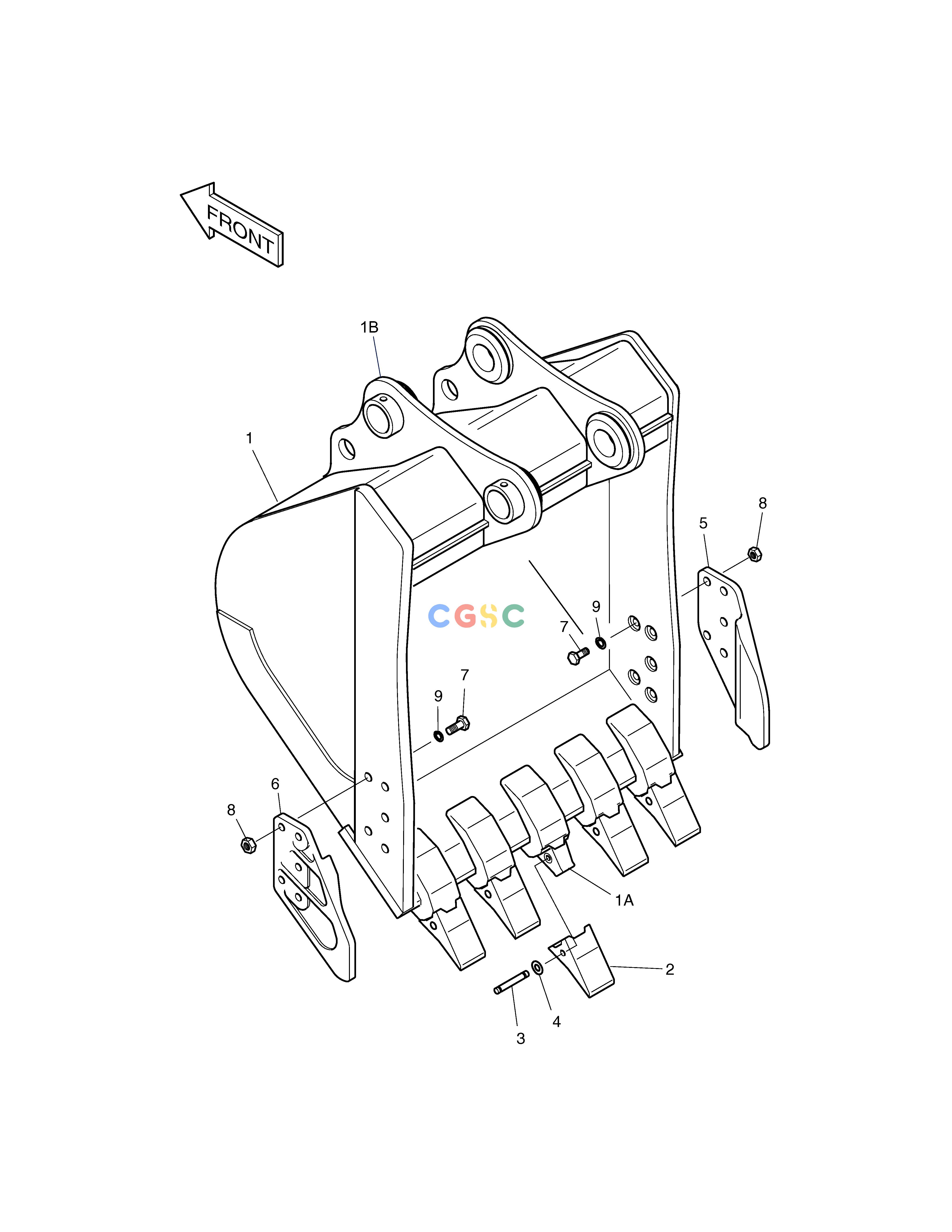

斗山零件查询BUCKET ASS'Y-0.8З㎥ SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
423 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
704Y00413A-B
|
[1] |
BUCKET ASS'Y-0.8З㎥
|
|
| 1. |
704-00414
|
[1] |
BUCKET-0.8З㎥
|
|
| 1A. |
2713-1218
|
[5] |
ADAPTER;TOOTH
|
|
| 1B. |
2116-1475D32
|
[2] |
STOPPER
|
|
| 2. |
2713-1217
|
[5] |
POINT;TOOTH
|
|
| 3. |
2705-1020
|
[5] |
. PIN,LOCKING
|
|
| 4. |
2114-1848A
|
[5] |
. WASHER,LOCKING
|
|
| 5. |
2713-1059A
|
[1] |
. CUTTER;SIDE(R.H)
|
|
| 6. |
2713-1060A
|
[1] |
. CUTTER;SIDE(L.H)
|
|
| 7. |
S0574761
|
[10] |
BOLT M24X3.0X70
|
|
| 8. |
S4013333
|
[10] |
. NUT
|
|
| 9. |
2114-1831
|
[10] |
WASHER;HARDEN
|
|
