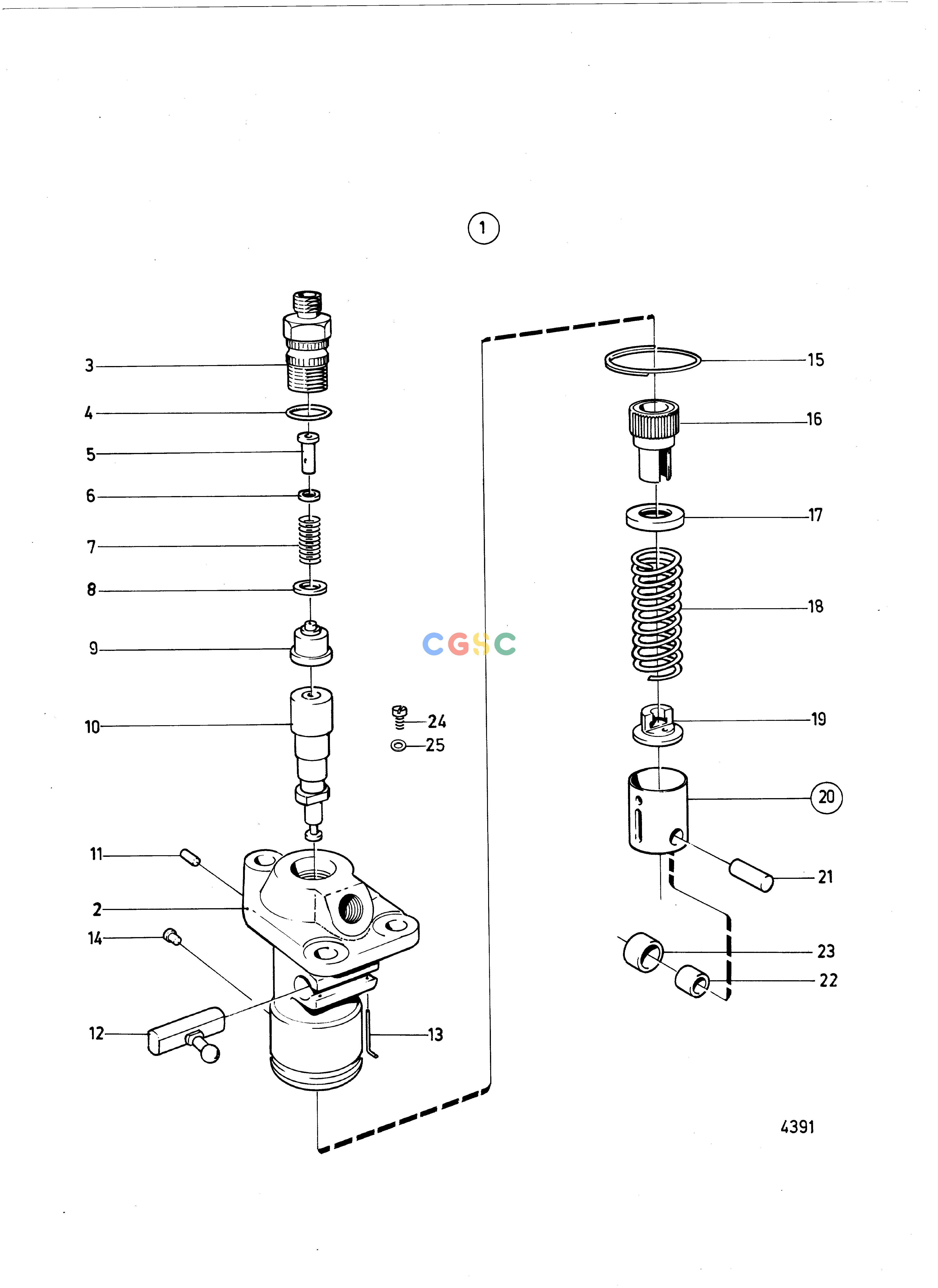

沃尔沃零件查询MD5A; MD5B; MD5CFuel SystemFuel Injection Pump: 838150EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838150
|
[1] |
Injection pump
|
|
| 2. |
|
|
|
|
| 3. |
243420
|
[1] |
Retainer
|
|
| 4. |
239989
|
[1] |
O-ring
|
|
| 5. |
870576
|
[1] |
Filling-in plug
|
|
| 6. |
238312
|
[1] |
Shim
|
TH=0.3mm
|
| 6. |
241734
|
[1] |
Adjusting washer
|
TH=0.5mm
|
| 6. |
238314
|
[1] |
Adjusting washer
|
TH=1.0mm
|
| 7. |
238309
|
[1] |
Compression spring
|
|
| 8. |
870581
|
[1] |
Gasket
|
|
| 9. |
838237
|
[1] |
Delivery valve
|
|
| 10. |
838230
|
[1] |
Pump element
|
|
| 11. |
243423
|
[1] |
Pin
|
|
| 12. |
838232
|
[1] |
Rod
|
|
| 13. |
243422
|
[2] |
Pin
|
|
| 14. |
870007
|
[1] |
Lock bolt
|
|
| 15. |
243415
|
[1] |
Lock ring
|
|
| 16. |
243417
|
[1] |
Sleeve
|
D=18,70mm
|
| 16. |
243418
|
[1] |
Sleeve
|
Alt, D=18,85mm
|
| 17. |
870023
|
[1] |
Spring disc
|
|
| 18. |
870022
|
[1] |
Piston spring
|
|
| 19. |
870788
|
[1] |
Washer
|
|
| 20. |
870796
|
[1] |
Cam follower
|
|
| 21. |
870004
|
[1] |
Bearing bolt
|
|
| 22. |
870789
|
[1] |
Bushing
|
|
| 23. |
243206
|
[1] |
Roller
|
Std D=15,00mm
|
| 23. |
243193
|
[1] |
Roller
|
Alt, D=14,04mm
|
| 23. |
243194
|
[1] |
Roller
|
Alt, D=14,16mm
|
| 23. |
243195
|
[1] |
Roller
|
Alt, D=14,28mm
|
| 23. |
243196
|
[1] |
Roller
|
Alt, D=14,4mm
|
| 23. |
243197
|
[1] |
Roller
|
Alt, D=14,52mm
|
| 23. |
243198
|
[1] |
Roller
|
Alt, D=14,64mm
|
| 23. |
243199
|
[1] |
Roller
|
Alt, D=14,76mm
|
| 23. |
243200
|
[1] |
Roller
|
Alt, D=14,88mm
|
| 23. |
243201
|
[1] |
Roller
|
Alt, D=15,12mm
|
| 23. |
243202
|
[1] |
Roller
|
Alt, D=15,24mm
|
| 23. |
243203
|
[1] |
Roller
|
Alt, D=15,36mm
|
| 24. |
240664
|
[1] |
Bleeder screw
|
(76655) MO 3809-
|
| 25. |
25534
|
[1] |
Gasket
|
MO 3809-
|
