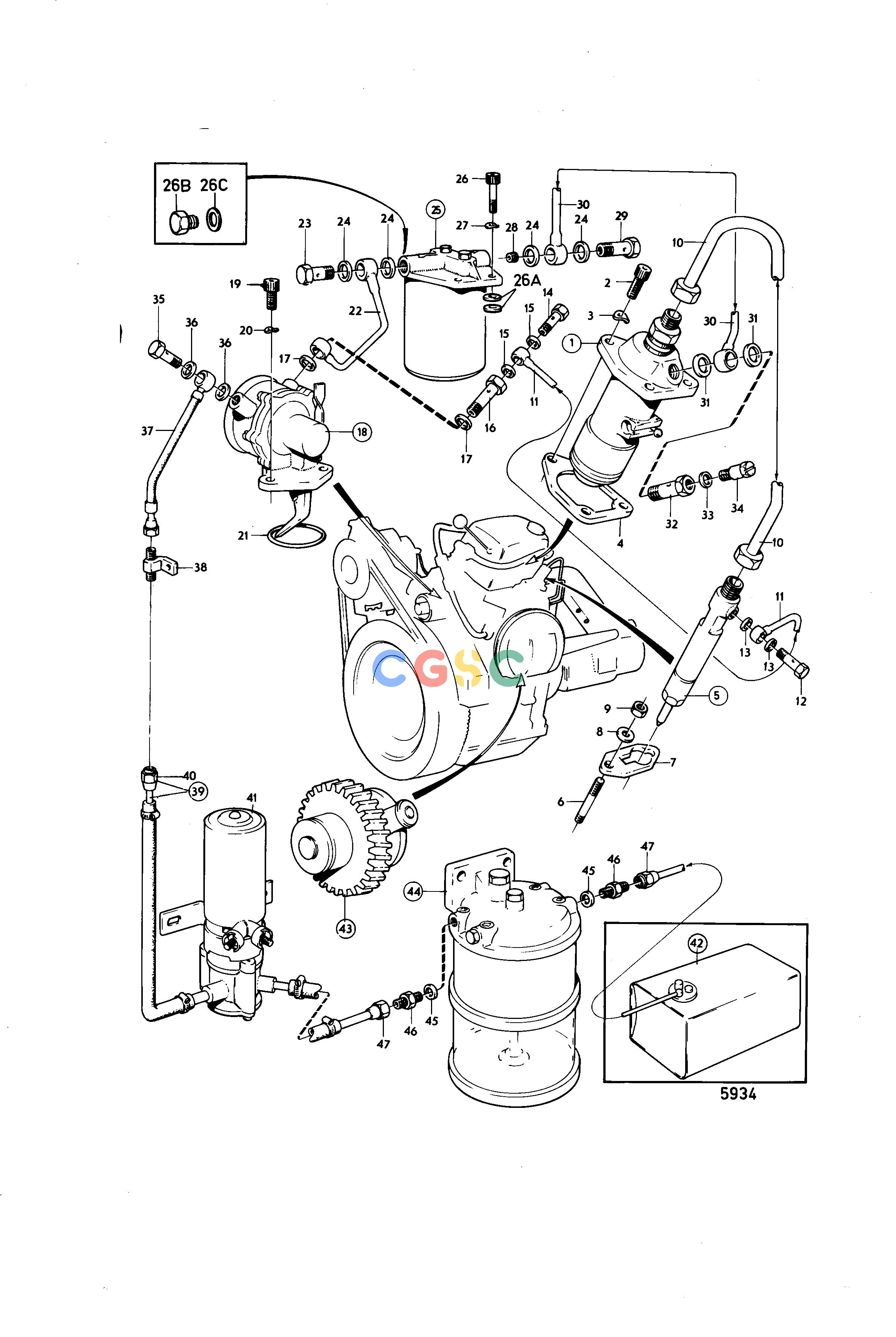

沃尔沃零件查询MD5A; MD5B; MD5CFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
523 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838150
|
[1] |
Injection pump
|
|
| 2. |
959220
|
[3] |
Hex. socket screw
|
|
| 3. |
941907
|
[3] |
Spring washer
|
|
| 4. |
803520
|
[1] |
Gasket
|
TH=0.2mm
|
| 5. |
838153
|
[1] |
Injector
|
Replaced by 838289.
|
| 5. |
838289
|
[1] |
Injector
|
|
| 5. |
3803230
|
[1] |
Injector
|
|
| 6. |
838067
|
[2] |
Stud
|
See group 2A
|
| 7. |
3875742
|
[3] |
Yoke
|
|
| 8. |
192287
|
[2] |
Washer
|
|
| 9. |
946035
|
[2] |
Lock nut
|
|
| 10. |
838122
|
[1] |
Delivery pipe
|
|
| 11. |
838159
|
[1] |
Leak-off pipe
|
|
| 12. |
243487
|
[1] |
Hollow screw
|
Included in 838153.
|
| 13. |
190990
|
[2] |
Gasket
|
Included in 838153.
|
| 14. |
74033
|
[1] |
Hollow screw
|
|
| 15. |
957171
|
[2] |
Gasket
|
|
| 16. |
16496
|
[1] |
Hollow screw
|
|
| 17. |
957178
|
[2] |
Gasket
|
|
| 18. |
833323
|
[1] |
Fuel pump
|
|
| 19. |
942001
|
[2] |
Hex. socket screw
|
|
| 20. |
941906
|
[2] |
Spring washer
|
|
| 21. |
942353
|
[1] |
O-ring
|
|
| 22. |
838149
|
[1] |
Tube
|
|
| 23. |
25167
|
[1] |
Hollow screw
|
|
| 24. |
957178
|
[4] |
Gasket
|
|
| 25. |
803323
|
[1] |
Fuel filter
|
Spec 867452 MO-22578. spec 8673398MO-19950. spec 867539 MO-20837, Replaced by 829912
|
| 25. |
840532
|
[1] |
Fuel filter
|
|
| 26. |
959238
|
[2] |
Hex. socket screw
|
|
| 26. |
959239
|
[2] |
Hex. socket screw
|
Spec 867452 MO 22579-. spec 867339 MO 19951-. spec 867539 MO 20838-., L=30mm
|
| 26A. |
840210
|
[4] |
Washer
|
Spec 867452 MO 22579-. spec 867339 MO 19951-. spec 867539 MO 20838-.
|
| 26B. |
960630
|
[2] |
Plug
|
Spec 867452 MO 22579-. spec 867339 MO 19951-. spec 867539 MO 20838-.
|
| 26C. |
957178
|
[2] |
Gasket
|
Spec 867452 MO 22579-. spec 867339 MO 19951-. spec 867539 MO 20838-.
|
| 27. |
941908
|
[2] |
Spring washer
|
|
| 28. |
807059
|
[1] |
Nozzle
|
|
| 29. |
807058
|
[1] |
Hollow screw
|
|
| 30. |
838208
|
[1] |
Fuel hose
|
|
| 31. |
11994
|
[2] |
Gasket
|
|
| 32. |
803658
|
[1] |
Hollow screw
|
|
| 33. |
11991
|
[1] |
Gasket
|
|
| 34. |
240664
|
[1] |
Bleeder screw
|
(233017)
|
| 35. |
25167
|
[1] |
Hollow screw
|
|
| 36. |
957178
|
[2] |
Gasket
|
|
| 37. |
840263
|
[1] |
Fuel hose
|
(838205) repl by 840263
|
| 38. |
833922
|
[1] |
Joint nipple
|
|
| 39. |
829744
|
[1] |
Hose connection
|
|
| 40. |
807061
|
[1] |
Cap nut
|
|
| 41. |
833454
|
[1] |
Fuel pump
|
See group 9
|
| 42. |
|
|
|
23 l, see group 9
|
| 43. |
7742220_022
|
|
governor and installation comps
|
|
| 43. |
|
|
|
|
| 44. |
829764
|
[1] |
Fuel filter, fuel filter
|
(875542)
|
| 44. |
7742220_021
|
|
water separator
|
|
| 45. |
957176
|
[2] |
Gasket
|
|
| 46. |
191397
|
[2] |
Nipple
|
For pipe with D=5/16''.
|
| 46. |
941438
|
[2] |
Nipple
|
For pipe with D=3/8''.
|
| 47. |
954322
|
[2] |
Fitting nut
|
For pipe with D=5/16''.
|
| 47. |
954323
|
[2] |
Fitting nut
|
For pipe with D=3/8''.
|
