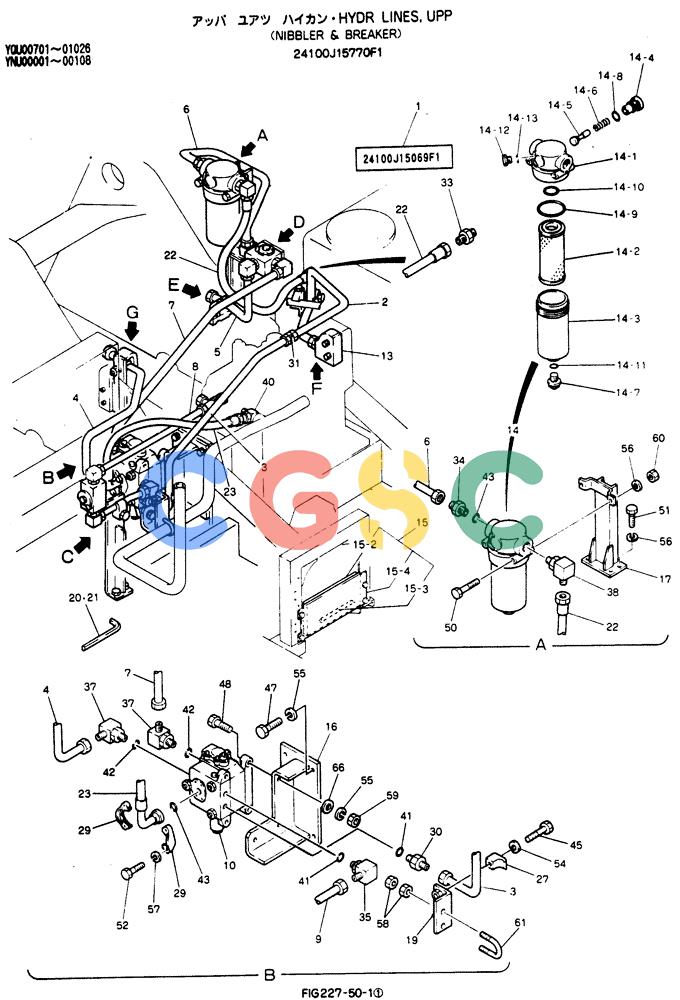

| . . | 24100J15770F1 | [1] | HYDR LINES, UPP | |
| 1. | 24100J15069F1 | [1] | HYDR LINES, UPP, Remarks: P. 221-49 | |
| 2. | 2418P28827 | [1] | RIGID TUBE | KOBTUBE |
| 3. | 2418P28828 | [1] | RIGID TUBE | KOBTUBE |
| 4. | 2418T25157 | [1] | RIGID TUBE | KOBTUBE |
| 5. | 2418P28829 | [1] | RIGID TUBE | KOBTUBE |
| 6. | 2418P28830 | [1] | RIGID TUBE | KOBTUBE |
| 7. | 2418P28831 | [1] | RIGID TUBE | KOBTUBE |
| 8. | 2418T25158 | [1] | RIGID TUBE | KOBTUBE |
| 9. | 2418T25159 | [1] | RIGID TUBE | KOBTUBE |
| 10. | 2436U1198F1 | [1] | CONTROL VALVE | KOBVALVE, CONTROL, Remarks: SEE (C. P. M) Superseded by part number: YN30V00011F3 |
| 11. | 24100P1005F1 | [1] | VALVE | KOBSELECTOR Superseded by part number: 24100P1005F3 |
| 11-1. | 2436P229 | [1] | VALVE BODY | KOBBODY, VALVE |
| 11-2. | 2436T303 | [1] | VALVE | KOB |
| 11-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 11-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 11-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 11-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 11-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 11-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 11-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 11-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 12. | 24100P1739F2 | [1] | VALVE PRESSURE RELIE | KOBVALVE, SELECTOR |
| 12-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 12-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 12-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 12-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 12-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 12-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 12-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 12-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 12-11. | 2436T323 | [1] | VALVE | |
| 12-12. | 2436P271 | [1] | BODY, VALVE | |
| 13. | 2436U1207F1 | [1] | VALVE | KOBASSY, Remarks: SEE (C. P. M) |
| 14. | 2446U233F1 | [1] | FILTER ASSY | KOBFILTER, LINE |
| 14-1. | 2446U232S1 | [1] | COVER | KOBHEAD |
| 14-2. | 2446U233S2 | [1] | ELEMENT | KOBASSY |
| 14-3. | 2446U232S3 | [1] | CASE | KOB |
| 14-4. | 2446U233S4 | [1] | PLUG | |
| 14-5. | 2446U233S5 | [1] | VALVE | |
| 14-6. | 2446U233S6 | [1] | SPRING | |
| 14-7. | 2446U233S7 | [1] | PLUG | KOB |
| 14-8. | ZD12P02800 | [1] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 14-9. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 14-10. | ZD11P05000 | [1] | O-RING | KOB |
| 14-11. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 14-12. | 2446U233S12 | [1] | SCREW | KOBCAPSCREW |
| 14-13. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 15. | 2414T4934F2 | [1] | COVER ASSY | |
| 15-2. | 2427Z1454 | [1] | INSULATION, SOUND | |
| 15-3. | 2416Z263D2 | [1] | FOAM INSULATION | KOBSHEET, RUBBER |
| 15-4. | 2414P8764 | [1] | COVER | |
| 16. | 2416P12072 | [1] | U-BRACKET | KOBBRACKET |
| 17. | 2416T13239 | [1] | U-BRACKET | KOBBRACKET |
| 18. | 2416T25282 | [1] | U-BRACKET | KOBBRACKET |
| 19. | 2416T25283 | [1] | U-BRACKET | KOBBRACKET |
| 20. | ZT22A05000 | [1] | KEY | KOBScrew -- 05mm |
| 21. | ZT22A03000 | [1] | WRENCH | KOBKEY, SCREW |
| 22. | 2444Z3722D1 | [1] | FLEXIBLE HOSE | KOBHOSE |
| 23. | 2444Z3560D3 | [1] | HOSE | KOB |
| 24. | 2432P1083 | [1] | LABEL | KOB |
| 25. | 2432T4355 | [1] | CLAMP | KOB |
| 26. | 2432T2326 | [1] | CLAMP | KOB |
| 27. | ZC27X22012 | [3] | COLLAR | HITCLAMP |
| 28. | ZC27X28012 | [1] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 29. | ZE12X20000 | [2] | CLAMP | KOBHALF |
| 30. | ZA23F22012 | [2] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 31. | ZA23B22000 | [1] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 32. | ZA23H22012 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 33. | 2444R402D9 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 34. | 2444Z2348 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 35. | ZA33F22012 | [2] | ELBOW | KOB |
| 36. | ZA33F28012 | [3] | ELBOW | KOB |
| 37. | ZA33F28016 | [2] | ELBOW | KOB |
| 38. | 2444R399D6 | [1] | ELBOW | KOB90° -- 1"PFx1-1/4"PFx41.5mm Long (Incls. O-Ring ZD12P03800) |
| 39. | ZA53B22000 | [1] | TEE | KOB |
| 40. | 2444Z3554 | [1] | TEE | KOB |
| 41. | ZD12P02400 | [9] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 42. | ZD12P02900 | [2] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 43. | ZD12P03800 | [2] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 44. | ZS13C08018 | [4] | SCREW | KOBM08x1.25x18mm Superseded by part number: ZS18C08020 |
| 45. | ZS13C10055 | [3] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 46. | ZS13C10060 | [1] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 47. | ZS13C12040 | [4] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040 |
| 48. | ZS13C12055 | [3] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 49. | ZS13C12130 | [1] | SCREW | KOBM12x1.75x130mm Superseded by part number: ZS18C12130 |
| 50. | ZS18C12110 | [2] | SCREW,Hex, M12 x 110mm | KOBM12x1.75x110mm |
| 51. | ZS18C12030 | [6] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 52. | ZS23C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 53. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 54. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 55. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 56. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 57. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 58. | ZN13C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 59. | ZN13C12010 | [3] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 60. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 61. | 2420T2948D5 | [1] | U-BOLT | KOBM08x1.25x ID 45 x 80.5mm Long |
| 62. | 2416T27325 | [1] | U-BRACKET | KOBBRACKET |
| 63. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 64. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 65. | ZN13C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 66. | ZW13H12000 | [3] | WASHER | KOB |
| 67. | 2416P17451 | [1] | SUPPORT | KOB |
| 68. | ZC26X28014 | [1] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 69. | ZN13C12010 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 70. | ZS13C16045 | [2] | SCREW | KOBScrew -- M16x2.0x45mm |
