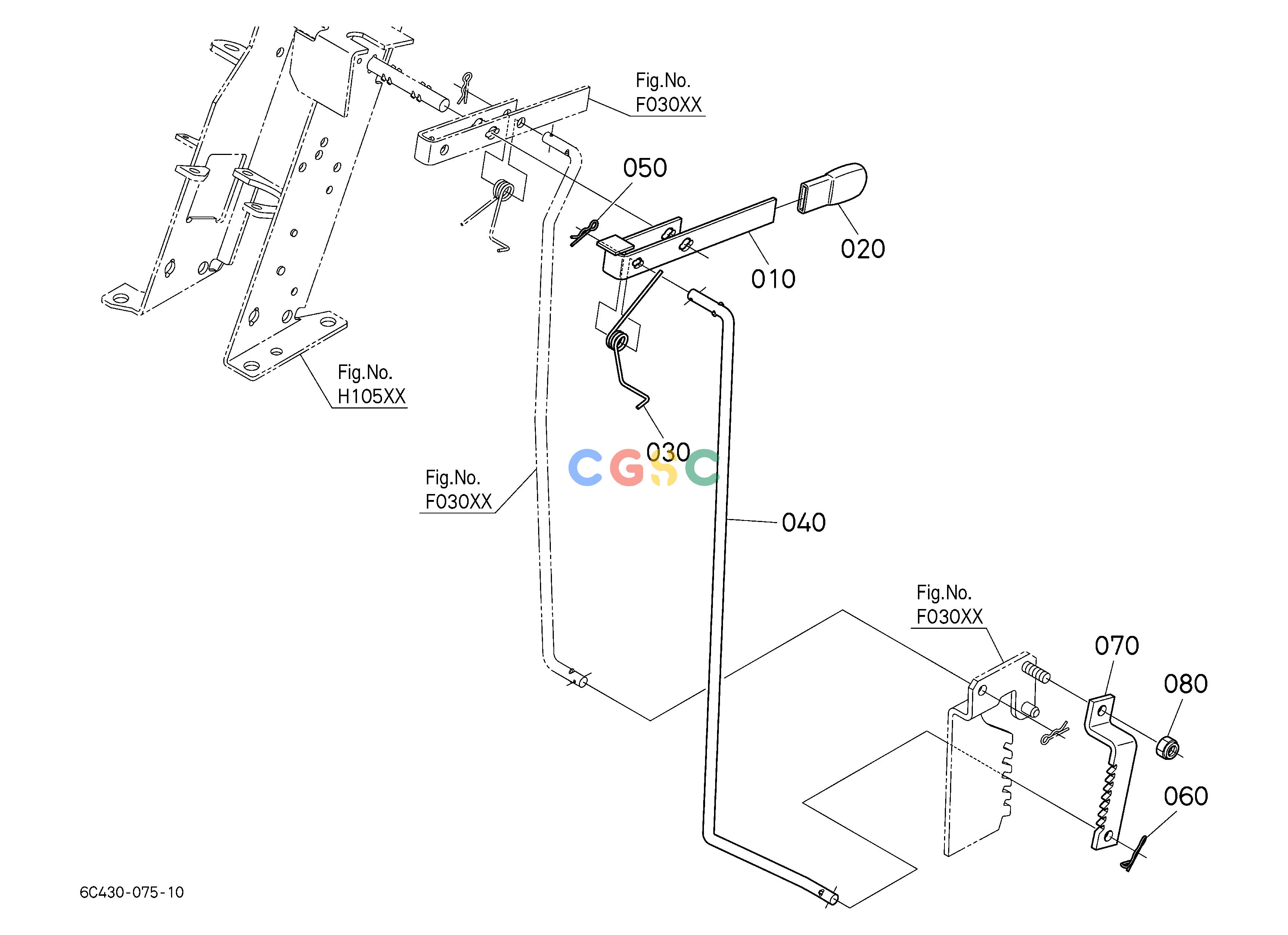

久保田零件查询E01501 PARKING BRAKE LEVER BRAKEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
135 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C41042290
|
[1] |
LEVER(PARKING)
|
0.2354(lbs); 0.107
|
| 020. |
6C04041360
|
[1] |
GRIP,LEVER
|
0.0264(lbs); 0.012
|
| 030. |
6C41042270
|
[1] |
SPRING(RETURN)
|
0.0176(lbs); 0.008
|
| 040. |
6C41042260
|
[1] |
ROD(PARKING)
|
0.4928(lbs); 0.224
|
| 050. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 060. |
5230034120
|
[1] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 070. |
6C41042250
|
[1] |
PLATE(BRAKE LOCK)
|
0.1870(lbs); 0.085
|
| 080. |
0255650080
|
[1] |
NUT,LOCKING
|
0.0088(lbs); 0.004
|
