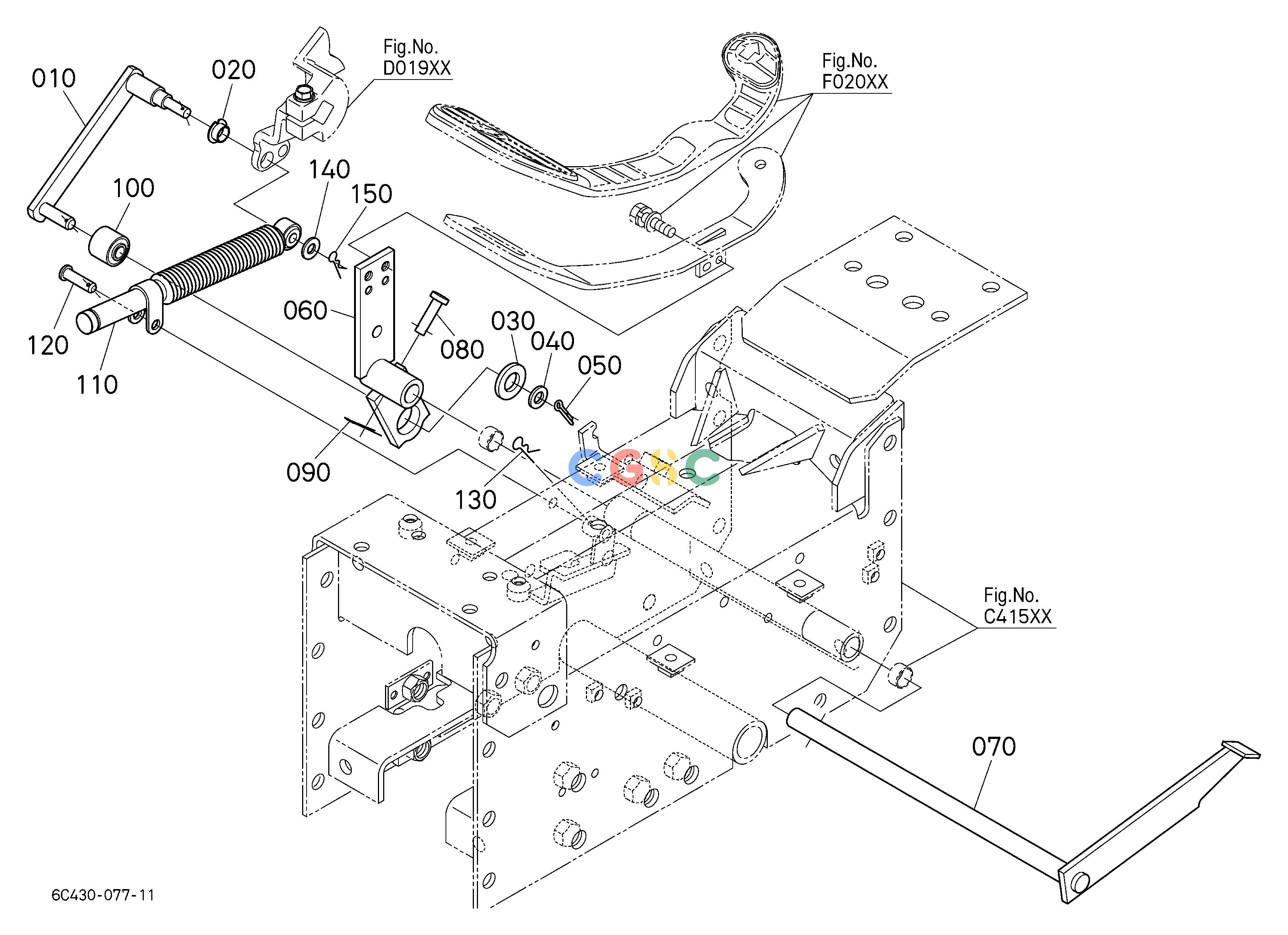

久保田零件查询F02300 SPEED CONTROL ROD CONTROL LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20018220
|
[1] |
PLATE,HST
|
0.4840(lbs); 0.220
|
| 020. |
6A10044680
|
[1] |
BUSH
|
0.0066(lbs); 0.003
|
| 030. |
0401350140
|
[1] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 040. |
0401350100
|
[1] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 050. |
0551150320
|
[1] |
PINSPLIT
|
0.0044(lbs); 0.002
|
| 060. |
6C41018240
|
[1] |
LEVER(HST)
|
0.8954(lbs); 0.407
|
| 070. |
6C41018250
|
[1] |
SHAFT(HST PEDAL)
|
1.7600(lbs); 0.800
|
| 080. |
0512250830
|
[1] |
PIN,JOINT
|
0.0308(lbs); 0.014
|
| 090. |
0551150218
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 100. |
6A00012180
|
[1] |
CUSHION,RUBBER
|
0.0792(lbs); 0.036
|
| 110. |
6C35043350
|
[1] |
DAMPER,HST
|
0.5544(lbs); 0.252
|
| 120. |
6C20018350
|
[1] |
PIN,JOINT
|
0.0264(lbs); 0.012
|
| 130. |
0552551600
|
[1] |
PINSNAP
|
0.0066(lbs); 0.003
|
| 140. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 150. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
