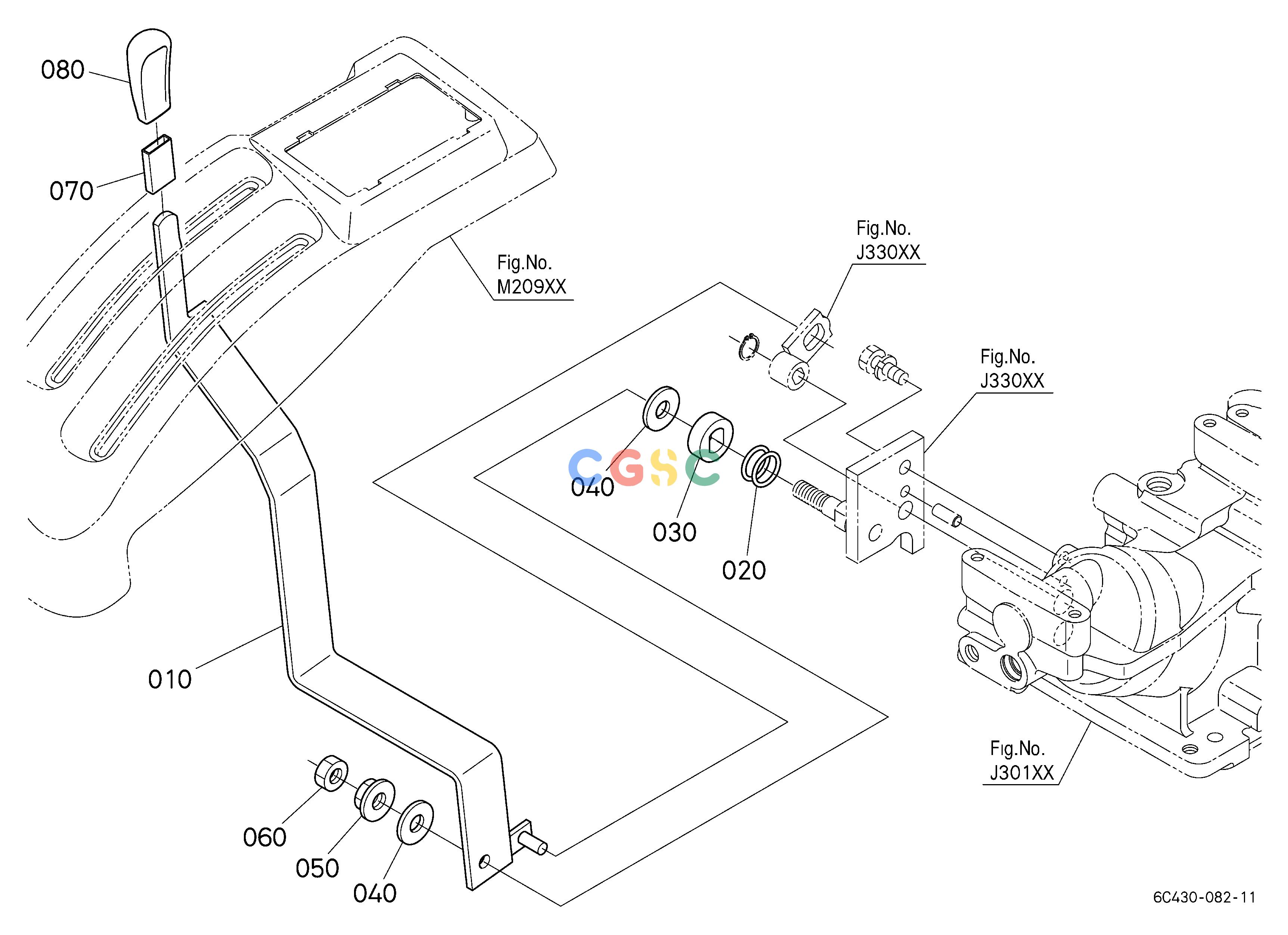

久保田零件查询F14000 POSITION CONTROL LEVER CONTROL LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
980 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20038212
|
[1] |
LEVER,POSITION
|
3.0360(lbs); 1.380
|
| 020. |
6C20038260
|
[1] |
SPRING,LEVER
|
0.0264(lbs); 0.012
|
| 030. |
6C20038253
|
[1] |
COLLAR
|
0.0770(lbs); 0.035
|
| 040. |
PA40146640
|
[1] |
PLATE,FRICTION
|
0.0066(lbs); 0.003
|
| 040. |
6C41038370
|
[2] |
PLATE(FRICTION)
|
0.0044(lbs); 0.002
|
| 050. |
0213150100
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 050. |
6C43038290
|
[1] |
NUT,FLANGE(POSITION)
|
0.0418(lbs); 0.019
|
| 060. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 060. |
0217650100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 070. |
6A90042760
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 080. |
6A70038192
|
[1] |
GRIP,BLACK 63
|
0.0924(lbs); 0.042
|
