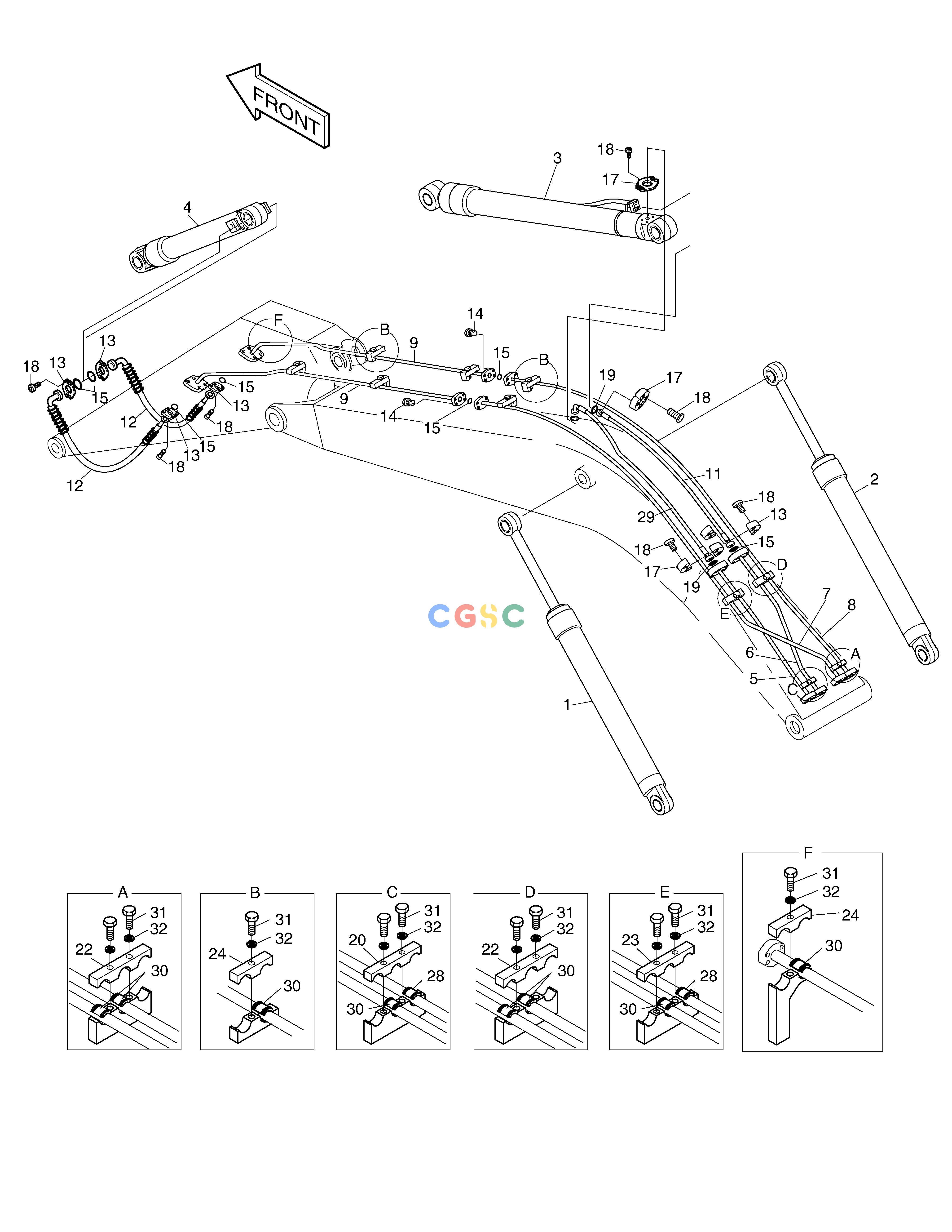

斗山零件查询FRONT PIPING-5.2m BOOM+2.4m ARM SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2072A
|
[-] |
FRONT PIPING
|
|
| 1. |
2440-9234A
|
[1] |
CYLINDER;BOOM(L.H.)
|
|
| 11. |
2184-1081D129
|
[1] |
HOSE PF3/4-1080L
|
|
| 12. |
2184-1100D150
|
[2] |
HOSE PF3/4-1550L
|
|
| 13. |
C181Y00095
|
[10] |
FLANGE
|
|
| 14. |
S2212461
|
[8] |
BOLT;SOCKET
|
|
| 15. |
2180-1026D2
|
[7] |
O-RING
|
|
| 17. |
2181-9078
|
[6] |
FLANGE;SPLIT
|
|
| 18. |
S2212361
|
[32] |
BOLT;SOCKET M10X1.5X35
|
|
| 19. |
2180-1026D19
|
[3] |
O-RING
|
|
| 2. |
2440-9235A
|
[1] |
CYLINDER;BOOM(R.H.)
|
|
| 20. |
124-00175
|
[1] |
CLAMP;PIPE
|
|
| 22. |
124-00012
|
[2] |
CLAMP;PIPE
|
|
| 23. |
124-00173
|
[2] |
CLAMP;PIPE
|
|
| 24. |
124-00011
|
[6] |
CLAMP;PIPE
|
|
| 28. |
2161-2251A
|
[6] |
RUBBER
|
|
| 29. |
2184-1100D76
|
[1] |
HOSE
|
|
| 3. |
2440-9236B
|
[1] |
CYLINDER;ARM
|
|
| 30. |
2161-2250A
|
[30] |
RUBBER
|
|
| 31. |
S0565453
|
[18] |
BOLT M16X2.0X60
|
|
| 32. |
S5102903
|
[18] |
WASHER
|
|
| 4. |
2440-9339B
|
[1] |
CYLINDER;BUCKET
|
|
| 5. |
140-00702
|
[1] |
PIPE
|
|
| 6. |
140-00703
|
[1] |
PIPE
|
|
| 7. |
140-00704
|
[1] |
PIPE
|
|
| 8. |
140-00705
|
[1] |
PIPE
|
|
| 9. |
2140-1599
|
[2] |
PIPE
|
|
