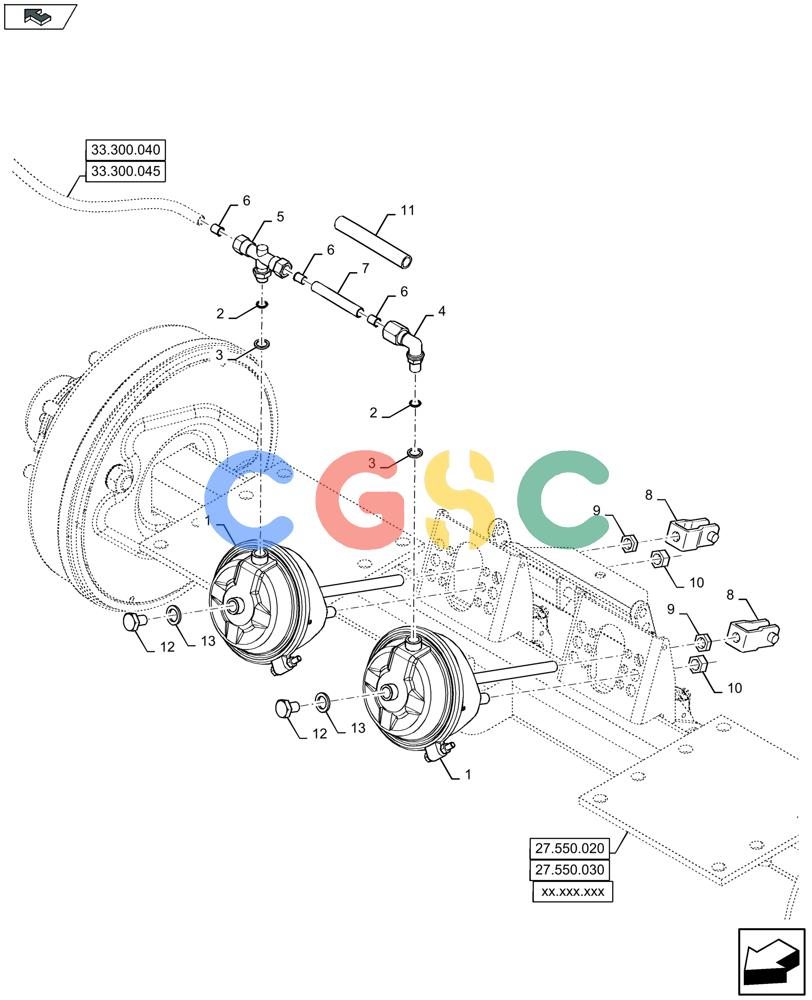

凯斯零件查询(LB324P) - BALER (9/12-) (33.300.031) - PNEUMATIC BRAKES, SINGLE AXLE - D016 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
460 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84014961
|
[2] |
CYLINDER
|
ZED
|
| 2. |
9512532
|
[2] |
O-RING
|
PA
|
| 3. |
9512533
|
[2] |
WASHER, THRUST,16.1mm ID x 22mm OD x 2.6mm Thk
|
PA
|
| 4. |
84007190
|
[1] |
ELBOW,M16 x 1.5 Male
|
ZED
|
| 5. |
84014954
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 6. |
9512527
|
[3] |
FERRULE
|
PA
|
| 7. |
9512535
|
[1] |
HOSE
|
PA
Superseded by part number: 87359227
|
| 8. |
84014245
|
[2] |
YOKE
|
ZED
|
| 9. |
364164
|
[2] |
THIN NUT,Thin, M16 x 1.5, Cl 04
|
ZED
Superseded by part number: 10791411
|
| 10. |
331192
|
[4] |
NUT,M16 x 1.5, Cl 8
|
ZED
Superseded by part number: 10790521
|
| 11. |
9507812
|
[1] |
CONDUIT
|
CUR
Superseded by part number: 9507812BR
|
| 12. |
84014311
|
[2] |
PLUG
|
ZED
|
| 13. |
84014312
|
[2] |
RING
|
ZED
|
