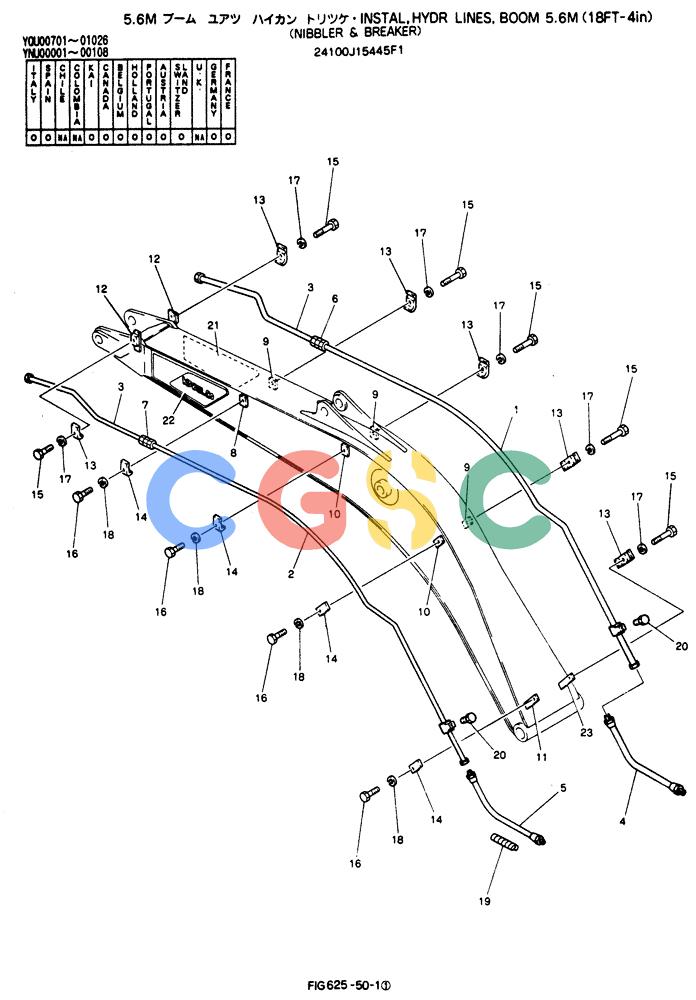

神钢零件查询(BREAKER) - NIBBLER AND BREAKER ATTACHMENT - SK200LC EXCAVATORS (9/04-) (625-50) - Install, Hydr Lines, Boom 5.6M (Nibbler and Breaker) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J15445F1 | [1] | INSTAL, HYDR LINES | INSTAL, HYDR LINES |
| 1. | 2418P21613D2 | [1] | TUBE | KOB |
| 2. | 2418P21614 | [1] | TUBE | KOB |
| 3. | 2418T20062D2 | [2] | TUBE | KOB |
| 4. | 2444R1090D1 | [1] | HOSE | KOB |
| 5. | ZX26T12094 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2444R1177D2 |
| 6. | ZF23B35000 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 7. | ZA23B28035 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 8. | 2416T13325D1 | [1] | LINK BLOCK | KOBBLOCK, TAPPED |
| 9. | 2416T21120D3 | [3] | LINK BLOCK | KOBBLOCK, TAPPED |
| 10. | 2416T21120D2 | [2] | BLOCK | KOBTAPPED |
| 11. | 2416T21134D5 | [1] | BLOCK | KOBTAPPED |
| 12. | 2416T24891D2 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
| 13. | ZC26X35016 | [6] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 14. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 15. | ZS13C14060 | [6] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 16. | ZS13C12055 | [4] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 17. | ZW22X14000 | [6] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 18. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 19. | 2414Z199D100 | [6] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
| 20. | 2420Z985 | [2] | PLUG | KOB |
| 21. | 2432P2807 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2276 |
| 22. | 2432P2806 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2275 |
| 23. | 2416T21134D6 | [1] | BLOCK | KOBTAPPED |
