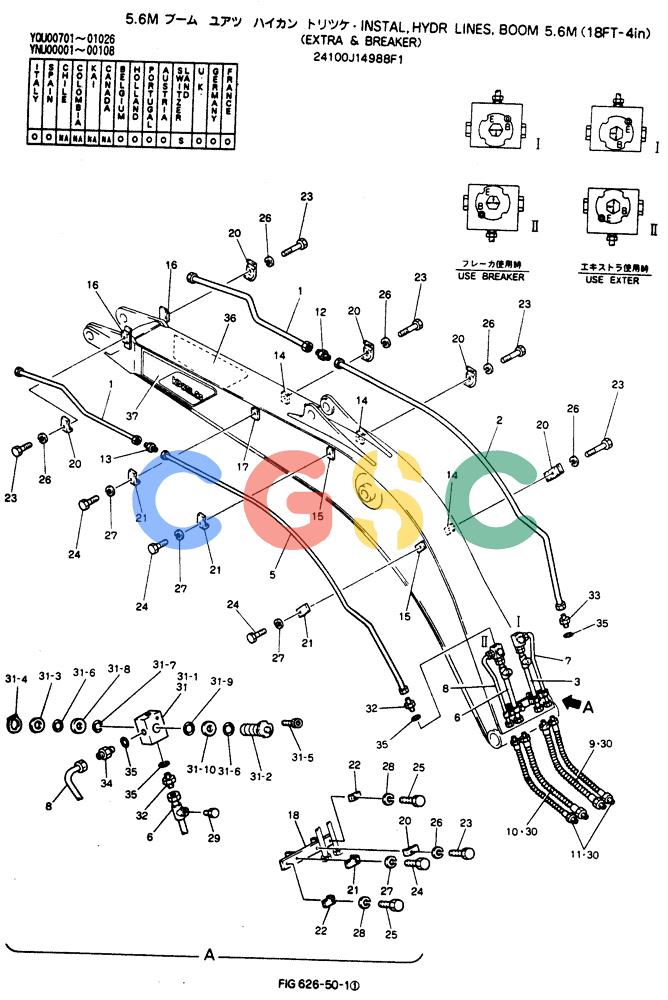

神钢零件查询(BREAKER) - NIBBLER AND BREAKER ATTACHMENT - SK200LC EXCAVATORS (9/04-) (626-50) - Install, Hydr Lines, Boom 5.6M (Extra and Breaker) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
576 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J14988F1 | [1] | INSTAL, HYDR LINES, BOOM | |
| 1. | 2418T20062D2 | [2] | TUBE | KOB |
| 2. | 2418P24265D2 | [1] | TUBE | |
| 3. | 2418T16550D2 | [1] | TUBE | |
| 5. | 2418P24264 | [1] | TUBE | |
| 6. | 2418T16551 | [1] | TUBE | TUBE |
| 7. | 2418T16552D1 | [1] | TUBE | KOB |
| 8. | 2418T16552D2 | [1] | TUBE | TUBE |
| 9. | 2444R1090D1 | [1] | HOSE | KOB |
| 10. | ZX26T12094 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2444R1177D2 |
| 11. | 2444R950D1 | [2] | HOSE | KOB |
| 12. | ZF23B35000 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 13. | ZA23B28035 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 14. | 2416T21120D3 | [3] | LINK BLOCK | KOBBLOCK, TAPPED |
| 15. | 2416T21120D2 | [2] | BLOCK | KOBTAPPED |
| 16. | 2416T24891D2 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
| 17. | 2416T13325D1 | [1] | LINK BLOCK | KOBBLOCK, TAPPED |
| 18. | 2416T24890 | [1] | SUPPORT | |
| 20. | ZC26X35016 | [6] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 21. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 22. | ZC26X18011 | [2] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 23. | ZS13C14060 | [6] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 24. | ZS13C12055 | [4] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 25. | ZS13C10040 | [2] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 26. | ZW22X14000 | [6] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 27. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 28. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 29. | 2420Z985 | [2] | PLUG | KOB |
| 30. | 2414Z199D100 | [8] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
| 31. | 24100P1005F1 | [2] | VALVE | KOBSELECTOR Superseded by part number: 24100P1005F3 |
| 31-1. | 2436P229 | [1] | VALVE BODY | KOBBODY, VALVE |
| 31-2. | 2436T303 | [1] | VALVE | KOB |
| 31-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 31-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 31-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 31-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 31-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 31-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 31-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 31-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 32. | ZF23F28012 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 33. | 2444Z2093 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 34. | 2444T2179 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 35. | ZD12P02240 | [6] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 36. | 2432P2807 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2276 |
| 37. | 2432P2806 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2275 |
