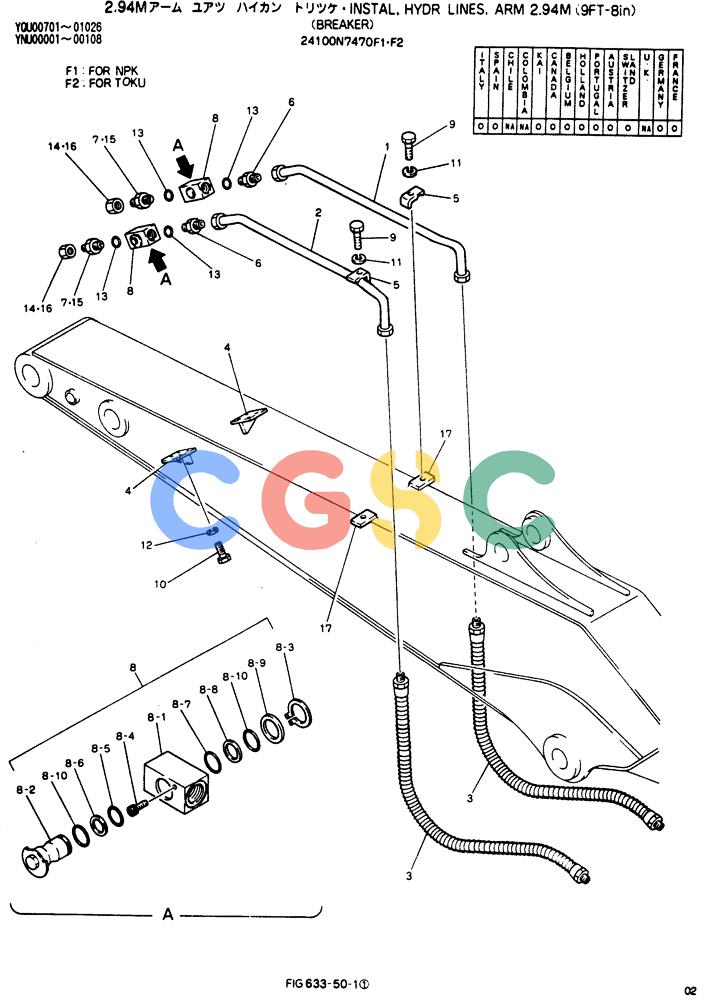

| . . | 24100N7470F1 | [1] | INSTAL, HYDR LINES, ARM, Remarks: (NPK) | INSTAL, HYDR LINES, ARM, Remarks: (NPK) |
| . . | 24100N7470F2 | [1] | INSTAL, HYDR LINES, ARM, Remarks: (TOKU) | |
| 1. | 2418P23337D2 | [1] | RIGID TUBE | KOBTUBE |
| 2. | 2418P27160 | [1] | RIGID TUBE | KOBTUBE |
| 3. | ZX56T16160 | [2] | FLEXIBLE HOSE | KOBHOSE |
| 4. | 2416T24289 | [2] | U-BRACKET | KOBBRACKET |
| 5. | ZC26X35016 | [2] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 6. | ZF23F35020 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 7. | 2444P1744D3 | [2] | HYD CONNECTOR | KOB1-5/16" 12UNF x 1-1/4" PF (No O-Ring supplied), (F1 ONLY) |
| 8. | 24100P3133F1 | [2] | VALVE | KOBSTOP, 1 1/4 PF Thead British Standard Parallel Pipe(BSPP) |
| . . | 2420T4361 | [2] | PLUG | KOBNot Shown, Used when aux lines not in use. |
| 8-1. | 2436P317 | [1] | VALVE BODY | KOBBODY, VALVE Superseded by part number: 24100P3133F1 |
| 8-2. | 2436T311 | [1] | VALVE | KOB |
| 8-3. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 8-4. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 8-5. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 8-6. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 8-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 8-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 8-9. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 8-10. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 9. | ZS13C14060 | [2] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 10. | ZS13C08022 | [8] | SCREW | KOBM08x1.25x22mm Superseded by part number: ZS18C08022 |
| 11. | ZW22X14000 | [2] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 12. | ZW22X08000 | [8] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 13. | ZD12P03800 | [4] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 14. | 2444T2406 | [2] | PLUG | KOBCap -- 1-5/16" 12UNF, (F1 ONLY) |
| 15. | 2444P1745D3 | [2] | CONNECTOR, Remarks: (F2 ONLY) | |
| 16. | 2420Z1228D4 | [2] | PLUG | KOBRemarks: (F2 ONLY) |
| 17. | 2416T13504D1 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
