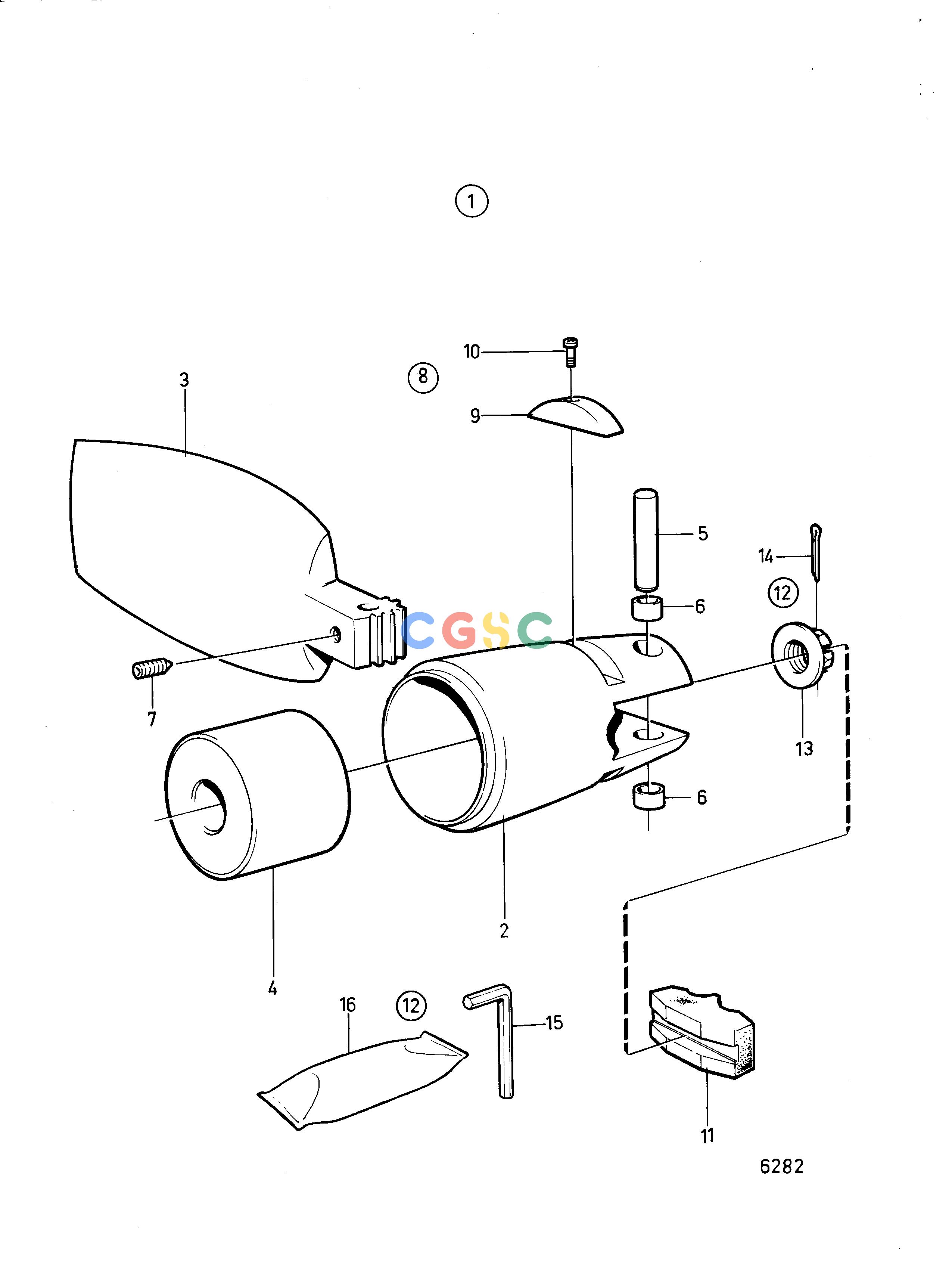

沃尔沃零件查询MD5A; MD5B; MD5CMiscellaneous EquipmentFolding Propeller: 850765EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850765
|
[1] |
Propeller
|
16X11,5
|
| 2. |
|
|
|
|
| 3. |
850768
|
[1] |
Propeller blade
|
|
| 4. |
|
|
|
|
| 5. |
839511
|
[2] |
Shaft
|
|
| 6. |
850856
|
[4] |
Bushing
|
Without flange
|
| 6. |
852153
|
[4] |
Bushing
|
With flange.
|
| 7. |
946847
|
[2] |
Set screw
|
|
| 8. |
852018
|
[1] |
Zinc anode kit
|
|
| 9. |
|
|
|
|
| 10. |
963677
|
[2] |
Hex. socket screw
|
|
| 11. |
850855
|
[1] |
Absorber
|
|
| 12. |
|
|
|
|
| 13. |
852044
|
[1] |
Castle nut
|
|
| 14. |
949807
|
[1] |
Split pin
|
|
| 15. |
914672
|
[1] |
Allen key
|
|
| 16. |
828250
|
[1] |
Lubricating grease
|
|
