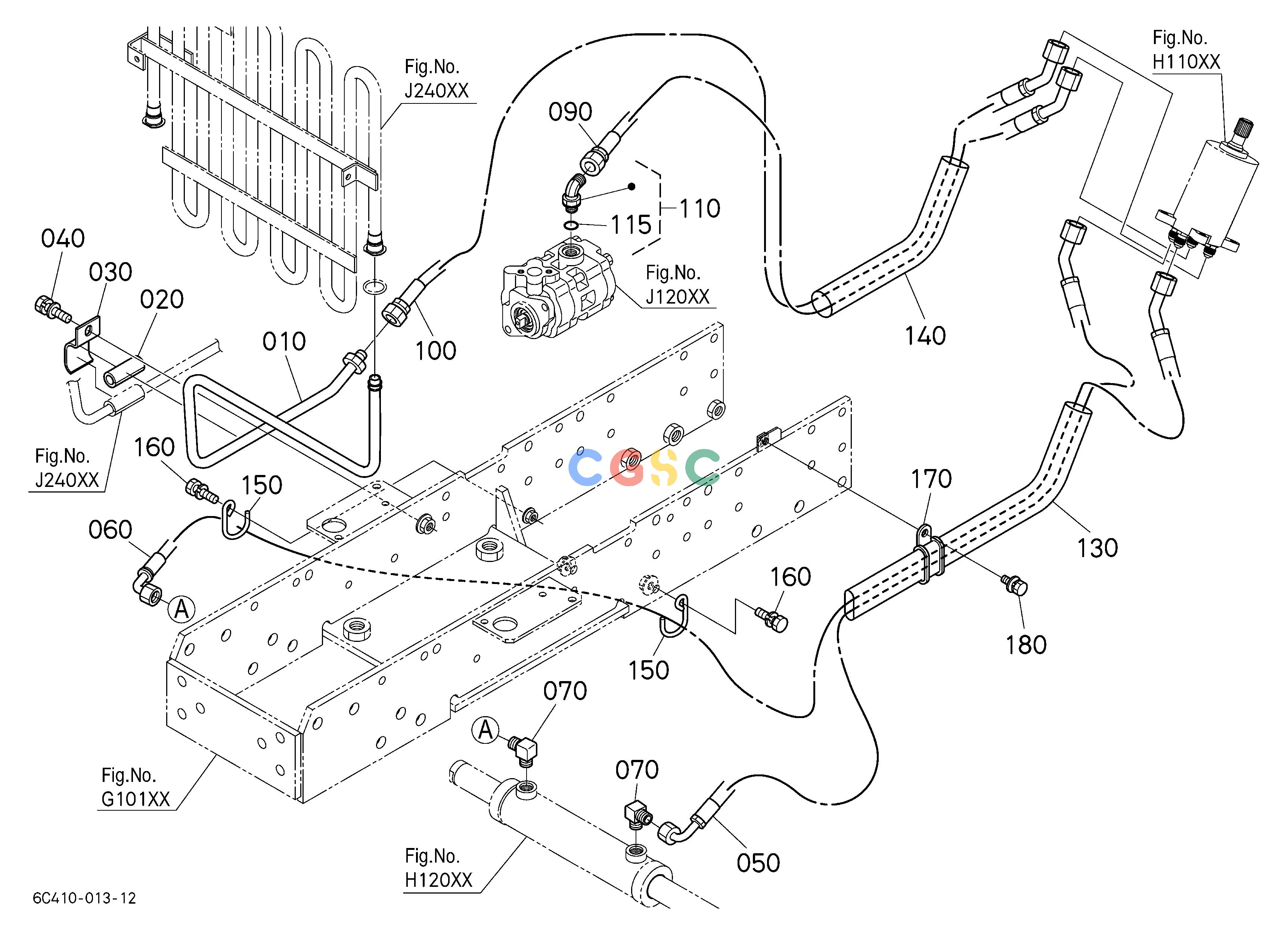

久保田零件查询J21501 HYDRAULIC OIL LINE(PS) PUMP/MOTOR SYSTEMEPC Kubota online_久保田Kubota_工程机械

久保田零件查询J21501 HYDRAULIC OIL LINE(PS) PUMP/MOTOR SYSTEMEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 483 次

Pos.	Part No	Qty	Parts name	Comments
010.	6C43039310	[1]	PIPE(PS-OC,CAB)	0.6380(lbs); 0.290
020.	6C14039250	[1]	CUSHION	0.0308(lbs); 0.014
030.	6C20039240	[1]	CLAMP	0.1650(lbs); 0.075
040.	0113551030	[1]	BOLT,W SEMS	0.0440(lbs); 0.020
050.	6C41057510	[1]	HOSE,HYDRAULIC(PS,R)	; <=62811 0.8030(lbs); 0.365
050.	6C41057512	[1]	HOSE,HYDRAULIC(PS,R)	; >=62812 0.8030(lbs); 0.365
060.	6C41057520	[1]	HOSE,HYDRAULIC(PS,L)	; <=62811 1.0560(lbs); 0.480
060.	6C41057522	[1]	HOSE,HYDRAULIC(PS,L)	; >=62812 1.0560(lbs); 0.480
070.	0611452023	[2]	JOINT	0.1100(lbs); 0.050
090.	6C40057530	[1]	HOSE,HYDRAULIC(IN,STEERING)	; <=62811 0.5940(lbs); 0.270
090.	6C40057532	[1]	HOSE,HYDRAULIC(IN,STEERING)	; >=62812 0.5940(lbs); 0.270
100.	6C41057540	[1]	HOSE,HYD.(OUT,STEERING)	; <=62811 0.8030(lbs); 0.365
100.	6C41057542	[1]	HOSE,HYDRAULIC	; >=62812 0.8030(lbs); 0.365
110.	0611552023	[1]	JOINT	; <=64393 0.1320(lbs); 0.060
110.	V051168670	[1]	JOINT,PIPE(LGG)	; >=64394 0.1210(lbs); 0.055
115.	0481700110	[1]	O RING	; >=64394 0.0022(lbs); 0.001
130.	6C20057554	[1]	TUBE,GUARD	0.1100(lbs); 0.050
140.	6C23057554	[1]	TUBE,GUARD	0.0770(lbs); 0.035
150.	6C20057573	[2]	HOLDER,HOSE	; <=56750 0.1276(lbs); 0.058
150.	6C54057570	[2]	HOLDER(HOSE)	; >=56751 0.0352(lbs); 0.016
160.	0112350820	[2]	BOLT,SEMS	; <=56750 0.0242(lbs); 0.011
160.	0112550830	[2]	BOLT,W SEMS	; >=56751 0.0374(lbs); 0.017
170.	T027050230	[1]	CLAMP,HOSE	0.0462(lbs); 0.021
180.	0112550816	[1]	BOLT,W SEMS	; <=52266 0.0286(lbs); 0.013
180.	0112550820	[1]	BOLT,W SEMS	; >=52267 0.0308(lbs); 0.014
