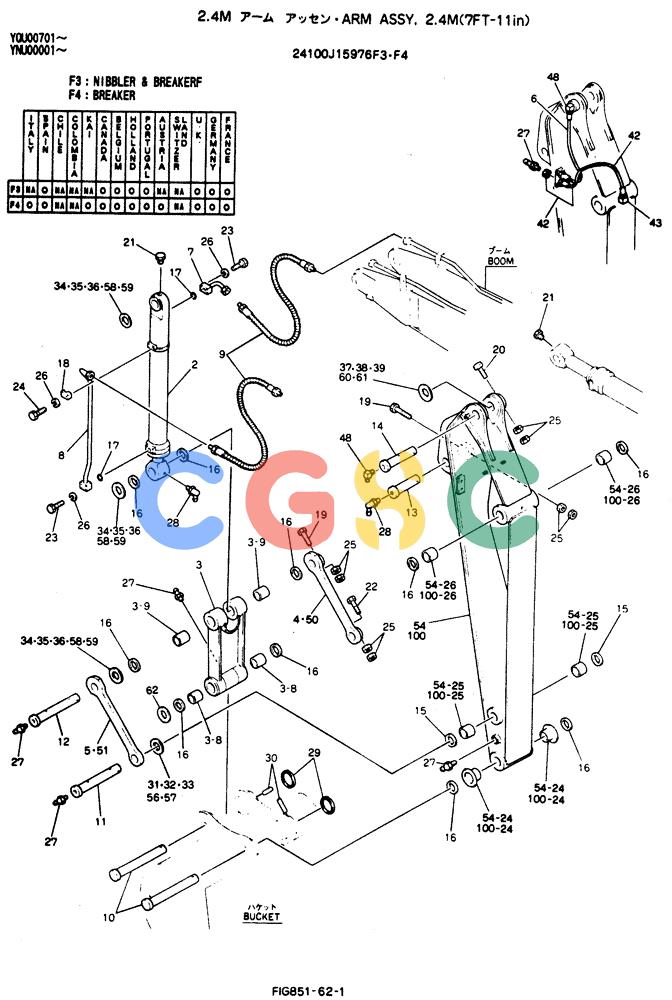

| . . | 24100J15976F3 | [1] | ARM ASSY, 2.4M | |
| . . | 24100J15976F4 | [1] | ARM ASSY, 2.4M | |
| 2. | 2438U1105F1 | [1] | CYLINDER | KOBRemarks: SEE (C. P. M) |
| 3. | 2406N1662F1 | [1] | LINK CONROD | KOBLINK, BUCKET |
| 3-8. | 2405T951 | [2] | BUSHING | KOB |
| 3-9. | 2405T1275 | [2] | BUSHING | KOB |
| 4. | 2406P4823D1 | [1] | LINK CONROD | KOBLINK, IDLER, Remarks: (F4 ONLY) |
| 5. | 2406P4823D2 | [1] | LINK CONROD | KOBLINK, IDLER, Remarks: (F4 ONLY) |
| 6. | 2420R1187D060 | [1] | 600mm Long (23-5/8 in) | 600mm Long (23-5/8 in) |
| 7. | 2418P23180 | [1] | RIGID TUBE | KOBTUBE |
| 8. | 2418P23181D2 | [1] | RIGID TUBE | KOBTUBE |
| 9. | 2444R1177D3 | [2] | FLEXIBLE HOSE | KOB1300mm Long (51-3/16 in) |
| 10. | 2419T3752 | [2] | PIN | KOB Superseded by part number: 2419T7605D1 |
| 11. | 2419P3381D1 | [1] | PIN | KOB Superseded by part number: 2419P4047D1 |
| 12. | 2419P3266D1 | [1] | PIN,80mm OD x 480mm L | KOB Superseded by part number: 2419P4044D1 |
| 13. | 2419P2951 | [1] | PIN | KOB |
| 14. | 2419P3707 | [1] | PIN | KOB |
| 15. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| 16. | 2445R220D4 | [10] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| 17. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 18. | 2432T1187 | [1] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 19. | 2420T4330D10 | [2] | SCREW,M16 x 2 x 140mm | KOBM16x2.0x140mm Superseded by part number: ZS18C16140 |
| 20. | 2420T4330D2 | [1] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm Superseded by part number: HS18C16150G1 |
| 21. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
| 22. | 2420T4330D9 | [1] | SCREW,M16 x 2 x 130mm | KOBM16x2.0x130mm Superseded by part number: HS18C16130G2 |
| 23. | ZS13C10070 | [8] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 24. | ZS13C10055 | [1] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 25. | ZN13C16013 | [8] | NUT | KOBM16x2.0mm |
| 26. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 27. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 28. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 29. | 2418T23987D2 | [2] | RING | KOBRetaining -- ID 105 ± 1.0 x OD 110 x Th 12mm |
| 30. | 2419T6002D6 | [2] | PIN,16mm OD x 102mm L | KOBOD 16 x 102mm Long |
| 31. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 32. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 33. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 34. | B16T0442D3 | [3] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 35. | B16T0442D4 | [3] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 36. | B16T0442D6 | [3] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
| 37. | B16T0442D48 | [1] | SHIM,160mm OD x 87mm ID x 1.2mm Thk | KOBID 87 x OD 160 x Th 1.2mm |
| 38. | B16T0442D37 | [1] | SHIM,155mm OD x 87mm ID x 1.6mm Thk | KOBID 87 x OD 155 x Th 1.6mm |
| 39. | B16T0442D50 | [1] | SHIM,160mm OD x 87mm ID x 2.3mm Thk | KOBID 87 x OD 160 x Th 2.3mm |
| 42. | 2420R1187D085 | [1] | HOSE | HOSE |
| 43. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 48. | 2444T2032D2 | [1] | HYD CONNECTOR | KOBElbow, 90° -- 1/4" PF - 1/8" PT x 43mm Long |
| 50. | 2406P4942D1 | [1] | LINK | KOBIDLER, Remarks: (F3 ONLY) |
| 51. | 2406P4942D2 | [1] | LINK | KOBIDLER, Remarks: (F3 ONLY) |
| 54. | 2411J4868D3F1 | [1] | ARM, Remarks: (F3 ONLY) | |
| 54-24. | 2405T1274 | [2] | BUSHING,80mm ID x 95mm OD x 93mm L | KOB Superseded by part number: 2405T1902 |
| 54-25. | B05T0041C2 | [2] | BUSHING | KOB |
| 54-26. | B05T0009C2 | [2] | BUSHING | KOB |
| 54-37. | 2416T24289 | [2] | U-BRACKET | KOBBRACKET |
| 54-38. | 2416T13504D1 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
| 56. | B16T0442D44 | [1] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| 57. | B16T0442D57 | [1] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 58. | B16T0442D39 | [3] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
| 59. | B16T0442D52 | [3] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOBID 82 x OD 150 x Th 0.5mm |
| 60. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOBID 87 x OD 140 x Th 0.9mm |
| 61. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOBID 87 x OD 140 x Th 0.5mm |
| 62. | B16T0442D79 | [1] | SHIM,130mm OD x 82mm ID x 0.5mm Thk | KOBID 82 x OD 130 x Th 0.5mm |
| 100. | 2411J4868D4F1 | [1] | ARM, Remarks: (F4 ONLY) | |
| 100-24. | 2405T1274 | [2] | BUSHING,80mm ID x 95mm OD x 93mm L | KOB Superseded by part number: 2405T1902 |
| 100-25. | B05T0041C2 | [2] | BUSHING | KOB |
| 100-26. | B05T0009C2 | [2] | BUSHING | KOB |
| 100-37. | 2416T24289 | [2] | U-BRACKET | KOBBRACKET |
| 100-38. | 2416T13504D1 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
| 101. | 2418P23595D2 | [1] | TUBE | KOB |
| 102. | 2418P27159 | [1] | RIGID TUBE | KOBTUBE |
| 103. | ZX56T16120 | [2] | FLEXIBLE HOSE | KOBHOSE |
| 105. | ZC26X35016 | [2] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 106. | ZF23F35020 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 107. | 2444P1744D3 | [2] | HYD CONNECTOR | KOB1-5/16" 12UNF x 1-1/4" PF (No O-Ring supplied) |
| 108. | 24100P3133F1 | [2] | VALVE | KOBSTOP, 1 1/4 PF Thead British Standard Parallel Pipe(BSPP) |
| . . | 2420T4361 | [2] | PLUG | KOBNot Shown, Used when aux lines not in use. |
| 108-1. | 2436P317 | [1] | VALVE BODY | KOBBODY, VALVE Superseded by part number: 24100P3133F1 |
| 108-2. | 2436T311 | [1] | VALVE | KOB |
| 108-3. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 108-4. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 108-5. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 108-6. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 108-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 108-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 108-9. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 108-10. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 109. | ZS13C14060 | [2] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 110. | ZS13C08022 | [8] | SCREW | KOBM08x1.25x22mm Superseded by part number: ZS18C08022 |
| 111. | ZW22X14000 | [2] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 112. | ZW22X08000 | [8] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 113. | ZD12P03800 | [4] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 114. | 2444T2406 | [2] | PLUG | KOBCap -- 1-5/16" 12UNF |
