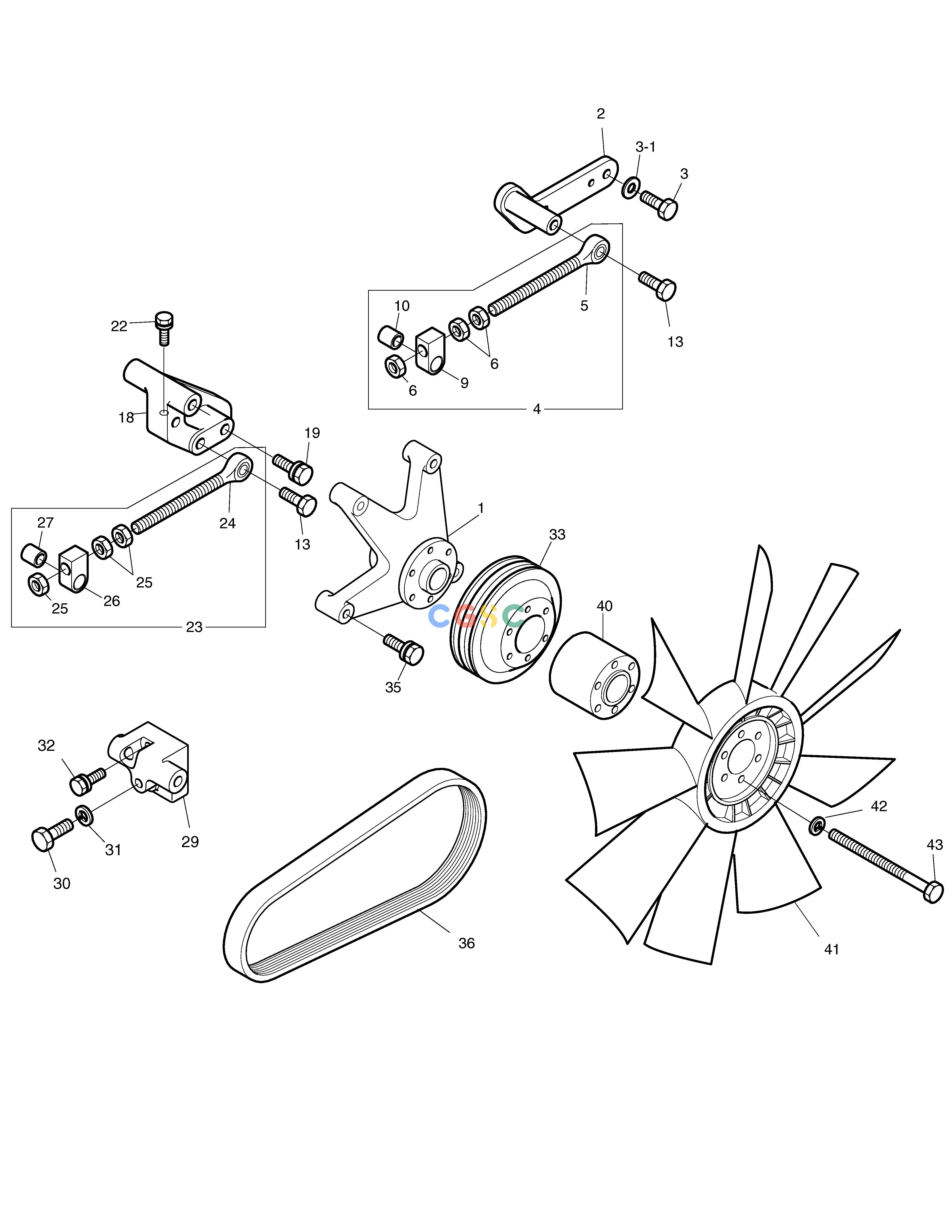

斗山零件查询ALTERNATOR & AIRCONDITIONER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
759 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06650-6016
|
[1] |
FAN DRIVE ASS'Y
|
|
| 10. |
65.93020-0055
|
[2] |
. BUSH
|
|
| 13. |
06.01943-3319
|
[2] |
BOLT ASS`Y M12X1.5X40
|
|
| 18. |
65.28652-0013
|
[1] |
BRACKET;AIR CON.COMP.
|
|
| 19. |
06.01943-3323
|
[2] |
BOLT ASS`Y M12X1.5X60
|
|
| 2. |
65.19103-5035
|
[1] |
BRACKET
|
|
| 22. |
06.01913-3217
|
[1] |
BOLT ASS'Y M10X30
|
|
| 23. |
65.19103-6010
|
[2] |
EYE BOLT ASS'Y
|
|
| 24. |
65.90441-0009A
|
[2] |
. EYE BOLT
|
|
| 25. |
06.11063-9217
|
[3] |
. NUT
|
|
| 26. |
65.19107-0001
|
[2] |
PIECE;GUIDE
|
|
| 27. |
65.93020-0055
|
[2] |
. BUSH
|
|
| 29. |
65.19102-0075
|
[1] |
BRACKET;ALTERNATOR MOUNTING
|
|
| 3. |
06.01013-9226
|
[2] |
BOLT;HEX. M10X1.5X110
|
|
| 3-1. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 30. |
06.01013-9220
|
[1] |
BOLT;HEX M10X1.5X75
|
|
| 31. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 32. |
06.01913-3219
|
[2] |
BOLT ASS'Y M10X40
|
|
| 33. |
65.06606-0042
|
[1] |
PULLEY;FAN
|
65.06606-0022A
|
| 33. |
|
[-] |
|
65.96801-0138
|
| 33. |
|
[-] |
|
65.19103-6012
|
| 33. |
65.06606-0022A
|
[1] |
PULLEY;FAN
|
|
| 35. |
06.01943-3332
|
[2] |
BOLT ASS'Y M12X1.5X110
|
|
| 36. |
65.96801-0130
|
[1] |
BELT;POLY
|
|
| 36. |
65.96801-0138
|
[1] |
BELT;POLY
|
|
| 4. |
65.19103-6010
|
[2] |
EYE BOLT ASS'Y
|
|
| 4. |
65.19103-6012
|
[2] |
EYE BOLT ASS'Y
|
|
| 40. |
65.06611-0113
|
[1] |
FLANGE;FAN
|
65.06611-0113A
|
| 40. |
65.06611-0113A
|
[1] |
FLANGE;FAN
|
|
| 41. |
65.06601-5054
|
[1] |
FAN;COOLING 9 BLADE PLASTIC
|
|
| 42. |
06.16731-2107
|
[6] |
WASHER
|
|
| 43. |
06.01013-9137
|
[6] |
BOLT;HEX. M8X125
|
|
| 5. |
65.90441-0009A
|
[2] |
. EYE BOLT
|
|
| 5. |
65.90441-0011
|
[2] |
BOLT;EYE
|
|
| 6. |
06.11063-9217
|
[3] |
. NUT
|
|
| 9. |
65.19107-0001
|
[2] |
PIECE;GUIDE
|
|
