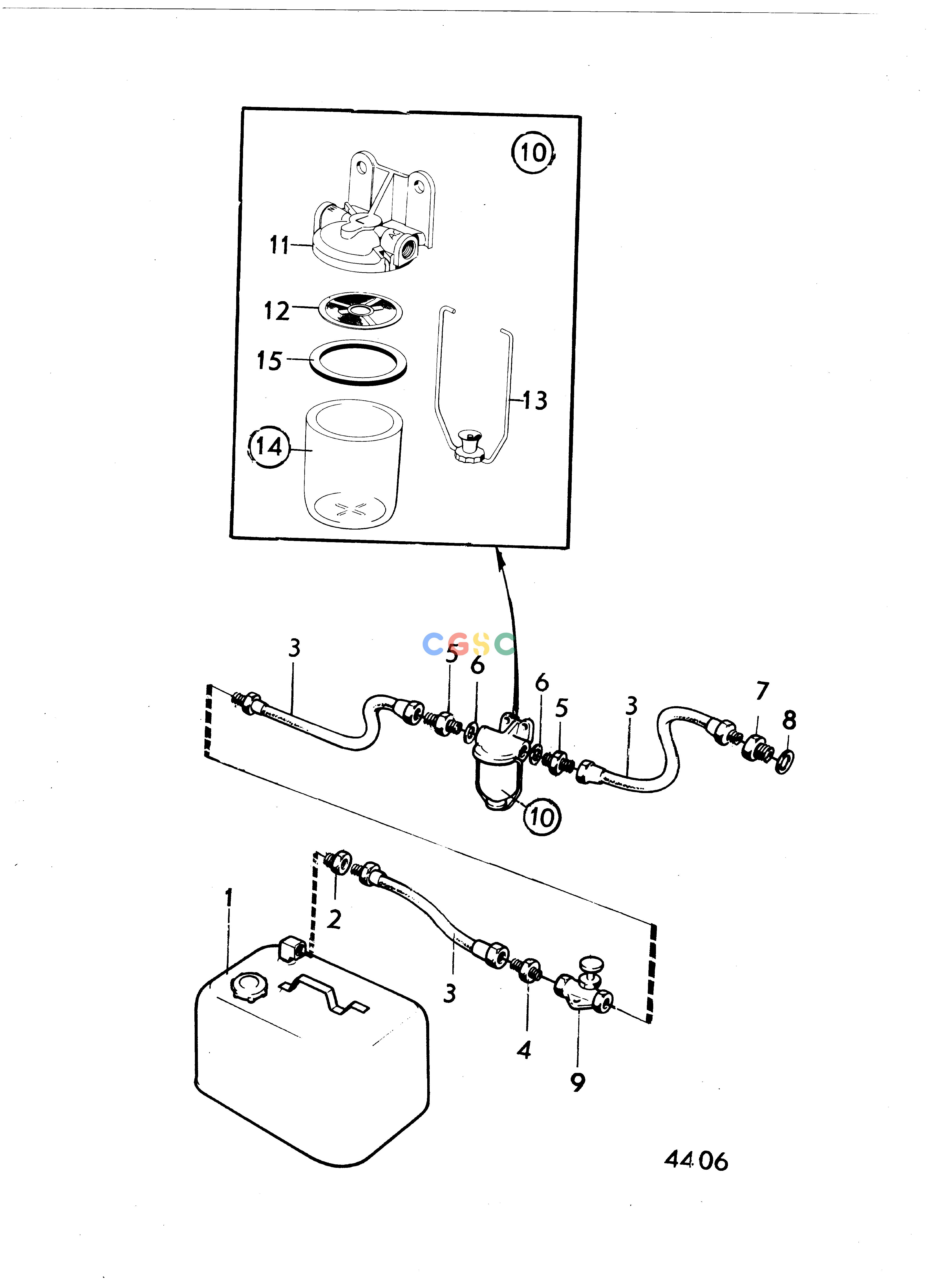

沃尔沃零件查询MD5A; MD5B; MD5CMiscellaneous EquipmentFuel Tank and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828108
|
[1] |
Fuel tank
|
23 l
|
| 1. |
3556462
|
[1] |
Filler cap
|
|
| 2. |
180002
|
[1] |
Nipple
|
|
| 3. |
828160
|
[1] |
Fuel hose
|
Alt, L=700mm
|
| 3. |
827145
|
[1] |
Hose, hose
|
(827231)
|
| 3. |
|
|
|
Alt, L=1500mm
|
| 4. |
192271
|
[1] |
Nipple
|
|
| 5. |
192096
|
[1] |
Nipple
|
|
| 6. |
957176
|
[1] |
Gasket
|
|
| 7. |
813615
|
[1] |
Reduction nipple
|
|
| 8. |
957178
|
[1] |
Gasket
|
|
| 9. |
824599
|
[1] |
Cock
|
|
| 10. |
827200
|
[1] |
Fuel filter
|
|
| 11. |
|
|
|
|
| 12. |
344440
|
[1] |
Wire gauze
|
|
| 13. |
65179
|
[1] |
Brace
|
|
| 14. |
875296
|
[1] |
Glass container
|
|
| 15. |
814994
|
[1] |
Gasket
|
|
