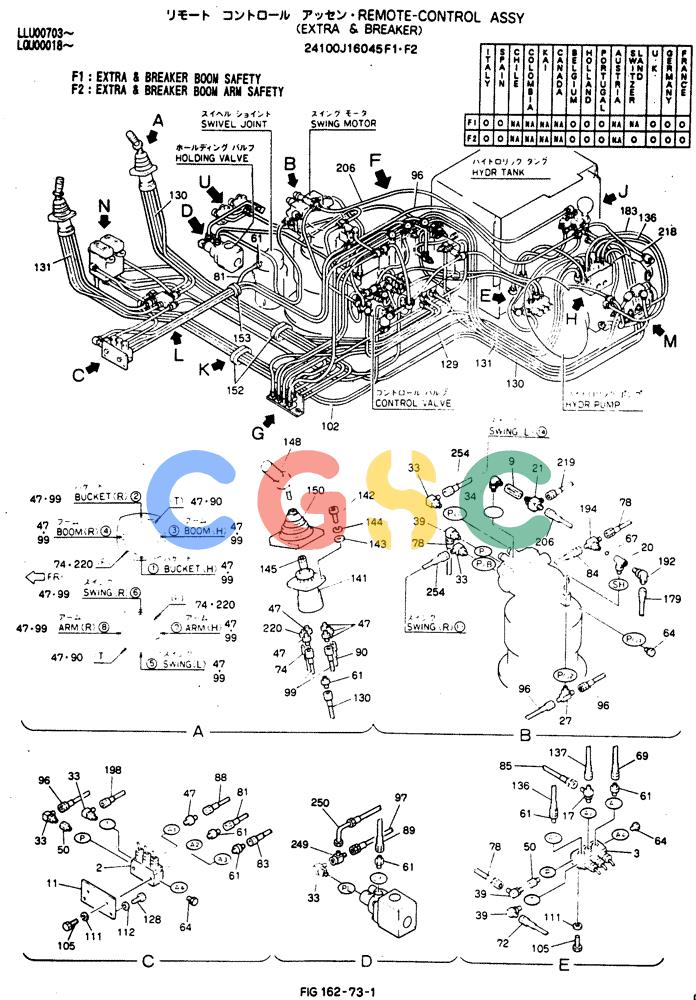

| . . | 24100J16045F1 | [1] | REMOTE-CONTROL ASSY | |
| . . | 24100J16045F2 | [1] | REMOTE-CONTROL ASSY | |
| 1. | 2410T323 | [1] | BLOCK | KOBBLOCK |
| 2. | 2436U1453F2 | [1] | SOLENOID VALVE | KOBVALVE, SOLENOID, Remarks: SEE (C. P. M) Superseded by part number: 2436U1453F4 |
| 3. | 2436U1453F1 | [1] | SOLENOID VALVE | KOBVALVE, SOLENOID, Remarks: SEE (C. P. M) Superseded by part number: 2436U1453F3 |
| 6. | 2445R373F1 | [1] | ACCUMULATOR | KOB |
| 7. | 2436U1282D2108 | [1] | VALVE PRESSURE RELIE | KOBVALVE, RESTRICTOR |
| 9. | 2436U1171D31 | [1] | CHECK VALVE | KOBCHECK |
| 10. | 2479U1378 | [2] | PRESSURE SWITCH | KOBSWITCH, PRESSURE Superseded by part number: 2479U2010 |
| 11. | 2418T22461D1 | [1] | PLATE | KOB |
| 12. | 2416P15419 | [1] | BRACKET | KOB |
| 13. | 2436R914F1 | [1] | INLET MANIFOLD | KOBMANIFOLD ASSY, APPLICABLE: LLU00703-00726 LQU00018, Remarks: SEE (C. P. M) Superseded by part number: 2436R914F2 |
| . . | 2436R914F2 | [1] | INLET MANIFOLD | KOBMANIFOLD ASSY, APPLICABLE: LLU00727- LQU00019-, Remarks: SEE (C. P. M) |
| 16. | 2444Z2522F1 | [1] | TEE | KOBASSY |
| 17. | 2444Z2336 | [5] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| 18. | 2444Z2457 | [1] | TEE | KOB |
| 20. | 2444Z2526 | [1] | TEE | KOB |
| 21. | 2444Z2892 | [1] | TEE | KOB(Incls. O-Ring ZD12P01400) |
| 24. | 2444Z3465 | [1] | TEE | KOB(Incls. O-Ring ZD12P01100) |
| 25. | 2444T3309 | [1] | TEE | KOB(2) 3/8" PF x 1/4" PF x 60mm Long (Incls. O-Ring ZD12P01100) |
| 26. | 2444T2666 | [1] | TEE | KOB |
| 27. | 2444T3298 | [1] | TEE | KOB3/8" PF - 1/4" PF (Incls. O-Ring ZD12P01100) |
| 28. | 2444Z3832 | [1] | TEE | HIT |
| 29. | 2444T3402 | [1] | TEE | KOBTee -- (Incls. O-Ring 237-6004) Superseded by part number: HH55V06006G3 |
| 30. | ZH52X04000 | [7] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB1/4" PF (Incls. O-Ring 237-6004) |
| 31. | ZH52X06000 | [2] | TEE,30 Degree Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB3/8"PFx54mm Long (Incls. O-Ring ZD12P01400) |
| 32. | 2444Z2447F1 | [3] | ELBOW UNION | KOBELBOW ASSY (WITH FILTER) |
| 33. | 2444Z2338 | [10] | 90 ELBOW | KOB90° -- (1/4" PFx3/8" PF), (Incls. O-Ring ZD12P01100) |
| 34. | 2444Z2345 | [1] | 90 ELBOW | KOB90° -- (Incls. O-Rings ZD12P01400 & ZD12P01800) |
| 35. | 2444Z3185 | [4] | ELBOW | KOB |
| 36. | 2444Z3186 | [4] | ELBOW | KOB |
| 37. | 2444Z4081 | [2] | ELBOW | KOB(WITH FILTER) Superseded by part number: HH35X04004G3 |
| 38. | 2444Z3281 | [1] | ELBOW | KOB |
| 39. | ZH32X04000 | [24] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 40. | ZH32X06000 | [12] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 42. | 2444Z3783 | [1] | 90 ELBOW | KOB90° -- 1/4" PT (Incls. O-Ring ZD12P01100) |
| 46. | 2444Z2335 | [4] | CONNECTION | KOBCONNECTOR |
| 47. | 2444Z2337 | [12] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 49. | 2444T2533 | [2] | TEE | KOB(Incls. O-Ring ZD12P01400) Superseded by part number: 87635046 |
| 50. | 2444Z2525 | [11] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 51. | 2444Z2542 | [1] | HYD CONNECTOR | HITCONNECTOR |
| 52. | 2444Z2891 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 53. | 2444Z3280 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 54. | 2444Z3322D3 | [1] | HYD CONNECTOR | KOB1/8"PF x 1/8"PT x 25mm Long (Incls. O-Ring) |
| 55. | 2444Z3759 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 56. | 2444Z3163 | [3] | HYD CONNECTOR | KOBCONNECTOR Superseded by part number: 2444Z3178D2 |
| 57. | 2444Z3943 | [1] | ELEC CONNECTOR | KOB3/8" PF - 3/8"PFx 35mm Long (Incls. O-Ring ZD12P01400) |
| 58. | 2444Z3819 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 59. | 2444T2505 | [1] | HYD CONNECTOR | KOB1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400) |
| 60. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 61. | ZH22X04000 | [21] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 62. | ZH22X06000 | [3] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 64. | ZE72X04000 | [5] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 67. | 2425Z519 | [3] | BALL | KOB |
| 69. | 2420R1182D095 | [1] | HOSE | HOSE |
| 70. | 2420R1182D200 | [1] | HOSE | HOSE |
| 71. | 2418P20737 | [1] | RIGID TUBE | KOBTUBE |
| 72. | 2420R1182D035 | [1] | HOSE | KOB Superseded by part number: 2420R349D035 |
| 73. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 74. | 2420R1182D085 | [3] | HOSE | KOBHOSE Superseded by part number: 2420R349D085 |
| 75. | 2420R1182D045 | [1] | HOSE | HOSE |
| 76. | 2420R1182D050 | [1] | HOSE | KOBHOSE Superseded by part number: HX21E04050DX |
| 77. | 2420R1182D065 | [2] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2420R349D065 |
| 78. | 2420R1182D075 | [3] | HOSE | HOSE |
| 79. | 2420R1182D140 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: HX21E04140DX |
| 80. | 2420R11820185 | [1] | HOSE | |
| 81. | 2420R1182D145 | [1] | HOSE | HOSE |
| 82. | 2420R1182D165 | [1] | HOSE | HOSE |
| 83. | 2420R1182D230 | [1] | HOSE ASSY. | KOBHOSE Superseded by part number: 2420R349D230 |
| 84. | 2420R1182D055 | [2] | HOSE | HOSE |
| 85. | 2420R1182D060 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2420R349D060 |
| 86. | 2420R1182D070 | [1] | HOSE | HOSE |
| 87. | 2420R1182D100 | [3] | HOSE | KOB |
| 88. | 2420R1183D054 | [1] | HOSE | HOSE |
| 89. | 2444R1120D150 | [1] | HOSE | KOB1500mm Long (59-3/64 in) |
| 90. | 2444R1119D080 | [2] | FLEXIBLE HOSE | HITHOSE |
| 91. | 2444R1119D200 | [1] | HOSE | KOBPF 3/8, 2000mm Long (78-3/4 in) |
| 92. | 2444R1119D100 | [1] | HOSE | KOB3/8" PF, 1000mm Long (39-3/8 in) |
| 93. | 2420R1183D140 | [1] | HOSE | KOB |
| 94. | 2444R1119D044 | [2] | HOSE | KOB Superseded by part number: 2444R1119D046 |
| 95. | 2420R1183D165 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: HX21E06165DX |
| 96. | 2420R1183D170 | [3] | FLEXIBLE HOSE | KOBHOSE |
| 97. | 2420R1183D180 | [4] | HOSE | HOSE |
| 98. | 2420R1183D185 | [1] | HOSE, Remarks: (F1 ONLY) | HOSE, Remarks: (F1 ONLY) |
| . . | 2420R1183D185 | [2] | HOSE, Remarks: (F2 ONLY) | HOSE, Remarks: (F2 ONLY) |
| 99. | 2420R1183D210 | [8] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: HX21E06210DX |
| 100. | 2420R1183D160 | [1] | HOSE | HOSE |
| 101. | 2420R1185D080 | [1] | HOSE | HOSE |
| 102. | 2420R1183D255 | [2] | HOSE | HOSE |
| 103. | ZS13C10030 | [3] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 104. | 2420R1183D290 | [2] | HOSE | HOSE |
| 105. | ZS13C08016 | [4] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 106. | ZS13C08040 | [2] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 107. | ZS13C10020 | [6] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 108. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 109. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 110. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 111. | ZW22X08000 | [12] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 112. | ZW22X10000 | [11] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 113. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 115. | 2436U1444F1 | [1] | VALVE | KOBBYPASS, Remarks: SEE (C. P. M) |
| 116. | 2436U1171D21 | [1] | CHECK VALVE | KOBCHECK |
| 118. | 2444T2529 | [2] | TEE | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 119. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
| 120. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| 121. | 2444Z2447F2 | [1] | 90 ELBOW | KOBELBOW ASSY |
| 123. | 2444Z2535 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 127. | ZH22X12000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 128. | ZS13C10025 | [2] | CAPSCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 129. | 2420R1182D400 | [1] | HOSE | HOSE |
| 130. | 2420R1182D360 | [1] | HOSE | HOSE |
| 131. | 2420R1182D380 | [1] | HOSE | HOSE |
| 133. | 2420R11820170 | [1] | HOSE | |
| 136. | 2420R1182D110 | [3] | HOSE | KOB1100mm Long (43-19/64 in) Superseded by part number: 2420R349D110 |
| 137. | 2420R1182D120 | [1] | HOSE | HOSE |
| 138. | ZX21M12045 | [1] | FLEXIBLE HOSE | KOB450mm Long (17-23/32 in) |
| 139. | ZX22M08045 | [1] | HOSE | KOB |
| 40. | 2436U2755F1 | [1] | PILOT VALVE | KOBASSEMBLY, See (C.P.M) Superseded by part number: 2436U2755F3 |
| 141. | 2436U2606F1 | [2] | PILOT VALVE | KOBVALVE, PILOT, Remarks: SEE (C. P. M) |
| 142. | ZS23C06030 | [8] | SCREW,Hex Socket Head, M6 x 30mm | KOBM06x1.0x30mm |
| 143. | ZW22K06000 | [8] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 144. | ZW11K06000 | [8] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 145. | ZN13C14011 | [2] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 148. | 2406R256F1 | [2] | HANDLE | KOBASSY |
| 150. | 2414N4225 | [2] | BOOT | KOB |
| 151. | 2432Z290 | [45] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 152. | 2420Z1188 | [3] | GROMMET | KOB |
| 153. | 2420Z1287 | [1] | GROMMET | KOB |
| 163. | 2432Z290D6 | [15] | CLIP | KOBWire Ties -- 292mm Long Superseded by part number: PY01P01043D5 |
| 164. | 2414Z199D025 | [43] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 165. | 2420T3483 | [2] | GROMMET | KOB |
| 166. | 2432R314 | [2] | CLIP | KOB |
| 170. | 2444Z2477F6 | [1] | HYD CONNECTOR | KOBCONNECTOR ASSY (WITH FILTER) |
| 179. | 2420R1182D040 | [5] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2420R349D040 |
| 183. | 2420R1184D055 | [1] | HOSE | HOSE |
| 188. | 2444Z3758 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 191. | 2444R1111F3 | [1] | HYD CONNECTOR | KOBCONNECTOR ASSY |
| 191-1. | 2417T537 | [1] | SPRING | KOB |
| 191-2. | 2425Z551 | [1] | BALL | BALL |
| 191-4. | 2444Z3775 | [1] | TEE | KOB Superseded by part number: 2444Z3134 |
| 191-5. | 2444Z3787 | [1] | HYD CONNECTOR | KOBCONNECTOR Superseded by part number: 2444Z2294 |
| 191-8. | 2444Z3820 | [1] | 90 ELBOW | KOB90° -- 1/4" PT (Incls. O-Ring ZD12P01100) |
| 192. | 2444Z3766 | [1] | ELBOW | KOB |
| 194. | 2444Z3761 | [1] | TEE | KOB |
| 198. | 2444R1119D035 | [1] | FLEXIBLE HOSE | KOB350mm Long (13-49/64 in) |
| 200. | 2444Z2544 | [3] | TEE | KOB1/4"PTx60mm Long (No O-Ring supplied) |
| 202. | 2444Z3817F1 | [1] | ELBOW UNION | KOBELBOW ASSY |
| 203. | 2444Z3619 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 206. | 2420R1182D080 | [1] | HOSE | HOSE |
| 208. | 2432N568 | [1] | INSTALLER JIG | KOBPLATE, INSTRUCTION Superseded by part number: 2432N1751 |
| 209. | 2432N578 | [1] | PLATE | KOBINSTRUCTION |
| 210. | 2432N696 | [1] | INSTALLER JIG | KOBPLATE, INSTRUCTION Superseded by part number: 2432N1750 |
| 211. | 2432N1084 | [1] | INSTALLER JIG | KOBPLATE, INSTRUCTION Superseded by part number: 2432N1752 |
| 214. | 2444T2524 | [1] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 215. | 2444Z2447F8 | [1] | ELBOW UNION | KOBELBOW ASSY |
| 218. | 2420R1183D045 | [1] | HOSE | KOB |
| 219. | 2420R11830195 | [1] | HOSE | |
| 220. | 2444Z4080 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 223. | 2436U1142F1 | [1] | PILOT VALVE | KOBVALVE, PILOT, Remarks: SEE (C. P. M) |
| 224. | 2436U1314F1 | [1] | VALVE | KOBSOLENOID, Remarks: SEE (C. P. M) |
| 225. | 2406P5346 | [1] | PEDAL | KOB |
| 226. | 24100P2919F4 | [1] | LOCK | KOBASSY |
| 226-2. | 2406P4095 | [1] | LOCK | KOBLEVER |
| 226-3. | 2417T533 | [1] | SPRING | KOB |
| 226-4. | 2419T3784D1 | [1] | PIN | KOB |
| 226-5. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 226-6. | ZP16D04022 | [1] | PIN, SPLIT | |
| 226-9. | 2416P18650D1 | [1] | SUPPORT | KOB |
| 227. | 2414P8766 | [1] | TRIM | KOB |
| 228. | 2412T953 | [1] | DECAL | KOBSTICKER |
| 229. | 2479Z849 | [1] | SWITCH | KOBSWICH, TOGGLE Superseded by part number: 2479Z514 |
| 230. | 2479Z976D4 | [1] | HARNESS | KOB |
| 231. | 2479Z977 | [1] | HARNESS | KOB |
| 232. | 2479Z1441D2 | [1] | HARNESS | KOB |
| 234. | 2444T2592 | [1] | TEE | KOB3/8" PF - 1/4" PF (No O-Ring supplied) |
| 236. | 2444Z2530 | [1] | TEE | TEE |
| 238. | 2444Z2461 | [1] | TEE | KOB1/4" PF (Incls. O-Ring ZD12P01100) |
| 242. | 2444Z3179D2 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 244. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 245. | 2444Z2894 | [2] | 90 ELBOW | KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 246. | 2436P231F1 | [3] | VALVE PRESSURE RELIE | KOBVALVE, SELECTOR |
| 246-1. | 2436P232 | [1] | BODY, VALVE | |
| 246-2. | 2436T305 | [1] | VALVE | |
| 246-3. | 2418T8945D3 | [1] | ID 30 x OD 44 x Th 3.2mm | ID 30 x OD 44 x Th 3.2mm |
| 246-4. | ZR16X03000 | [1] | SNAP RING | KOBSNAP RING |
| 246-5. | 2420Z922 | [1] | CAPSCREW | CAPSCREW |
| 246-6. | ZD11G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 246-7. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 246-8. | ZD85G02500 | [1] | BACK-UP RING | KOBRing, Back-Up -- ID 25 x OD 30 x Th 1.25mm |
| 246-9. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 246-10. | ZD75G03000 | [1] | BACK-UP RING | KOBRING, BACK UP |
| 247. | ZS13C08020 | [2] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 248. | ZS13C08025 | [4] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 249. | 2444T2580 | [3] | TEE | KOB3/8" PF x 61mm Long (No O-Ring supplied), (F1 ONLY) |
| . . | 2444T2580 | [4] | TEE | KOB3/8" PF x 61mm Long (No O-Ring supplied), (F2 ONLY) |
| 250. | 2420R1185D045 | [1] | HOSE | HOSE |
| 251. | 2444R1119D150 | [1] | FLEXIBLE HOSE | KOBHOSE |
| 254. | 2420R1183D205 | [2] | HOSE | HOSE |
| 255. | 2420R1182D115 | [1] | HOSE | HOSE |
| 256. | 2420R1182D130 | [1] | HOSE | KOBHOSE Superseded by part number: 2420R349D130 |
| 257. | 2420R1182D150 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: HX21E04150DX |
| 258. | 2420R1182D240 | [2] | HOSE | HOSE |
| 259. | 2420R1182D250 | [1] | HOSE | HOSE |
| 260. | 2420R1182D260 | [1] | HOSE | HOSE |
| 261. | 2420R1184D060 | [1] | HOSE | HOSE |
| 262. | 2420R1184D035 | [1] | HOSE | HOSE |
| 263. | 2420R1184D030 | [1] | HOSE | HOSE |
| 265. | ZS13C06020 | [2] | M06x1.0x20mm | M06x1.0x20mm |
| 266. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 267. | ZS23C10016 | [1] | SCREW,Hex Socket Head, M10 x 16mm | KOBM10x1.50x16mm Superseded by part number: ZS28C10016 |
| 268. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 269. | ZW22X06000 | [2] | ID 06 x OD 12.2 x Th 1.5mm | ID 06 x OD 12.2 x Th 1.5mm |
| 270. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 271. | ZW22K10000 | [1] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 273. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
