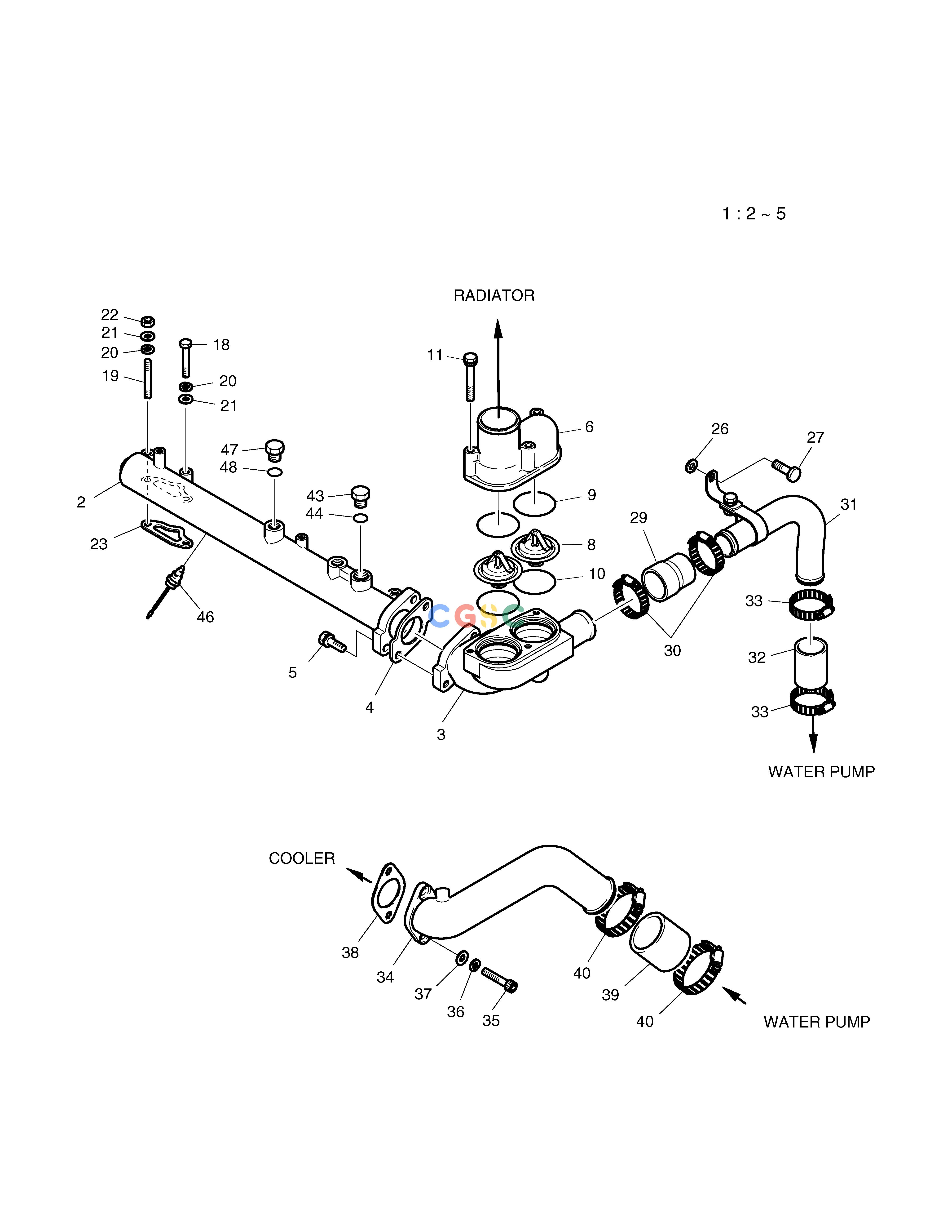

斗山零件查询COOLING SYSTEM SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
431 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06301-6054A
|
[1] |
COOLING WATER PIPE ASS'Y
|
|
| 1. |
65.06301-6084
|
[1] |
COOLING WATER PIPE ASS'Y
|
|
| 10. |
65.06901A0069
|
[2] |
GASKET
|
|
| 11. |
06.01923-3124
|
[3] |
BOLT ASS`Y M8X65
|
|
| 18. |
06.01923-3124
|
[2] |
BOLT ASS`Y M8X65
|
|
| 19. |
65.90201-0064
|
[2] |
BOLT;STUD M8X60
|
|
| 2. |
65.06301-0671A
|
[1] |
PIPE;COOLING WATER
|
|
| 2. |
65.06301-0240
|
[1] |
PIPE;COOLING WATER
|
|
| 20. |
06.16731-2107
|
[2] |
WASHER
|
|
| 21. |
06.15010-2311
|
[2] |
WASHER
|
|
| 22. |
06.11063-8214
|
[2] |
. NUT
|
|
| 23. |
65.06903-0018
|
[2] |
GASKET;COOLING WATER PIPE
|
|
| 23. |
65.06903-0028
|
[2] |
GASKET;COOLING WATER PIPE
|
|
| 26. |
65.90710-0019
|
[1] |
WASHER
|
|
| 27. |
06.01923-3218
|
[1] |
BOLT ASS`Y M10X35
|
|
| 29. |
65.96301-0204B
|
[1] |
HOSE;RUBBER
|
|
| 3. |
65.06404-0021B
|
[1] |
HOUSING;THERMOSTAT
|
|
| 30. |
06.67020-0108
|
[2] |
CLAMP;HOSE
|
|
| 31. |
65.06301-6037B
|
[1] |
PIPE;BY-PASS
|
|
| 32. |
04.27405-1506
|
[1] |
HOSE;RUBBER
|
|
| 33. |
06.67020-0108
|
[2] |
CLAMP;HOSE
|
|
| 34. |
65.06301-0675
|
[1] |
PIPE
|
|
| 35. |
06.02090-0513
|
[2] |
BOLT;SOCKET HEAD
|
|
| 36. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 37. |
06.15010-2312
|
[2] |
WASHER;PLAIN
|
|
| 38. |
65.06903-0020
|
[1] |
GASKET
|
|
| 39. |
65.96301-0205A
|
[1] |
HOSE;RUBBER
|
|
| 4. |
65.06903-0021
|
[1] |
GASKET(C/W PIPE-W/P)
|
|
| 40. |
06.67020-0110
|
[2] |
CLAMP;HOSE
|
|
| 43. |
06.08092-2408
|
[1] |
SCREW;PLUG
|
|
| 44. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
| 46. |
65.27435-6003
|
[1] |
SWITCH;WATER TEMP
|
|
| 46. |
65.90320-0019
|
[1] |
PLUG SCREW PT3/8
|
|
| 47. |
06.08092-2405
|
[1] |
PLUG SCREW M16 X 1.5
|
|
| 48. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
| 5. |
06.01923-3218
|
[2] |
BOLT ASS`Y M10X35
|
|
| 6. |
65.06405-0018A
|
[1] |
PIPE;WATER OUTLET
|
|
| 8. |
51.06402-0062
|
[2] |
THERMOSTAT
|
|
| 9. |
06.56342-1208
|
[2] |
O-RING
|
|
