沃尔沃零件查询MD5A; MD5B; MD5CMiscellaneous EquipmentOn Board KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
752 次

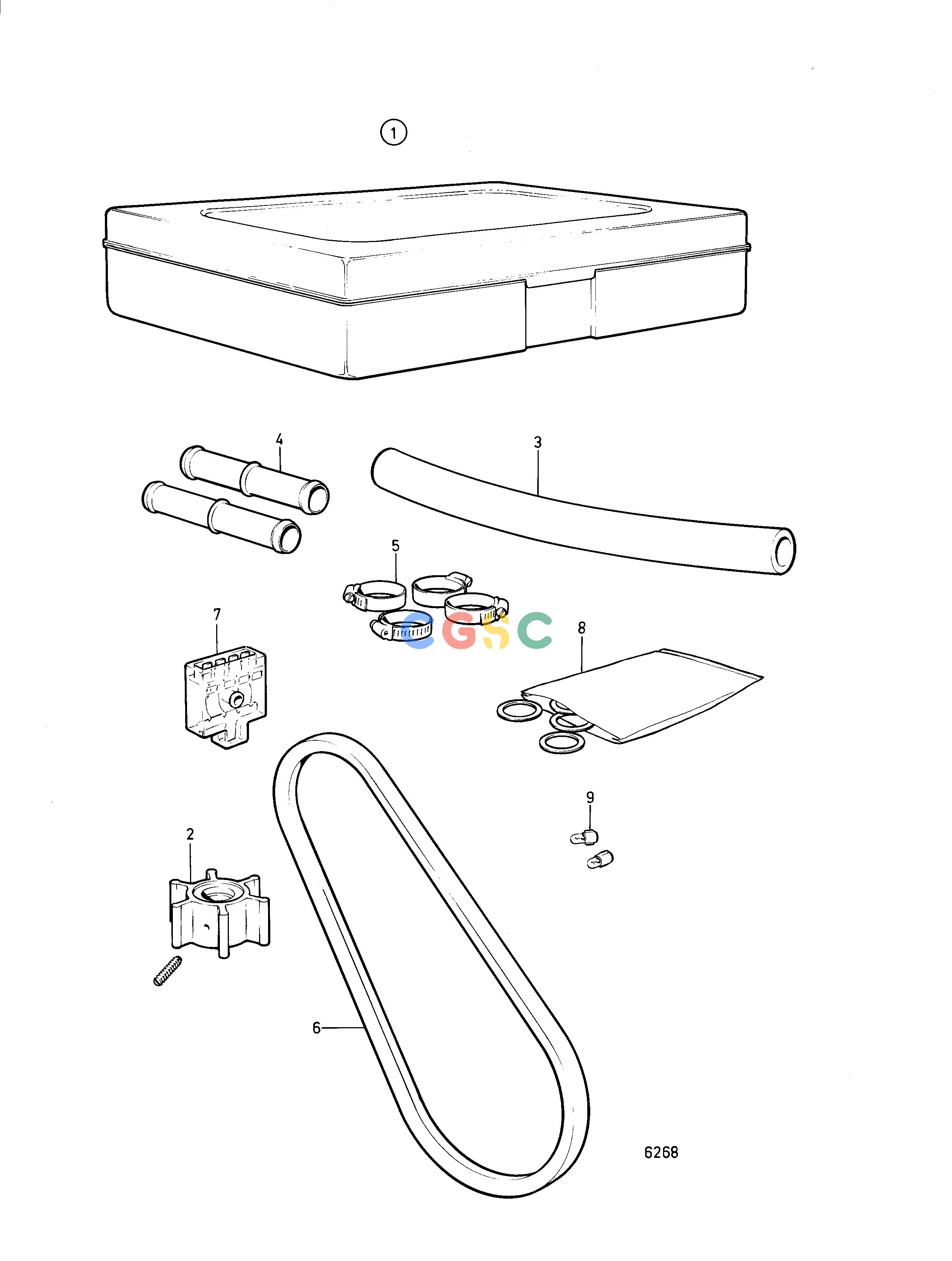

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
875641
|
[1] |
Onboard kit
|
MD5A
|
| 2. |
875583
|
[1] |
Impeller kit
|
|
| 3. |
952969
|
[1] |
Hose
|
L=250mm
|
| 4. |
831752
|
[2] |
Connecting pipe
|
|
| 5. |
961665
|
[4] |
Hose clamp
|
|
| 6. |
958322
|
[1] |
V-belt
|
L=1300mm
|
| 7. |
824823
|
[1] |
Fuse box
|
|
| 8. |
11991
|
[1] |
Gasket
|
|
| 8. |
11994
|
[2] |
Gasket
|
|
| 8. |
25534
|
[1] |
Gasket
|
|
| 8. |
957170
|
[6] |
Gasket
|
|
| 8. |
957171
|
[6] |
Gasket
|
|
| 8. |
957176
|
[2] |
Gasket
|
|
| 8. |
957178
|
[10] |
Gasket
|
|
| 9. |
19923
|
[2] |
Bulb
|
|
