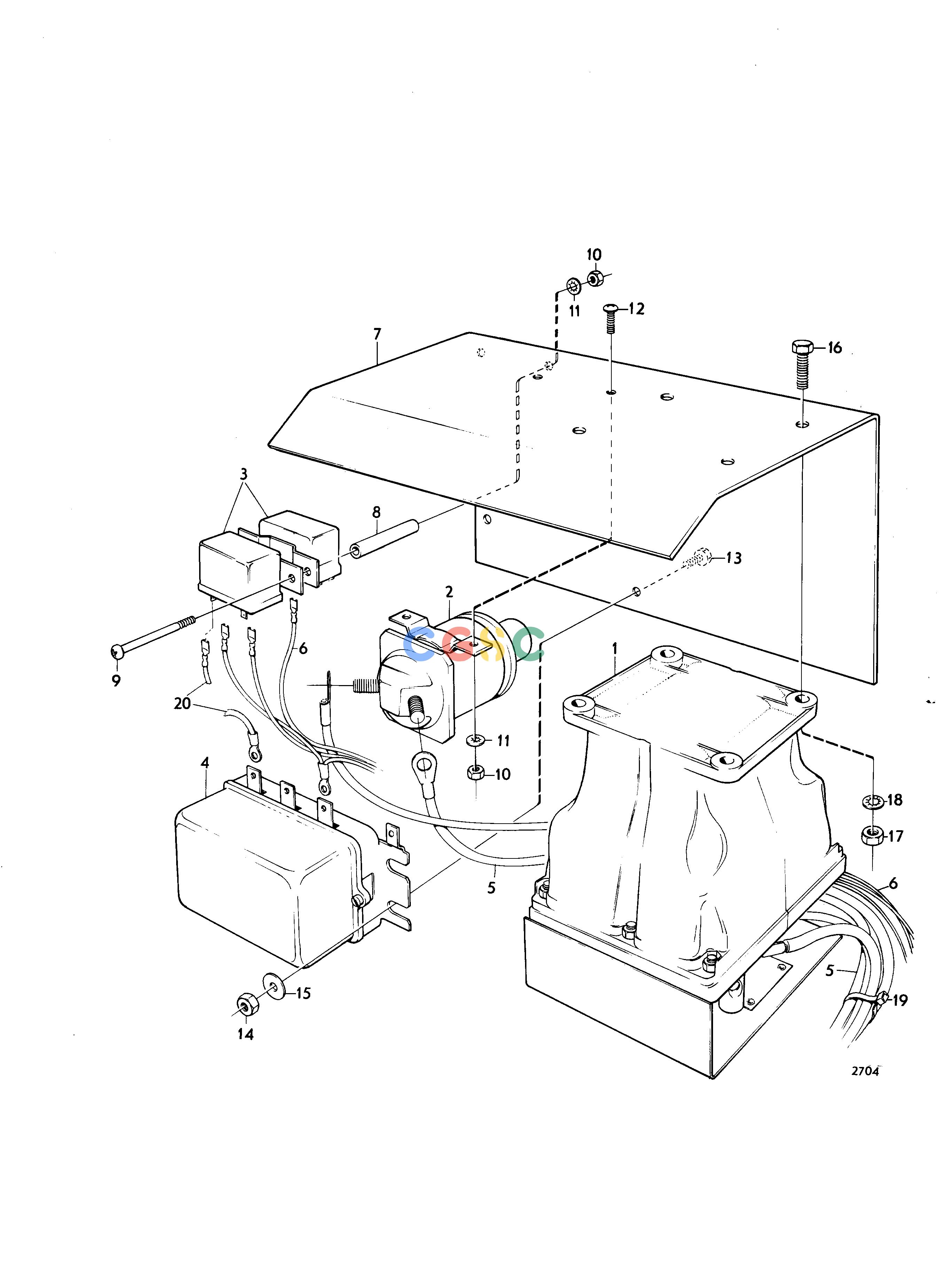

沃尔沃零件查询MD5A; MD5B; MD5CMiscellaneous EquipmentSeries Parallell Switch, 12V-24V, for Engine with DynamoEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
233933
|
[1] |
Switch
|
|
| 2. |
870730
|
[1] |
Actuator solenoid
|
|
| 3. |
|
|
|
(870798)
|
| 4. |
239964
|
[1] |
Governor
|
|
| 5. |
833466
|
[1] |
Cable block
|
|
| 6. |
|
|
|
|
| 7. |
833452
|
[1] |
Bracket
|
|
| 8. |
826602
|
[2] |
Spacer sleeve
|
|
| 9. |
955253
|
[2] |
Hexagon screw
|
|
| 10. |
955780
|
[4] |
Hexagon nut
|
|
| 11. |
955946
|
[4] |
Toothed washer
|
|
| 12. |
955244
|
[2] |
Hexagon screw
|
|
| 13. |
955272
|
[3] |
Hexagon screw
|
|
| 14. |
955781
|
[3] |
Hexagon nut
|
|
| 15. |
955948
|
[3] |
Toothed washer
|
|
| 16. |
955297
|
[4] |
Hexagon screw
|
|
| 17. |
955782
|
[4] |
Hexagon nut
|
|
| 18. |
955949
|
[4] |
Toothed washer
|
|
| 19. |
948210
|
[1] |
Cable tie
|
(827353) see group 3
|
| 20. |
|
|
|
See group 3
|
