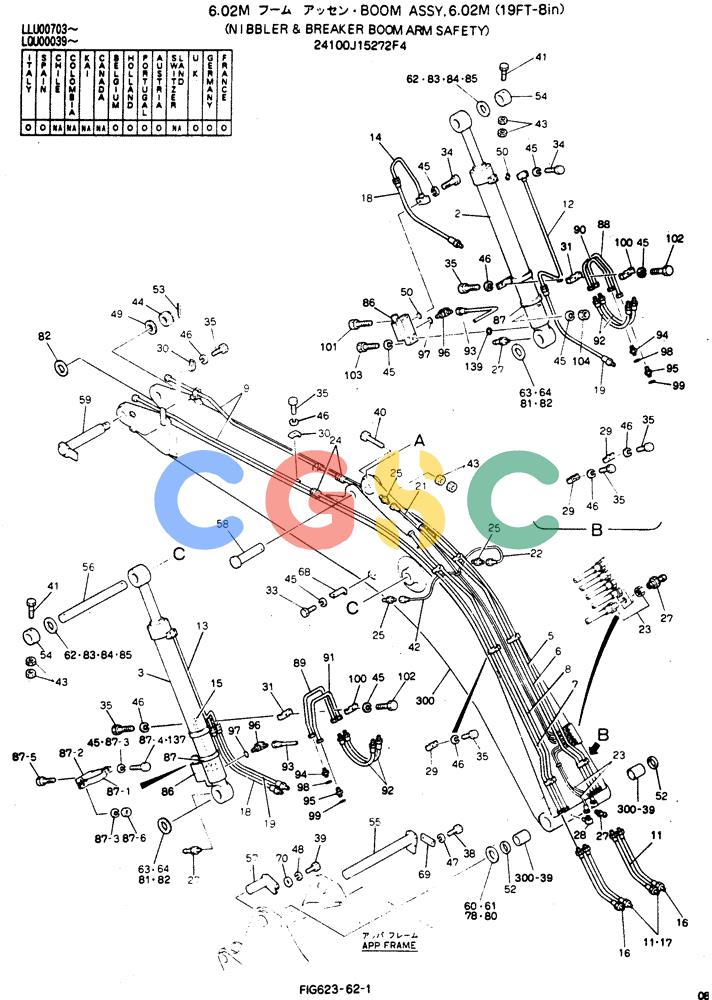

| . . | 24100J15272F4 | [1] | BOOM ASSY, 6.02M | |
| 2. | 2438U1135F1 | [1] | CYLINDER | KOBSEE (C. P. M) |
| 3. | 2438U1136F1 | [1] | CYLINDER | KOBSEE (C. P. M) Superseded by part number: 2438U1135F1 |
| 4. | 2438U1137F1 | [1] | CYLINDER | KOBSEE (C. P. M) Superseded by part number: 2438U1137F2 |
| 5. | 2418P26610 | [1] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22190 |
| 6. | 2418P27923 | [1] | TUBE | KOB |
| 7. | 2418P26612 | [1] | RIGID TUBE | KOB Superseded by part number: 2418P22527 |
| 8. | 2418P26613 | [1] | REPAIR KIT | KOB |
| 9. | 2418P26614 | [2] | RIGID TUBE | KOBTUBE Superseded by part number: 2418P22189 |
| 10. | 2418P27618 | [1] | RIGID TUBE | KOB |
| 11. | 2444R1176D1 | [1] | FLEXIBLE HOSE | KOB940mm Long (37 in), APPLICABLE: LLU00703-00829 LQU00039-00043 Superseded by part number: 2444R1090D1 |
| . . | 2444R1176D1 | [4] | FLEXIBLE HOSE | KOB940mm Long (37 in), APPLICABLE: LLU00830- LQU00044- Superseded by part number: 2444R1090D1 |
| 12. | 2418P22194D1 | [1] | RIGID TUBE | KOB |
| 13. | 2418P22194D2 | [1] | TUBE | KOB |
| 14. | 2418P23919 | [1] | RIGID TUBE | KOB |
| 15. | 2418P23920 | [1] | RIGID TUBE | KOB |
| 16. | 2444R1177D2 | [2] | FLEXIBLE HOSE | KOB940mm Long (37 in) |
| 17. | 2444R1090D1 | [3] | HOSE | KOBHOSE, APPLICABLE: LLU00703-00829 LQU00039-00043 |
| 18. | ZX26T12080 | [2] | FLEXIBLE HOSE | KOBHOSE, APPLICABLE: LLU00703-00829 LQU00039-00043 Superseded by part number: 2444R1177D1 |
| . . | 2444R1177D1 | [2] | FLEXIBLE HOSE | KOB800mm Long (31-1/2 in), APPLICABLE: LLU00830- LQU00044- |
| 19. | 2444R1171D1 | [2] | HOSE | KOB800mm Long (31-1/2 in) |
| 20. | ZX26T16080 | [1] | FLEXIBLE HOSE | KOBHOSE, APPLICABLE: LLU00703-00829 LQU00039-00043 Superseded by part number: 2444R1175D1 |
| . . | 2444R1175D1 | [1] | HOSE | KOB800mm Long (31-1/2 in), APPLICABLE: LLU00830- LQU00044- |
| 21. | 2420R1187D325 | [1] | HOSE HOSE | HOSE HOSE |
| 22. | 2420R1187D265 | [1] | HOSE HOSE | HOSE HOSE |
| 23. | 2420R1187D094 | [2] | HOSE HOSE | HOSE HOSE |
| 24. | ZF23B28000 | [2] | HYD CONNECTOR | KOB Superseded by part number: 47641651 |
| 25. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 26. | 2444R2522D1 | [1] | FLEXIBLE HOSE | KOB900mm Long (35-7/16 in) |
| 27. | ZG91S02000 | [9] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 28. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 29. | 2432T2434 | [6] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| 30. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 31. | 2432T2237 | [2] | CLAMP | |
| 32. | 2432T2363 | [1] | CLAMP | KOB Superseded by part number: YN42H01078P1 |
| 33. | ZS13C10020 | [1] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 34. | ZS13C10070 | [16] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 35. | ZS13C12055 | [12] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 36. | ZS13C12065 | [1] | SCREW | KOBM12x1.75x65mm Superseded by part number: ZS18C12065 |
| 37. | ZS13C10090 | [4] | SCREW | KOBM10x1.50x90mm Superseded by part number: ZS18C10090 |
| 38. | ZS13C14030 | [2] | SCREW | KOBM14x2.0x30mm Superseded by part number: ZS18C14030 |
| 39. | ZS13C16030 | [2] | SCREW | KOBM16x2.0x30mm |
| 40. | 2420T4330D2 | [1] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm Superseded by part number: HS18C16150G1 |
| 41. | 2420T4330D3 | [2] | SCREW,M16 x 2 x 160mm | KOBM16x2.0x160mm |
| 42. | 2420R1187D275 | [1] | HOSE HOSE | HOSE HOSE |
| 43. | ZN13C16013 | [1] | NUT | KOBM16x2.0mm |
| 44. | 2420Z1047 | [1] | SLOTTED NUT | KOBM56x5.5mm Castle |
| 45. | ZW22X10000 | [42] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 46. | ZW22X12000 | [23] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 47. | ZW22X14000 | [12] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 48. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 49. | 2418Z715 | [1] | WASHER | KOBID 58 x OD 105 x Th 9.0mm |
| 50. | ZD12P02600 | [5] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 51. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 52. | 2445R220D13 | [2] | DUST CAP | KOBSeal -- ID 100 x OD 120 x Th 7mm |
| 53. | ZP15D08100 | [1] | SPRING | KOBCotter -- OD 08 x 100mm Long |
| 54. | 2418T17477 | [2] | COLLAR CLAMP | KOB |
| 55. | 2419T4676 | [1] | PIN | KOBOD 100 x 894mm Long Superseded by part number: 2419T7608 |
| 56. | 2419T4680D1 | [1] | PIN | KOBPIN |
| 57. | 2419P3690 | [2] | PIN | KOBPin -- OD 90 x 227mm Long Superseded by part number: 2419P4079 |
| 58. | 2419P3418 | [1] | PIN | KOBPIN Superseded by part number: 2419P3398D2 |
| 59. | 2419T4681 | [1] | PIN | KOBPIN Superseded by part number: 2419P3438 |
| 60. | B16T0442D84 | [1] | SHIM,205mm OD x 102mm ID x 0.9mm Thk | KOBID 102 x OD 205 x Th 0.9mm |
| 61. | B16T0442D38 | [1] | SHIM,205mm OD x 102mm ID x 1.6mm Thk | KOBID 102 x OD 205 x Th 1.6mm |
| 62. | B16T0442D35 | [2] | SHIM,160mm OD x 97mm ID x 1.6mm Thk | KOBID 97 x OD 160 x Th 1.6mm |
| 63. | B16T0442D13 | [3] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 64. | B16T0442D14 | [3] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 65. | ZS23C12040 | [4] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 66. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 67. | ZE13X16000 | [2] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 68. | 2416T13056 | [1] | BRACKET | KOBBRACKET |
| 69. | 2418T12469 | [1] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| 70. | 2418T17550 | [2] | PLATE | KOBID 18 x OD 60 x Th 06mm |
| 78. | B16T0442D60 | [1] | SHIM,205mm OD x 102mm ID x 0.5mm Thk | KOBID 102 x OD 205 x Th 0.5mm |
| 80. | B16T0442D83 | [1] | SHIM,205mm OD x 102mm ID x 1.2mm Thk | KOBID 102 x OD 205 x Th 1.2mm |
| 81. | B16T0442D40 | [3] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOBID 92 x OD 160 x Th 0.9mm |
| 82. | B16T0442D53 | [4] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOBID 92 x OD 160 x Th 0.5mm |
| 83. | B16T0442D85 | [2] | SHIM,160mm OD x 97mm ID x 1.2mm Thk | KOBID 97 x OD 160 x Th 1.2mm |
| 84. | B16T0442D86 | [2] | SHIM,160mm OD x 97mm ID x 0.9mm Thk | KOBID 97 x OD 160 x Th 0.9mm |
| 85. | B16T0442D87 | [2] | SHIM,160mm OD x 97mm ID x 0.5mm Thk | KOBID 97 x OD 160 x Th 0.5mm |
| 86. | 2436R767F2 | [2] | VALVE | KOBASSY, SEE (C. P. M) |
| 87. | 2432R229F1 | [2] | BAND | KOB |
| 87-1. | 2438U914D1S24 | [1] | U-BRACKET | KOBBAND |
| 87-2. | 2436R764S2 | [1] | BAND PLATE, SUB | BAND PLATE, SUB |
| 87-3. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 87-4. | ZS11C10035 | [2] | SCREW,Hex, M10 x 35mm, Cl 4.8 | KOBCAPSCREW Superseded by part number: ZS18C10035 |
| 87-5. | ZS23C10025 | [2] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 87-6. | ZN16C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 88. | 2418P29002 | [1] | TUBE | KOB |
| 89. | 2418P29003 | [1] | TUBE | KOB |
| 90. | 2418P29004 | [1] | TUBE | KOB |
| 91. | 2418P29005 | [1] | TUBE | KOB |
| 92. | 2444R1133D5 | [4] | HOSE | KOB760mm Long (29-59/64 in) |
| 93. | 2444R1102D1 | [1] | FLEXIBLE HOSE | KOB1050mm Long (41-21/64 in) |
| 94. | ZA23F15006 | [2] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| 95. | ZA23F15008 | [2] | HYD CONNECTOR | KOB |
| 96. | ZA33F10004 | [2] | ELBOW | KOB |
| 97. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 98. | ZD12P01400 | [3] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 99. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 100. | 2432T2340 | [2] | CLAMP | KOB |
| 101. | ZS13C10025 | [6] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 102. | ZS13C10040 | [4] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 103. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 104. | ZN13C10008 | [12] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 107. | 2436U2822F1 | [1] | VALVE | KOBASSY, SEE (C. P. M) |
| 108. | 2415P248 | [1] | RUBBER PAD | KOBBAND ASSY |
| 109. | 2432T5529 | [3] | CLAMP | KOB |
| 110. | 2432T5530 | [3] | CLAMP | KOB |
| 111. | 2432T5531 | [3] | CLAMP | KOBDouble -- 82x32x19mm Threaded M12 |
| 112. | 2432T5532 | [3] | CLAMP | KOBDouble -- 82x32x19mm Hole Only |
| 115. | 2444Z3499 | [1] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 39mm Long |
| 116. | 2444Z3251 | [1] | FITTING | KOB3/8"PF - M26x1.50 x 39mm Long |
| 117. | ZA24F18008 | [1] | HYD CONNECTOR | KOB |
| 118. | 2444T4609F1 | [1] | HYD CONNECTOR | KOB |
| 119. | ZF23E10006 | [1] | HYD CONNECTOR | KOB |
| 120. | ZA53B15000 | [1] | TEE | KOB |
| 121. | 2418P29000 | [1] | TUBE | |
| 122. | 2418P29007 | [1] | TUBE | KOB |
| 123. | 2418P28999 | [1] | RIGID TUBE | KOB |
| 124. | 2444R892D12 | [1] | HOSE | KOB |
| 125. | 2444R949D10 | [1] | HOSE | HOSE |
| 126. | ZA23H15006 | [1] | HYD CONNECTOR | KOB |
| 127. | ZS13C12060 | [4] | SCREW | KOBM12x1.75x60mm Superseded by part number: ZS18C12060 |
| 129. | ZS13C12045 | [6] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 137. | ZS13C10035 | [6] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 138. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 139. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 201. | 2418P28985 | [2] | TUBE | KOBTUBE |
| 206. | ZF23B35000 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 211. | ZC26X35016 | [10] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 212. | ZS13C14060 | [10] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 215. | 2420Z985 | [2] | PLUG | KOBPLUG |
| 219. | 2414Z199D100 | [6] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
| 230. | 2432P2807 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2276 |
| 231. | 2432P2806 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2275 |
| 300. | 2411J5038D4F1 | [1] | BOOM, N&B BOOM | BOOM, N&B BOOM |
| 300-39. | 2405T1825 | [2] | BUSHING | KOB |
| 300-41. | 2416T24891D2 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
| 300-42. | 2416T12924D3 | [4] | LINK BLOCK | KOBBLOCK, TAPPED |
| 300-44. | 2416T14115 | [2] | BLOCK | KOBBLOCK, TAPPED |
| 300-45. | 2416T13504D4 | [2] | BLOCK | KOBBLOCK, TAPPED |
| 301. | 2418N3276D1 | [1] | TUBE | KOBTUBE |
| 302. | 2418N3276D2 | [1] | TUBE | KOBTUBE |
