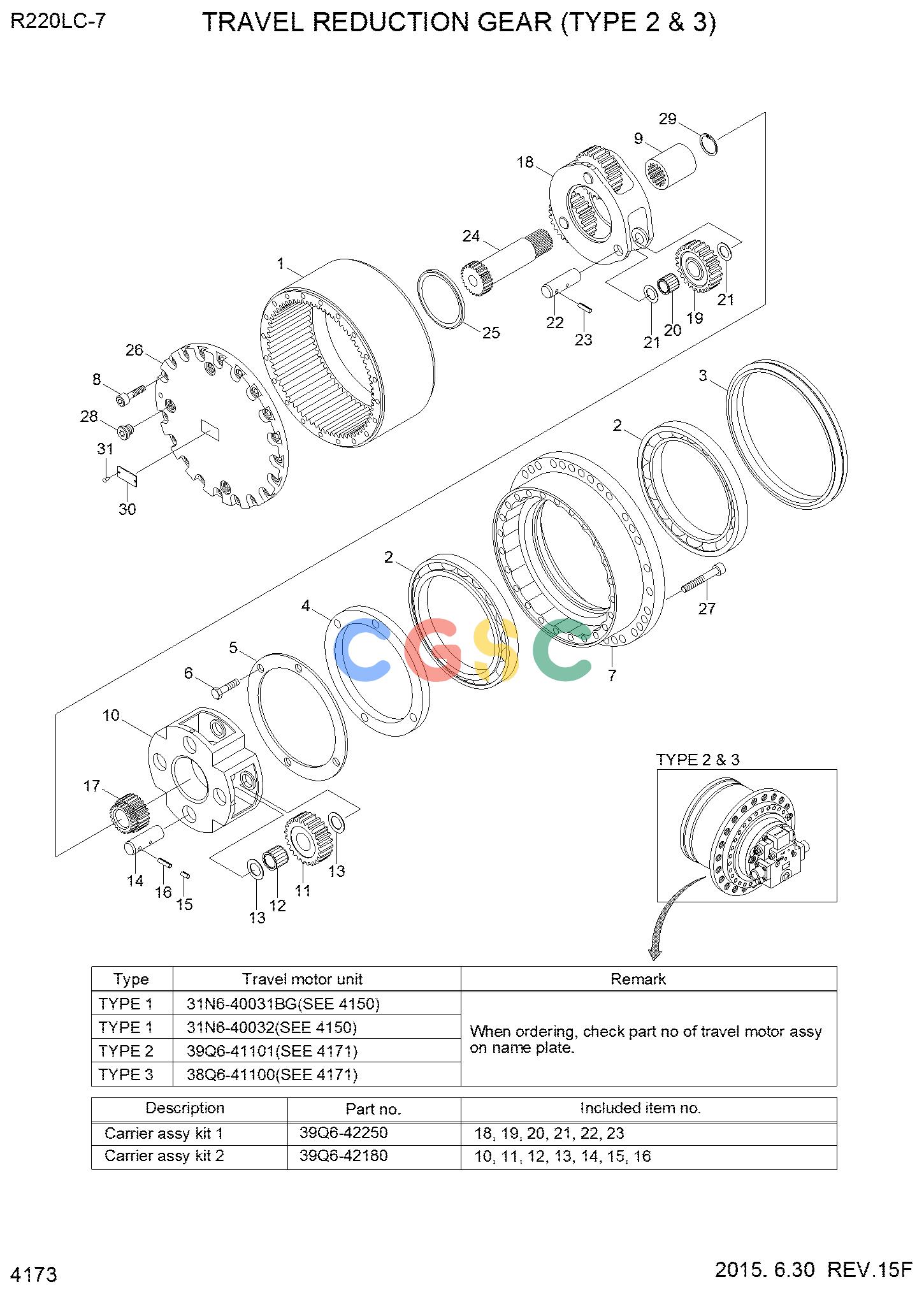

现代零件查询R220LC-7(IND,EXPORT) TRAVEL REDUCTION GEAR (TYPE 2 & 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
177 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
TRAVEL MOTOR ASSY
|
|
| -2. |
39Q6-42100
|
[1] |
TRAVEL REDUCTION GEAR
|
|
| 1. |
39Q6-42110
|
[1] |
GEAR-RING
|
|
| 2. |
39Q6-42120
|
[2] |
BEARING-ANG.BALL
|
|
| 3. |
39Q6-42130
|
[2] |
SEAL ASSY-FLOATING
|
|
| 4. |
39Q6-42140
|
[1] |
RING-NUT
|
|
| 5. |
39Q6-42150
|
[1] |
PLATE-LOCK
|
|
| 6. |
S017-120166
|
[4] |
BOLT-HEX
|
|
| 7. |
39Q6-42160
|
[1] |
HOUSING
|
|
| 8. |
S129-070206
|
[20] |
BOLT-SOCKET,UNIFIED
|
|
| 9. |
39Q6-42170
|
[1] |
COUPLING
|
|
| K10. |
39Q6-42190
|
[1] |
CARRIER 2
|
|
| K11. |
39Q6-42200
|
[4] |
GEAR-PLANATARY 2
|
|
| K12. |
39Q6-42210
|
[4] |
BEARING-NEEDLE 2
|
|
| K13. |
39Q6-42220
|
[8] |
WASHER-THRUST 2
|
|
| K14. |
39Q6-42230
|
[4] |
PIN-CARRIER 2
|
|
| K15. |
S472-800164
|
[4] |
PIN-SPRING
|
|
| K16. |
39Q6-42350
|
[4] |
PIN-SOLID 2
|
|
| 17. |
39Q6-42240
|
[1] |
GEAR-SUN 2
|
|
| K18. |
39Q6-42260
|
[1] |
CARRIER 1
|
|
| K19. |
39Q6-42270
|
[3] |
GEAR-PLANETARY 1
|
|
| K20. |
39Q6-42280
|
[3] |
BEARING-NEEDLE 1
|
|
| K21. |
39Q6-42290
|
[6] |
WASHER-THRUST 1
|
|
| K22. |
39Q6-42300
|
[3] |
PIN-CARRIER 1
|
|
| K23. |
S472-600364
|
[3] |
PIN-SPRING
|
|
| 24. |
39Q6-42310
|
[1] |
GEAR-SUN 1
|
|
| 25. |
39Q6-42320
|
[1] |
PLATE-THRUST
|
|
| 26. |
39Q6-42330
|
[1] |
COVER
|
|
| 27. |
S109-16110D
|
[24] |
BOLT-SOCKET
|
|
| 28. |
P220-110205
|
[3] |
PLUG-HEX
|
|
| 29. |
S602-035001
|
[1] |
RING-RETAINING
|
|
| 30. |
39Q6-42341
|
[1] |
NAME PLATE
|
|
| 31. |
39Q6-41800
|
[2] |
RIVET
|
|
| 32. |
S631-024001
|
[3] |
O-RING
|
|
| K. |
39Q6-42250
|
[1] |
CARRIER ASSY KIT 1
|
|
| K. |
39Q6-42180
|
[1] |
CARRIER ASSY KIT 2
|
|
| -1. |
@
|
[1] |
TRAVEL MOTOR UNIT
|
|
| K. |
39Q6-42250
|
[1] |
CARRIER ASSY KIT 1
|
|
| K. |
39Q6-42180
|
[1] |
CARRIER ASSY KIT 2
|
|
