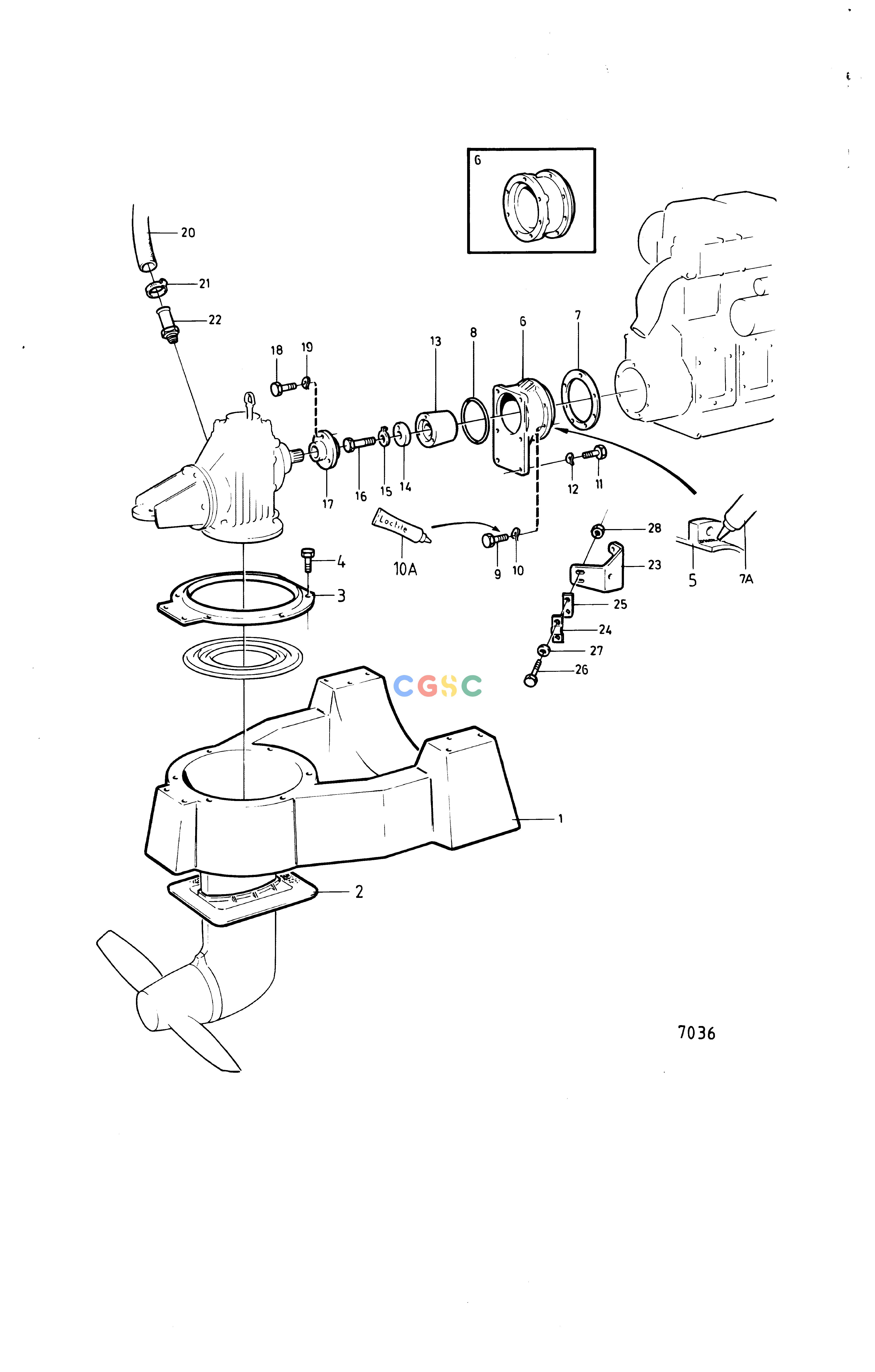

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsConnecting Components Sail Boat Drive Unit 120SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
312 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850895
|
[1] |
Engine bed
|
See group 2A
|
| 2. |
850353
|
[1] |
Cover plate
|
See group 2A
|
| 3. |
852734
|
[1] |
Clamping ring
|
|
| 4. |
946730
|
[6] |
Hexagon screw
|
L=25mm
|
| 5. |
852106
|
[1] |
Extension part
|
Included in drive unit 120S., See group 4C
|
| 6. |
852113
|
[1] |
Intermediate ring
|
|
| 7. |
|
|
|
Use sealing compound 841261., For spacer ring 852113, MO-30348.
|
| 7A. |
841261
|
[1] |
Sealant
|
MD11D MO-57099. MD17D MO-18972. MD5C MO-30348. MD7B MO-35024., See group 9
|
| 7. |
852632
|
[1] |
O-ring
|
For spacer ring 852113, MO 30349-.
|
| 8. |
925260
|
[1] |
O-ring
|
Included in drive unit 120S., See group 4C
|
| 9. |
959221
|
[7] |
Hex. socket screw
|
For spacer ring 852113
|
| 9. |
852630
|
[7] |
Screw
|
MD11D MO 57100-. MD17D MO 18973-. MD5C MO 30349-. MD7B MO 35025-., L=22mm
|
| 10. |
941907
|
[7] |
Spring washer
|
For spacer ring 852113.
|
| 10. |
852596
|
[7] |
Washer
|
MD11D MO 57100-. MD17D MO 18973-. MD5C MO 30349-. MD7B MO 35025-
|
| 10A. |
1161053
|
[1] |
Locking fluid
|
MD11D MO 57100-. MD17D MO 18973-. MD5C MO 30349-. MD7B MO 35025-., See group 9
|
| 11. |
959239
|
[4] |
Hex. socket screw
|
Included in drive unit 120S., See group 4C
|
| 12. |
942336
|
[4] |
Spring washer
|
Included in drive unit 120S., See group 4C
|
| 13. |
852120
|
[1] |
Clutch flange
|
See group 2A
|
| 14. |
852123
|
[1] |
Spacer washer
|
See group 2A
|
| 15. |
833849
|
[1] |
Lock washer
|
See group 2A
|
| 16. |
955341
|
[1] |
Hexagon screw
|
See group 2A
|
| 17. |
852119
|
[1] |
Clutch flange
|
See group 2A
|
| 18. |
955295
|
[3] |
Hexagon screw
|
See group 2A
|
| 19. |
941907
|
[3] |
Spring washer
|
See group 2A
|
| 20. |
952969
|
[1] |
Hose
|
L=450mm
|
| 21. |
961665
|
[1] |
Hose clamp
|
|
| 22. |
851779
|
[1] |
Nipple
|
|
| 23. |
838373
|
[1] |
Bracket
|
See group 2D
|
| 24. |
21471054
|
[1] |
Bracket
|
|
| 25. |
819068
|
[1] |
Washer
|
|
| 26. |
955246
|
[2] |
Hexagon screw
|
|
| 27. |
940090
|
[2] |
Washer
|
|
| 28. |
946577
|
[2] |
Lock nut
|
|
