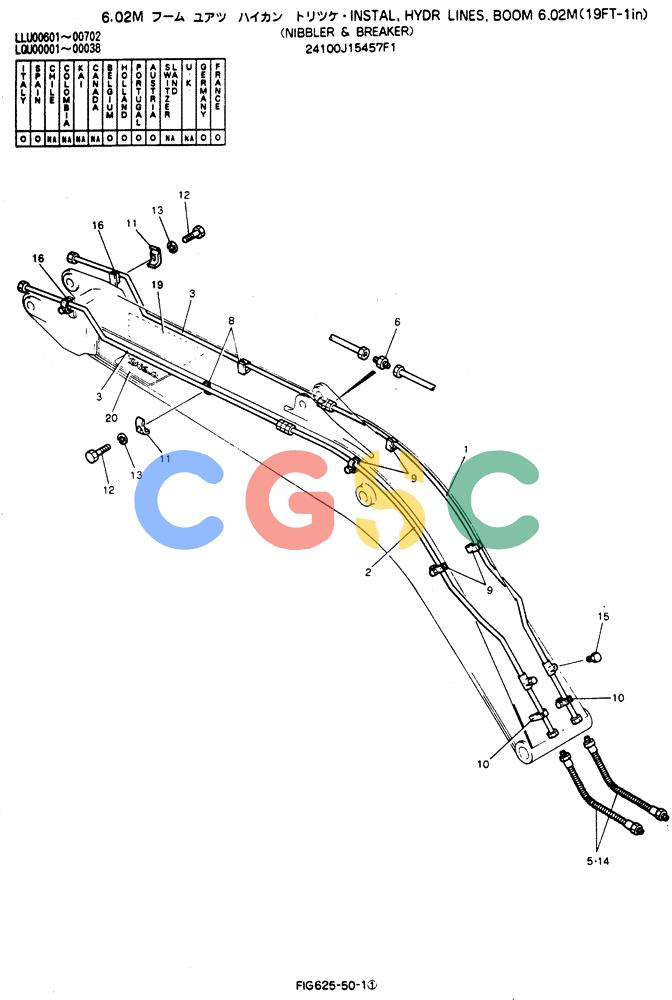

神钢零件查询(BREAKER) - NIBBLER AND BREAKER ATTACHMENT - SK220LC EXCAVATORS (9/04-) (625-50) - Install, Hydr Lines, Boom 6.02M (Nibbler and Breaker) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J15457F1 | [1] | INSTAL, HYDR LINES | |
| 1. | 2418N327601 | [1] | TUBE | |
| 2. | 2418N3276D2 | [1] | TUBE | KOB |
| 3. | 2418P22206D1 | [2] | TUBE | TUBE |
| 5. | 2444R1090D1 | [2] | HOSE | KOB |
| 6. | ZF23B35000 | [2] | HYD CONNECTOR | KOBCONNECTOR |
| 8. | 2416T14115 | [2] | BLOCK | KOBTAPPED |
| 9. | 2416T12924D3 | [4] | LINK BLOCK | KOBBLOCK, TAPPED |
| 10. | 2416T13504D4 | [2] | BLOCK | KOBTAPPED |
| 11. | ZC26X35016 | [10] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 12. | ZS13C14060 | [10] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 13. | ZW22X14000 | [10] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 14. | 2414Z199D100 | [6] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
| 15. | 2420Z985 | [2] | PLUG | KOB |
| 16. | 2416T24891D2 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
| 19. | 2432P2807 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2276 |
| 20. | 2432P2806 | [1] | TYPE PLATE | KOBNAME PLATE Superseded by part number: 2432P2275 |
