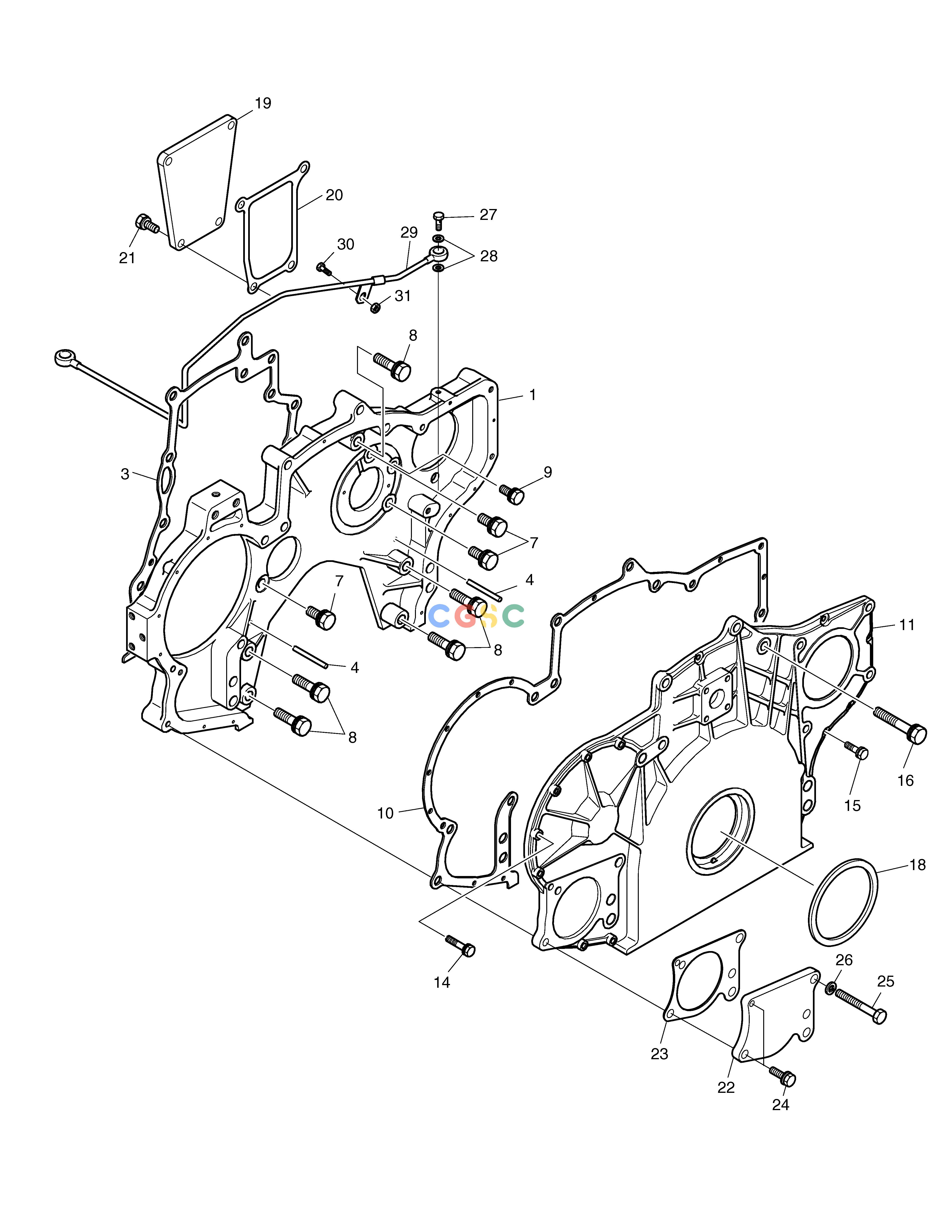

斗山零件查询TIMING GEAR CASE SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
314 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.01304-0021A
|
[1] |
CASE;TIMING GEAR
|
65.01304-0023C
|
| 1. |
65.01304-0023C
|
[1] |
CASE;TIMING GEAR
|
|
| 10. |
65.01903-0050
|
[1] |
GASKET;TIMING GEAR CASE COVER
|
|
| 11. |
65.01305-5049F
|
[1] |
COVER;TIMING GEAR CASE
|
65.01305-5049G
|
| 11. |
65.01305-5049G
|
[1] |
T.G.C. COVER ASS'Y
|
|
| 14. |
06.01923-2917
|
[7] |
BOLT ASS`Y M6X30
|
|
| 15. |
06.01923-2914
|
[6] |
BOLT ASS`Y M6X22
|
|
| 16. |
06.01953-3326
|
[5] |
BOLT ASS'Y M12X1.5X75
|
|
| 18. |
65.01510-0157
|
[1] |
SEAL;OIL(FRONT)
|
|
| 19. |
65.91601-0003
|
[1] |
COVER;BLIND
|
|
| 19. |
65.91601-6003A
|
[1] |
COVER;BLIND
|
|
| 20. |
65.54901-0025A
|
[1] |
GASKET;AIR COMPRESSOR
|
|
| 21. |
06.01913-3217
|
[4] |
BOLT ASS'Y M10X30
|
|
| 22. |
60.91601-0010
|
[1] |
COVER
|
|
| 23. |
65.47901-0010
|
[1] |
GASKET;P/S PUMP
|
|
| 24. |
06.01913-3219
|
[2] |
BOLT ASS'Y M10X40
|
|
| 25. |
06.01013-9221
|
[1] |
BOLT;HEX. M10X80
|
|
| 26. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 27. |
65.98150-0033
|
[1] |
SCREW;HOLLOW
|
|
| 28. |
06.56180-0712
|
[2] |
RING;SEAL
|
|
| 29. |
65.05701-5361
|
[1] |
OIL PIPE ASS'Y
|
|
| 3. |
65.01903-0048
|
[1] |
GASKET
|
65.01903-0048B
|
| 3. |
65.01903-0048B
|
[1] |
GASKET
|
|
| 30. |
06.01913-2910
|
[1] |
. BOLT;HEX. M6X12
|
|
| 31. |
06.11063-8212
|
[1] |
NUT
|
|
| 4. |
65.91010-0017
|
[2] |
PIN;DOWEL M6X60
|
|
| 7. |
06.01943-3317
|
[3] |
BOLT ASS`Y M12X1.5X30
|
|
| 8. |
06.01943-3320
|
[5] |
BOLT ASS'Y M12X1.5X45
|
|
| 9. |
06.01913-3215
|
[1] |
BOLT ASS'Y M10X25
|
|
