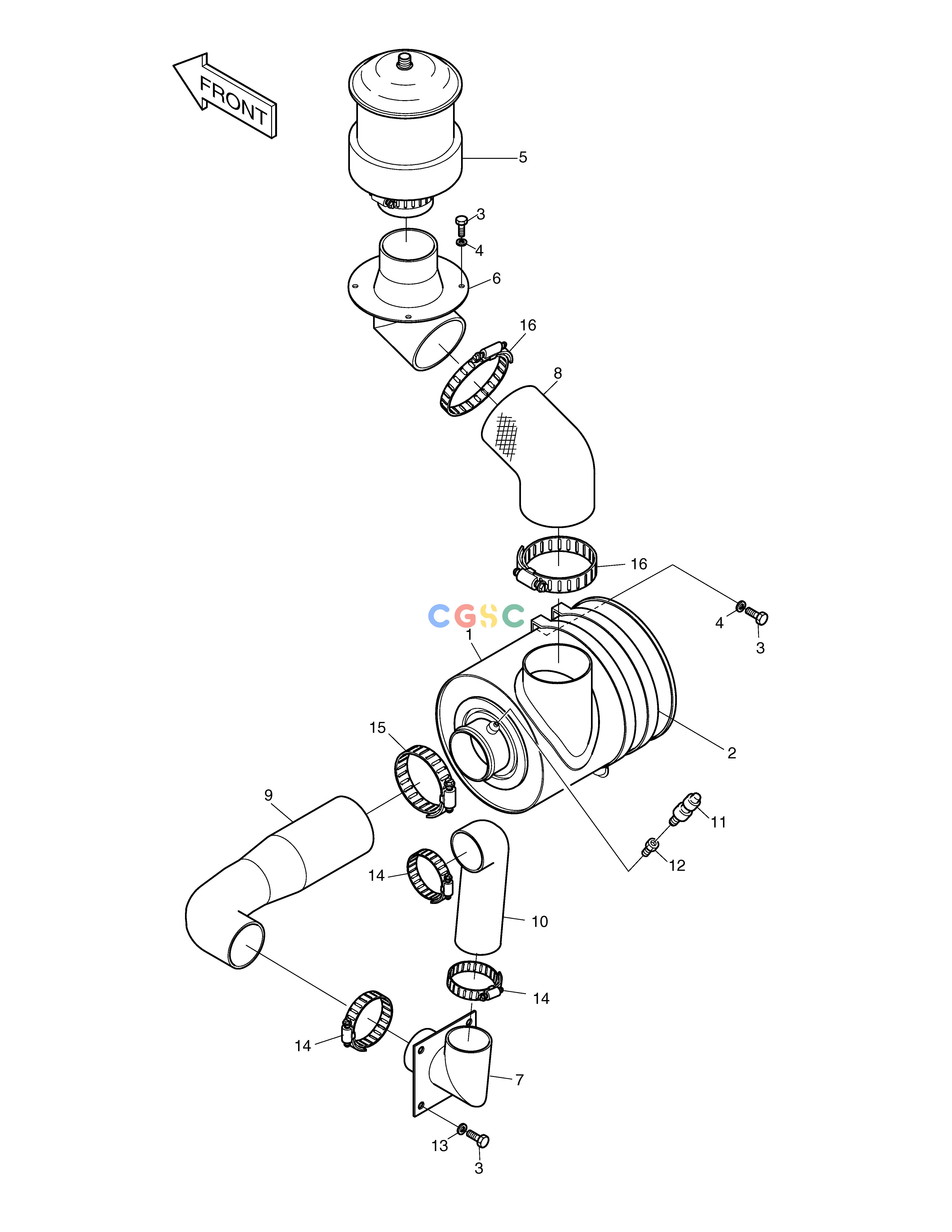

斗山零件查询AIR CLEANER(1) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2204-2025A
|
[-] |
AIR CLEANER ASS'Y
|
|
| 1. |
2204-2012A
|
[1] |
AIR CLEANER
|
|
| 10. |
2185-1720
|
[1] |
HOSE;AIR
|
|
| 11. |
2170-9005
|
[1] |
INDICATOR
|
|
| 12. |
2181-2690
|
[1] |
ADAPTER;FILTER
|
|
| 13. |
2114-1058D10
|
[4] |
WASHER
|
|
| 14. |
S8450105
|
[3] |
CLAMP;HOSE
|
|
| 15. |
S8450127
|
[1] |
CLAMP;HOSE
|
|
| 16. |
S8450158
|
[2] |
CLAMP;HOSE
|
|
| 2. |
2124-1552
|
[2] |
BAND;AIR CLEANER
|
2124-1552A
|
| 2. |
2124-1552A
|
[2] |
BAND;AIR CLEANER
|
|
| 3. |
S0512053
|
[12] |
BOLT
|
|
| 4. |
S5010613
|
[8] |
WASHER
|
|
| 5. |
2204-9032A
|
[1] |
PRE-CLEANER
|
|
| 6. |
2193-1427
|
[1] |
PIPE;AIR
|
|
| 7. |
2193-1431A
|
[1] |
PIPE;AIR
|
|
| 8. |
2185-1716A
|
[1] |
HOSE;AIR
|
|
| 9. |
2185-1719B
|
[1] |
HOSE;AIR
|
|
