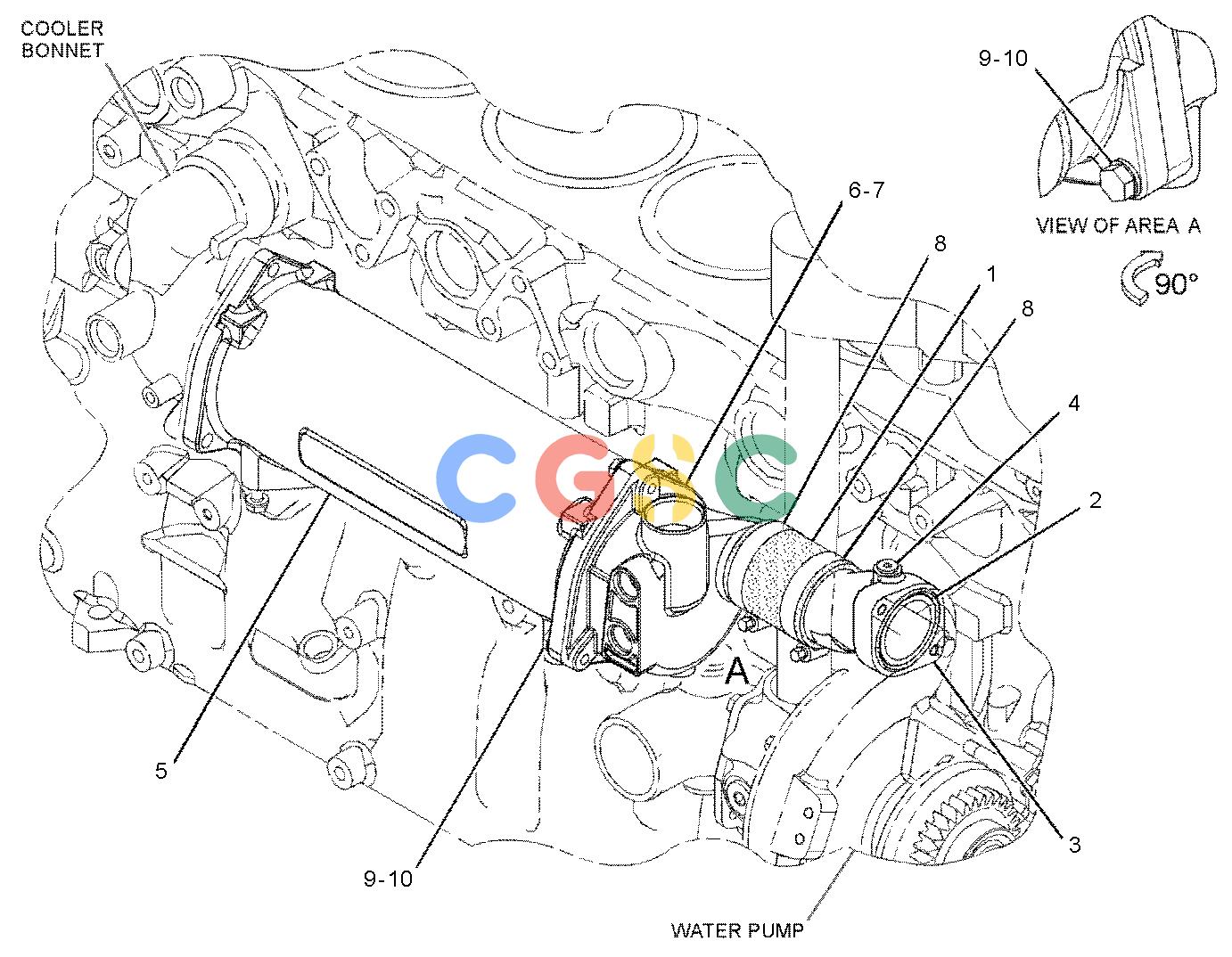

卡特零件查询（730） 384-9147: COOLER GP-ENGINE OIL
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-6645 | [1] | HOSE | |
| 2. | 224-2675 | [1] | SEAL | |
| 3. | 230-4518 | [1] | ELBOW | |
| 4. | 304-8008 | [1] | PLUG AS | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 5. | 379-3436 | [1] | CORE AS-OIL COOLER(ENGINE) | |
| 6. | 382-8015 | [1] | BONNET-OIL COOLER | |
| 7. | 213-9396 | [1] | SEAL-O-RING | |
| 8. | 335-9214 | [2] | CLAMP-BAND | |
| 9. | 6V-2317M | [3] | BOLT(M8X1.25X30-MM) | |
| 10. | 9M-1974 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
