沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsReverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
597 次

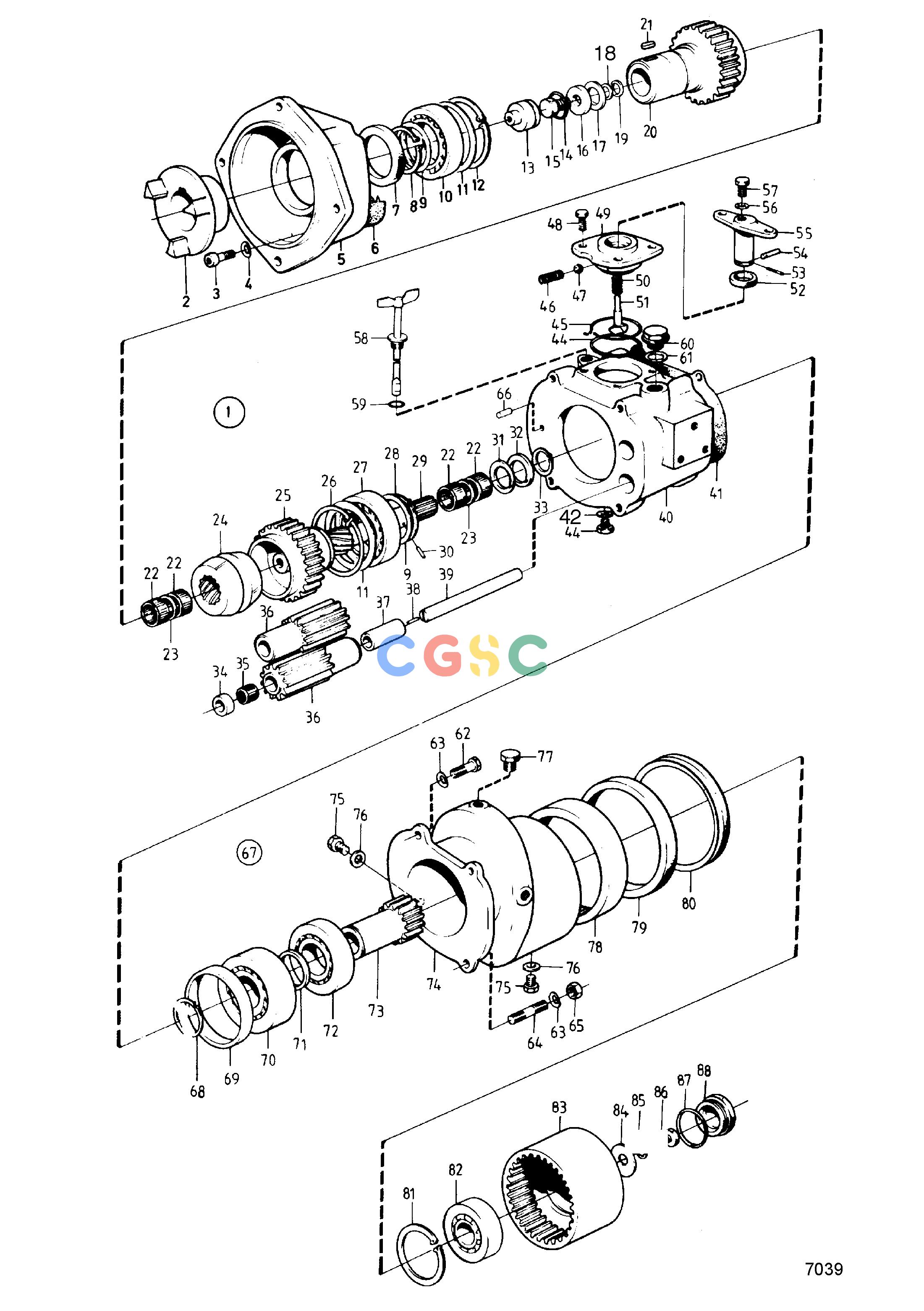

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838162
|
[1] |
Reversing gear
|
Ratio 1,91:1
|
| 2. |
827617
|
[1] |
Companion flange
|
|
| 3. |
959223
|
[4] |
Hex. socket screw
|
|
| 4. |
941907
|
[4] |
Spring washer
|
|
| 5. |
838071
|
[1] |
Extension part
|
|
| 6. |
852156
|
[1] |
Gasket
|
|
| 7. |
958878
|
[1] |
Sealing ring
|
|
| 8. |
914472
|
[1] |
Snap ring
|
|
| 9. |
947545
|
[1] |
Adjusting washer
|
TH=0,05mm
|
| 9. |
947546
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 9. |
947547
|
[1] |
Adjusting washer
|
TH=0.30mm
|
| 10. |
183803
|
[1] |
Ball bearing
|
|
| 11. |
947549
|
[1] |
Adjusting washer
|
TH=0,05mm
|
| 11. |
947550
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 11. |
947551
|
[1] |
Adjusting washer
|
TH=0.20mm
|
| 11. |
947552
|
[1] |
Adjusting washer
|
TH=0.40mm
|
| 12. |
914540
|
[1] |
Snap ring
|
|
| 13. |
839629
|
[1] |
Plug
|
|
| 14. |
925063
|
[1] |
O-ring
|
|
| 15. |
839673
|
[1] |
Screw
|
|
| 16. |
839631
|
[1] |
Washer
|
|
| 17. |
839630
|
[1] |
Washer
|
|
| 18. |
25930
|
[1] |
Shim
|
TH=0,10mm
|
| 18. |
120073
|
[1] |
Shim
|
TH=0.50mm
|
| 19. |
839670
|
[1] |
Washer
|
|
| 20. |
839623
|
[1] |
Gear
|
|
| 21. |
944013
|
[1] |
Key
|
|
| 22. |
181268
|
[4] |
Needle roller assemb
|
|
| 23. |
813939
|
[2] |
Spacer ring
|
|
| 24. |
839628
|
[1] |
Sliding sleeve
|
|
| 25. |
839625
|
[1] |
Gear
|
|
| 26. |
914540
|
[1] |
Snap ring
|
|
| 27. |
19578
|
[1] |
Ball bearing
|
|
| 28. |
914472
|
[1] |
Snap ring
|
|
| 29. |
827589
|
[1] |
Shaft
|
|
| 30. |
850761
|
[1] |
Pin
|
|
| 31. |
839671
|
[1] |
Spacer ring
|
|
| 32. |
839672
|
[1] |
Spacer ring
|
|
| 33. |
814030
|
[1] |
Lock ring
|
|
| 34. |
827314
|
[4] |
Bushing
|
|
| 35. |
183366
|
[4] |
Needle roller assemb
|
|
| 36. |
827312
|
[2] |
Gear
|
|
| 37. |
834008
|
[2] |
Spacer sleeve
|
|
| 38. |
951931
|
[2] |
Clamping pin
|
|
| 39. |
827313
|
[2] |
Planet shaft
|
|
| 40. |
827306
|
[1] |
Planetary housing
|
|
| 41. |
827889
|
[1] |
Gasket
|
|
| 42. |
960628
|
[1] |
Plug
|
|
| 43. |
834452
|
[1] |
Gasket
|
|
| 44. |
925093
|
[1] |
O-ring
|
|
| 45. |
941338
|
[1] |
Locking wire
|
L=300mm, early type
|
| 46. |
839136
|
[2] |
Spring
|
Early type
|
| 47. |
60309
|
[2] |
Ball
|
Early type
|
| 48. |
955272
|
[4] |
Hexagon screw
|
|
| 49. |
839505
|
[1] |
Bearing housing
|
|
| 50. |
814184
|
[1] |
Spring
|
|
| 51. |
839646
|
[1] |
Dog
|
|
| 52. |
958838
|
[1] |
Sealing ring
|
(941866)
|
| 53. |
951924
|
[1] |
Spring pin
|
|
| 54. |
942871
|
[1] |
Clevis pin
|
|
| 55. |
897816
|
[1] |
Eccentric piston
|
|
| 56. |
897871
|
[1] |
Shim
|
TH=0.20mm
|
| 57. |
897711
|
[1] |
Hexagon screw
|
|
| 58. |
827341
|
[1] |
Oil dipstick
|
|
| 59. |
925053
|
[1] |
O-ring
|
|
| 60. |
198
|
[1] |
Screw
|
|
| 61. |
15305
|
[1] |
Gasket
|
|
| 62. |
955297
|
[2] |
Hexagon screw
|
Late type
|
| 63. |
941907
|
[4] |
Spring washer
|
|
| 64. |
924062
|
[2] |
Stud
|
Late type
|
| 65. |
955782
|
[2] |
Hexagon nut
|
Late type
|
| 66. |
131251
|
[1] |
Pin
|
|
| 67. |
827664
|
[1] |
Reduction gear
|
|
| 68. |
914465
|
[1] |
Snap ring
|
|
| 69. |
827653
|
[1] |
Spacer ring
|
|
| 70. |
11025
|
[1] |
Ball bearing
|
|
| 71. |
827654
|
[1] |
Spacer ring
|
|
| 72. |
183523
|
[1] |
Roller bearing
|
|
| 73. |
827652
|
[1] |
Gear
|
|
| 74. |
827639
|
[1] |
Gear housing
|
|
| 75. |
914389
|
[2] |
Plug
|
Late type
|
| 76. |
834452
|
[2] |
Gasket
|
Late type
|
| 77. |
946185
|
[2] |
Plug
|
|
| 78. |
183524
|
[1] |
Needle roller bearin
|
|
| 79. |
|
|
|
Replaced by 942950 + 947044., Early type
|
| 79. |
942950
|
[1] |
Sealing ring
|
Late type
|
| 80. |
947044
|
[1] |
Sealing ring
|
Late type
|
| 81. |
914533
|
[1] |
Snap ring
|
|
| 82. |
11023
|
[1] |
Ball bearing
|
|
| 83. |
827651
|
[1] |
Gear
|
|
| 84. |
827659
|
[1] |
Washer
|
|
| 85. |
940109
|
[1] |
Toothed washer
|
|
| 86. |
959640
|
[1] |
Hexagon screw
|
|
| 87. |
955998
|
[1] |
O-ring
|
Late type
|
| 88. |
827936
|
[1] |
Plug
|
Late type
|
| 88. |
875577
|
[1] |
Gasket kit
|
See group 10
|
