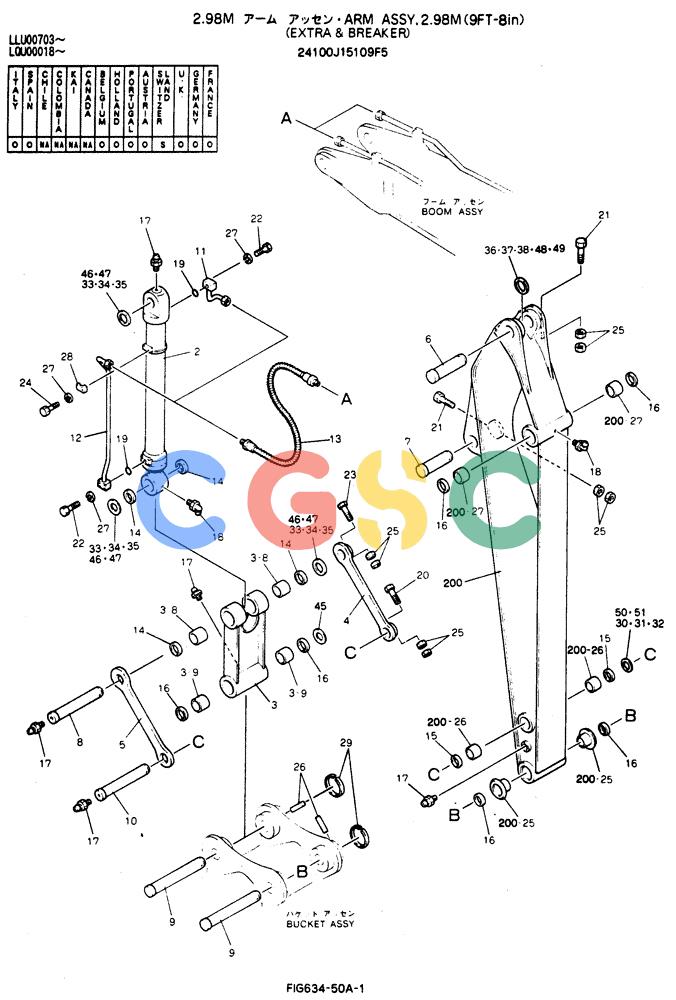

| . . | 24100J15109F5 | [1] | ARM ASSY, 2. 98M | |
| 2. | 2438U1138F1 | [1] | CYLINDER | KOBRemarks: SEE (C. P. M) |
| 3. | 2406N1663F1 | [1] | LINK CONROD | KOBLINK, BUCKET |
| 3-8. | 2405T1263 | [2] | BUSHING | KOB |
| 3-9. | 2405T1264 | [2] | BUSHING | KOB |
| 4. | 2406P4903D1 | [1] | LINK CONROD | KOBLINK, IDLER |
| 5. | 2406P4903D2 | [1] | LINK CONROD | KOBLINK, IDLER |
| 6. | 2419P2953 | [1] | PIN | KOB Superseded by part number: 2419P4041 |
| 7. | 2419P3331D2 | [1] | PIN | KOB |
| 8. | 2419P3266D1 | [1] | PIN,80mm OD x 480mm L | KOB Superseded by part number: 2419P4044D1 |
| 9. | 2419T4684D1 | [2] | PIN,90mm OD x 500mm L | KOB Superseded by part number: 2419T7611D1 |
| 10. | 2419P3267D1 | [1] | PIN,70mm OD x 449mm L | KOB Superseded by part number: 2419P4045D1 |
| 11. | 2418T18163 | [1] | RIGID TUBE | KOBTUBE |
| 12. | 2418T17669 | [1] | RIGID TUBE | KOBTUBE |
| 13. | 2444R1177D3 | [2] | FLEXIBLE HOSE | KOB1300mm Long (51-3/16 in) |
| 14. | 2445R220D4 | [4] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| 15. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| 16. | 2445R220D6 | [6] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDust -- ID 90 X OD 105 x Th 6mm |
| 17. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 18. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 19. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 20. | 2420T4330D9 | [1] | SCREW,M16 x 2 x 130mm | KOBM16x2.0x130mm Superseded by part number: HS18C16130G2 |
| 21. | 2420T4330D2 | [2] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm Superseded by part number: HS18C16150G1 |
| 22. | ZS13C10070 | [8] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 23. | 2420T4330D10 | [1] | SCREW,M16 x 2 x 140mm | KOBM16x2.0x140mm Superseded by part number: ZS18C16140 |
| 24. | ZS13C10055 | [1] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 25. | ZN13C16013 | [8] | NUT | KOBM16x2.0mm |
| 26. | 2419T6002D1 | [2] | PIN,16mm OD x 115mm L | KOBOD 16 x 115mm Long |
| 27. | ZW22X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 28. | 2432T1187 | [1] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 29. | 2418T23987D1 | [2] | RING | KOBID 118 ± 1.0 x OD 123 x Th 12mm |
| 30. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 31. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 32. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 33. | B16T0442D3 | [3] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 34. | B16T0442D4 | [3] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 35. | B16T0442D6 | [3] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
| 36. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 37. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 38. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| 45. | B16T0442D92 | [1] | SHIM,140mm OD x 92mm ID x 0.5mm Thk | KOBID 92 x OD 140 x Th 0.5mm |
| 46. | B16T0442D52 | [3] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOBID 82 x OD 150 x Th 0.5mm |
| 47. | B16T0442D39 | [3] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
| 48. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOBID 92 x OD 160 x Th 0.9mm |
| 49. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOBID 92 x OD 160 x Th 0.5mm |
| 50. | B16T0442D44 | [1] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| 51. | B16T0442D57 | [1] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 103. | ZX56T16160 | [2] | FLEXIBLE HOSE | KOBHOSE |
| 108. | ZC26X35016 | [8] | CLAMP | KOBSingle Line -- 85x44x38mm (Ø35mm) |
| 112. | ZS13C14060 | [8] | SCREW | KOBM14x2.0x60mm Superseded by part number: ZS18C14060 |
| 113. | ZW22X14000 | [8] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 200. | 2411J4519D5F1 | [1] | ARM | |
| 200-25. | 2405T1293 | [2] | BUSHING | KOB |
| 200-26. | B05T0041C2 | [2] | BUSHING | KOB |
| 200-27. | 2405T1332 | [2] | BUSHING | KOB |
| 200-34. | 2416T12924D3 | [2] | LINK BLOCK | KOBBLOCK, TAPPED |
| 200-35. | 2418T12187D3 | [2] | PLATE | PLATE |
| 200-36. | 2416T13103D3 | [4] | BLOCK, TAPPED | |
| 200-37. | 24111T763 | [2] | PLATE | |
| 200-38. | 2416T1320302 | [1] | BLOCK, TAPPED | |
| 200-39. | 2416T9878D5 | [1] | CONNECTING BLOCK | KOBBLOCK, TAPPED |
| 201. | 2418P28986D1 | [1] | TUBE | TUBE |
| 202. | 2418P28986D2 | [1] | TUBE | KOB |
| 209. | 2444T2406 | [2] | PLUG | KOBCap -- 1-5/16" 12UNF |
| 210. | 2444Z2093 | [4] | HYD CONNECTOR | KOBCONNECTOR |
| 211. | 24100P1005F1 | [2] | VALVE | KOBSELECTOR Superseded by part number: 24100P1005F3 |
| 211-1. | 2436P229 | [1] | VALVE BODY | KOBBODY, VALVE |
| 211-2. | 2436T303 | [1] | VALVE | KOB |
| 211-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 211-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 211-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 211-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 211-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 211-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 211-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 211-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 212. | ZD12P02400 | [6] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 217. | ZC26X18011 | [2] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 218. | ZC36X18011 | [1] | CLAMP | KOB |
| 219. | ZA53B18000 | [2] | TEE | KOB |
| 220. | 2444Z2225 | [4] | HYD CONNECTOR | KOBCONNECTOR |
| 221. | 2420T4384 | [4] | PLUG | KOB |
| 222. | 2444T2453D1 | [2] | CONNECTOR | |
| 223. | ZS13C10045 | [3] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 225. | 2418P29036 | [1] | TUBE | TUBE |
| 226. | 2418P29037 | [1] | TUBE | TUBE |
| 227. | 2418P29038 | [1] | TUBE | TUBE |
| 228. | 2418P29042 | [1] | TUBE | TUBE |
| 229. | 2418P18825D3 | [1] | BARREL | KOBTUBE |
| 230. | 2418P18825D4 | [1] | TUBE | |
