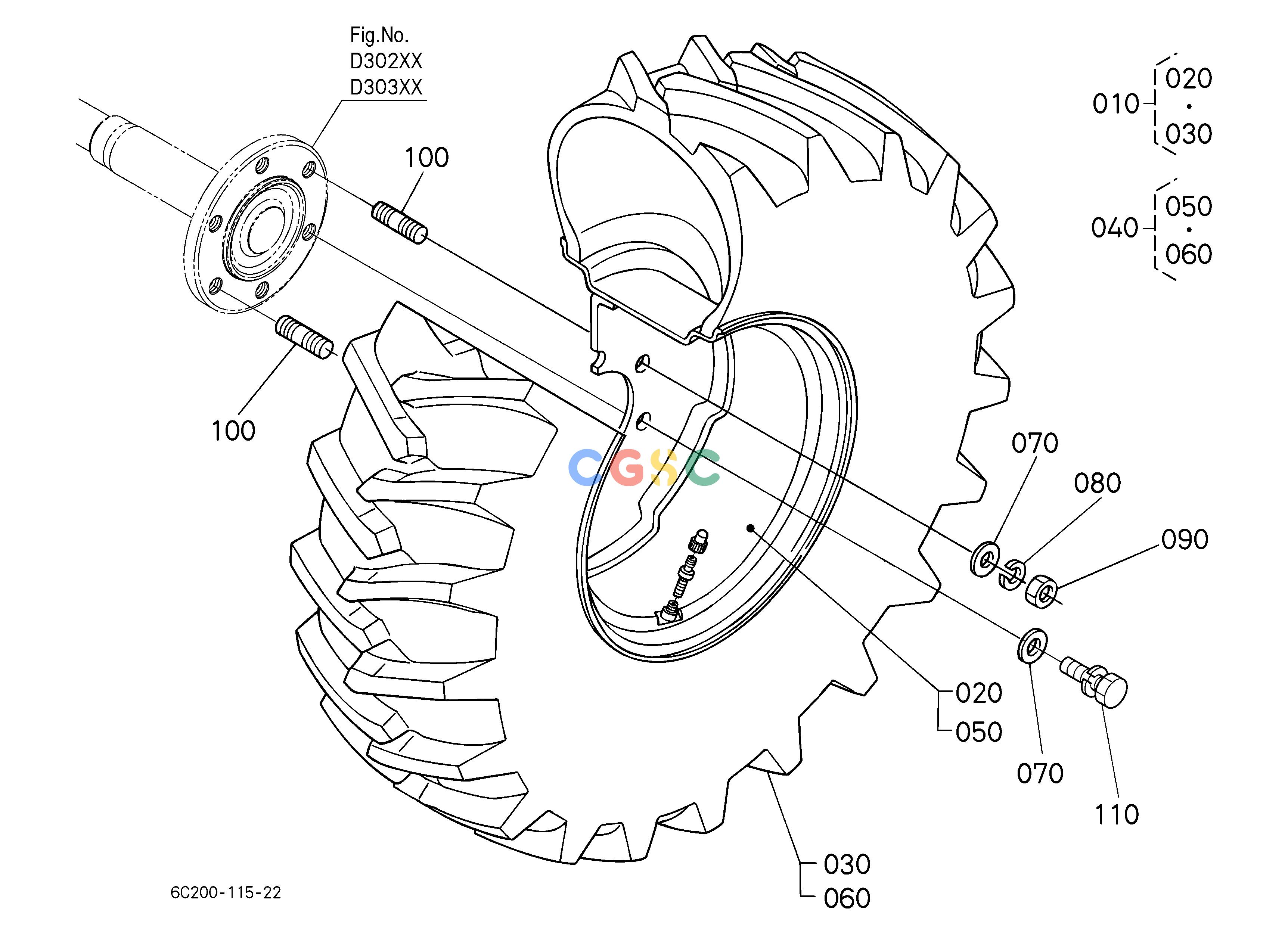

久保田零件查询R11001 REAR WHEEL (12.4-16) REAR WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6642917620
|
[1] |
ASSY TIRE,LH
|
0.0000(lbs); 0.000
|
| 020. |
3270127950
|
[1] |
43458 WHEEL
|
0.0000(lbs); 0.000
|
| 030. |
6642917650
|
[1] |
12.4-16 R1 4P 345202
|
0.0000(lbs); 0.000
|
| 040. |
6642917630
|
[1] |
ASSY TIRE,RH
|
0.0000(lbs); 0.000
|
| 050. |
3270127950
|
[1] |
43458 WHEEL
|
0.0000(lbs); 0.000
|
| 060. |
6642917650
|
[1] |
12.4-16 R1 4P 345202
|
0.0000(lbs); 0.000
|
| 070. |
0401350160
|
[12] |
WASHER,PLAIN
|
0.0242(lbs); 0.011
|
| 080. |
0451250160
|
[4] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
| 090. |
0217650160
|
[4] |
HEX.NUT
|
0.0462(lbs); 0.021
|
| 100. |
0151751632
|
[4] |
BOLT,STUD
|
0.1672(lbs); 0.076
|
| 110. |
0113351635
|
[8] |
BOLT,SEMS
|
0.1980(lbs); 0.090
|
