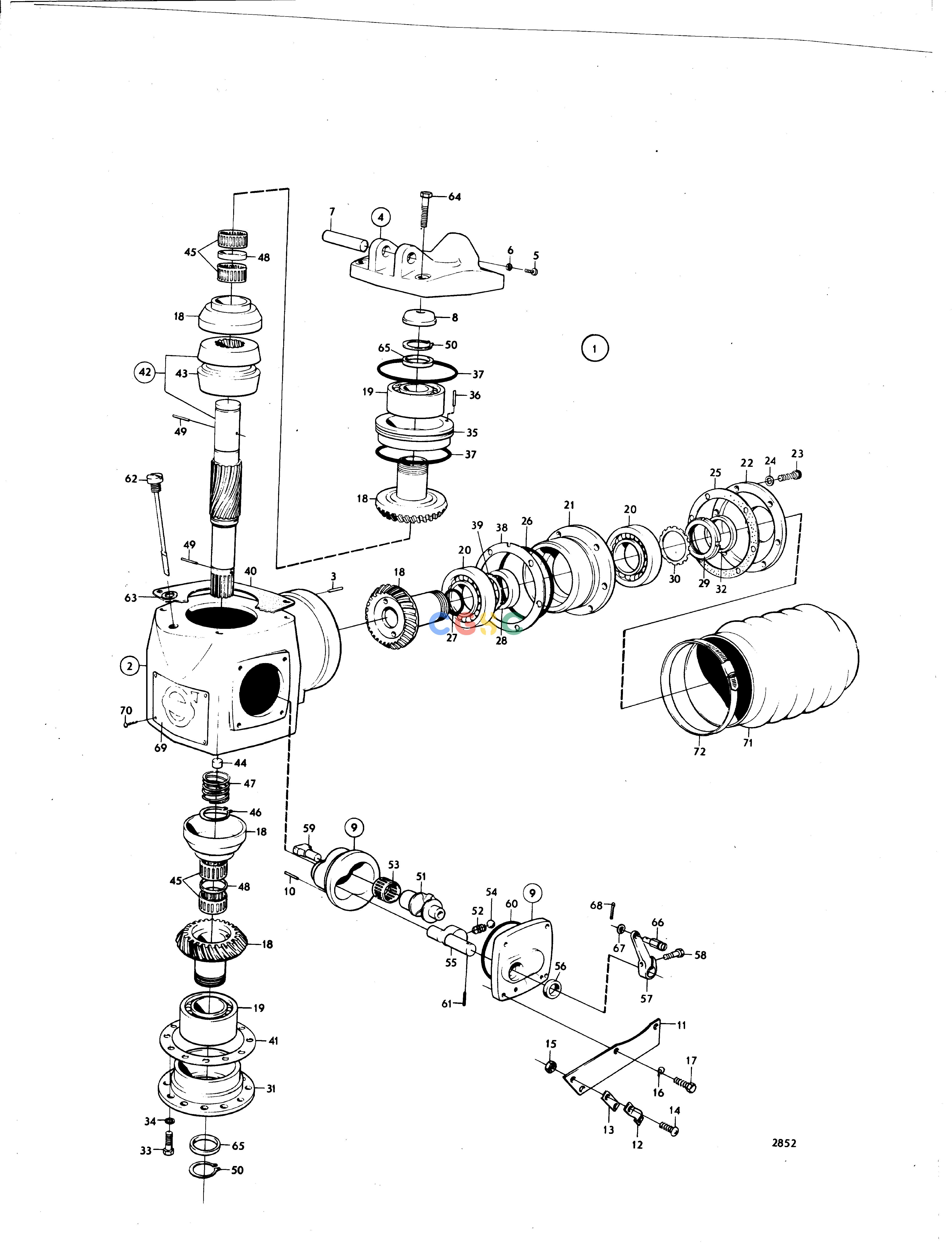

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsUpper Gear Unit Sail Boat Drive Unit 100SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
358 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
839211
|
[1] |
Upper gear
|
|
| 2. |
832126
|
[1] |
Housing
|
|
| 3. |
961638
|
[1] |
Grooved pin
|
|
| 4. |
832139
|
[1] |
Gear housing cover
|
|
| 5. |
804342
|
[1] |
Screw
|
|
| 6. |
804344
|
[1] |
Gasket
|
|
| 7. |
813952
|
[1] |
Shaft
|
|
| 8. |
832140
|
[1] |
Washer
|
|
| 9. |
832143
|
[1] |
Gear housing cover
|
|
| 10. |
950512
|
[1] |
Pin
|
|
| 11. |
839220
|
[1] |
Cable attachment
|
|
| 12. |
21471054
|
[1] |
Bracket
|
|
| 13. |
819068
|
[1] |
Washer
|
|
| 14. |
950022
|
[2] |
Cross recessed screw
|
|
| 15. |
940092
|
[2] |
Hexagon nut
|
|
| 16. |
941906
|
[4] |
Spring washer
|
|
| 17. |
940094
|
[4] |
Hexagon screw
|
|
| 18. |
839212
|
[1] |
Gear set
|
|
| 19. |
181287
|
[2] |
Ball bearing
|
|
| 20. |
181290
|
[2] |
Ball bearing
|
|
| 21. |
832920
|
[1] |
Bearing box
|
|
| 22. |
832921
|
[1] |
Bearing cover
|
|
| 23. |
956571
|
[6] |
Hex. socket screw
|
|
| 24. |
941907
|
[6] |
Spring washer
|
|
| 25. |
832952
|
[1] |
Gasket
|
|
| 26. |
925094
|
[1] |
O-ring
|
|
| 27. |
955995
|
[1] |
O-ring
|
|
| 28. |
832128
|
[1] |
Intermediate ring
|
TH=11,850mm
|
| 28. |
832129
|
[1] |
Intermediate ring
|
TH=11,875mm
|
| 28. |
832130
|
[1] |
Intermediate ring
|
TH=11,900mm
|
| 28. |
832131
|
[1] |
Intermediate ring
|
TH=11,925mm
|
| 28. |
832132
|
[1] |
Intermediate ring
|
TH=11,950mm
|
| 28. |
832133
|
[1] |
Intermediate ring
|
TH=11,975mm
|
| 28. |
832134
|
[1] |
Intermediate ring
|
TH=11,000mm
|
| 29. |
832923
|
[1] |
Lock nut
|
|
| 30. |
907025
|
[1] |
Lock washer
|
|
| 31. |
804205
|
[1] |
Cover
|
|
| 32. |
958856
|
[1] |
Sealing ring
|
|
| 33. |
940135
|
[6] |
Hexagon screw
|
|
| 34. |
941907
|
[6] |
Spring washer
|
|
| 35. |
813949
|
[1] |
Bearing sleeve
|
|
| 36. |
951953
|
[1] |
Spring pin
|
|
| 37. |
925257
|
[2] |
O-ring
|
|
| 38. |
804301
|
[1] |
Adjusting washer
|
TH=0,05mm
|
| 38. |
804221
|
[1] |
Adjusting washer
|
TH=0.1mm
|
| 38. |
804394
|
[1] |
Adjusting washer
|
TH=0.2mm
|
| 39. |
84219
|
[1] |
Shim
|
TH=0,1mm, early type
|
| 40. |
804299
|
[1] |
Adjusting washer
|
TH=0,05mm
|
| 40. |
804220
|
[1] |
Adjusting washer
|
TH=0.1mm
|
| 40. |
804393
|
[1] |
Adjusting washer
|
TH=0.2mm
|
| 41. |
804298
|
[1] |
Adjusting washer
|
TH=0.5mm
|
| 41. |
804219
|
[1] |
Adjusting washer
|
TH=0.1mm
|
| 41. |
804392
|
[1] |
Adjusting washer
|
TH=0.2mm
|
| 42. |
875169
|
[1] |
Sliding sleeve
|
|
| 43. |
|
|
|
|
| 44. |
955076
|
[1] |
Plug
|
|
| 45. |
181268
|
[4] |
Needle roller assemb
|
|
| 46. |
941280
|
[1] |
Lock ring
|
|
| 47. |
813970
|
[1] |
Spring
|
|
| 48. |
813939
|
[2] |
Spacer ring
|
|
| 49. |
850761
|
[2] |
Pin
|
|
| 50. |
814030
|
[2] |
Lock ring
|
|
| 51. |
813943
|
[1] |
Eccentric piston
|
|
| 52. |
813945
|
[1] |
Spring
|
|
| 53. |
813999
|
[1] |
Needle bearing
|
|
| 54. |
205
|
[1] |
Ball
|
|
| 55. |
813942
|
[1] |
Eccentric shaft
|
|
| 56. |
958807
|
[1] |
Sealing ring
|
(940398)
|
| 57. |
839240
|
[1] |
Lever
|
|
| 58. |
959616
|
[1] |
Hexagon screw
|
|
| 59. |
813934
|
[1] |
Dog
|
|
| 60. |
925093
|
[1] |
O-ring
|
|
| 61. |
839288
|
[1] |
Clamping pin
|
|
| 62. |
832137
|
[1] |
Oil dipstick
|
|
| 63. |
804261
|
[1] |
Gasket
|
|
| 64. |
940172
|
[4] |
Hexagon screw
|
|
| 65. |
813941
|
[1] |
Spacer ring
|
TH=5.0mm
|
| 65. |
813971
|
[1] |
Spacer ring
|
TH=5,1mm
|
| 65. |
813972
|
[1] |
Spacer ring
|
TH=5,2mm
|
| 65. |
813973
|
[1] |
Spacer ring
|
TH=5,3mm
|
| 65. |
813974
|
[1] |
Spacer ring
|
TH=5,4mm
|
| 66. |
813674
|
[1] |
Cube
|
|
| 67. |
940191
|
[1] |
Washer
|
|
| 68. |
907834
|
[1] |
Split pin
|
(17276)
|
| 69. |
804425
|
[1] |
Sign
|
|
| 70. |
804269
|
[4] |
Drive screw
|
|
| 71. |
875512
|
[4] |
Rubber bellows
|
|
| 72. |
853013
|
[2] |
Hose clamp
|
|
