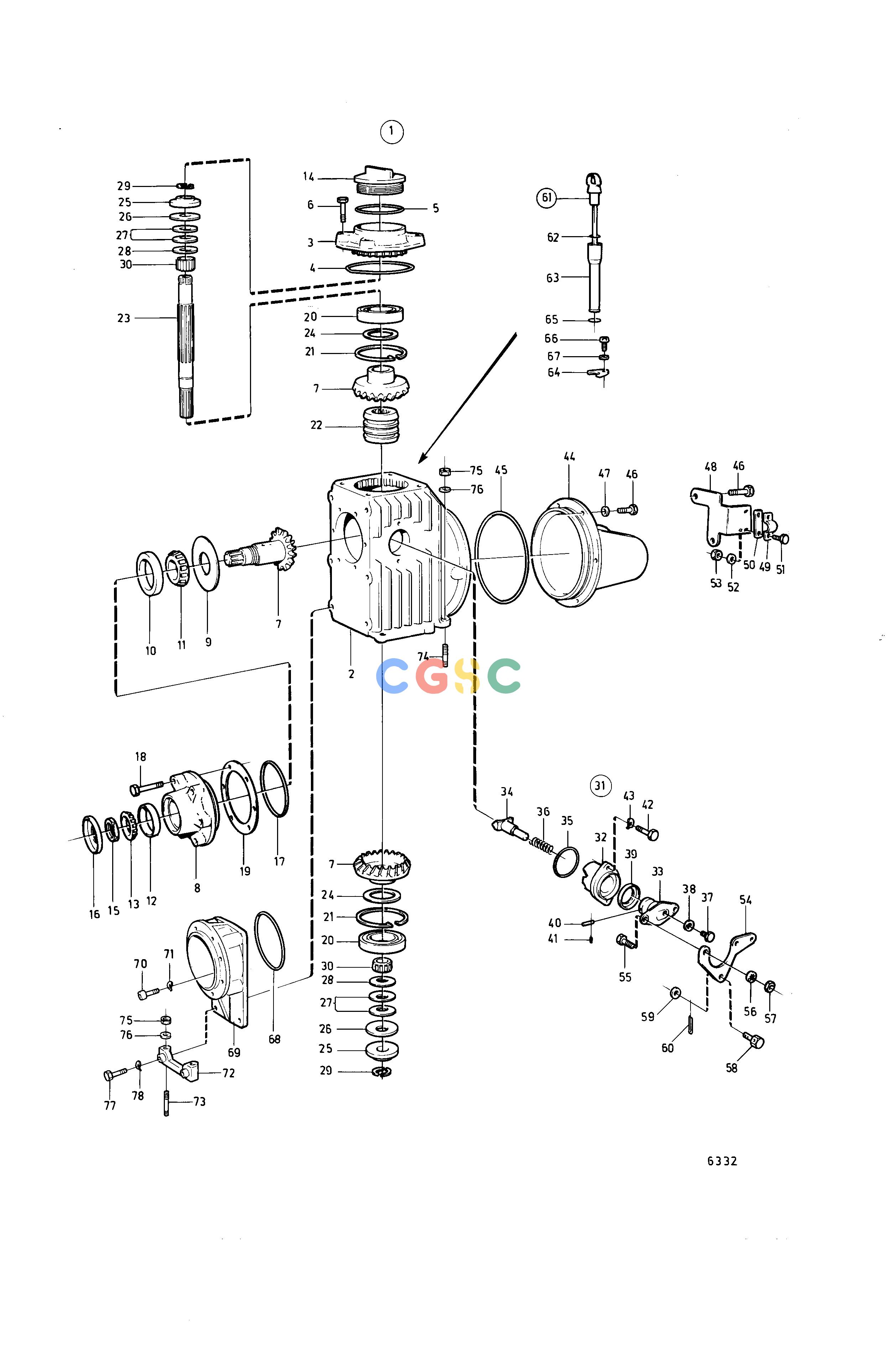

沃尔沃零件查询MD5A; MD5B; MD5CTransmissionsUpper Gear Unit Sail Boat Drive Unit 120SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Early production of upper gear 852488 is replaced by upper gear 852536 + spline sleeve 852534., Earl
|
| 1. |
852536
|
[1] |
Upper gear
|
|
| 2. |
852523
|
[1] |
Housing
|
|
| 3. |
852524
|
[1] |
Cover
|
(851614)
|
| 4. |
949962
|
[1] |
O-ring
|
|
| 5. |
925254
|
[1] |
O-ring
|
|
| 6. |
946671
|
[4] |
Flange screw
|
|
| 7. |
851616
|
[1] |
Gear set
|
|
| 8. |
851619
|
[1] |
Bearing box
|
|
| 9. |
851621
|
[1] |
Turntable
|
|
| 10. |
181302
|
[1] |
Cup
|
|
| 11. |
181301
|
[1] |
Inner ring
|
|
| 12. |
183750
|
[1] |
Cup
|
|
| 13. |
183752
|
[1] |
Cone
|
|
| 14. |
851754
|
[1] |
Filler cap
|
|
| 15. |
852485
|
[1] |
Lock nut
|
|
| 16. |
851755
|
[1] |
Sealing ring
|
|
| 17. |
925093
|
[1] |
O-ring
|
|
| 18. |
940101
|
[6] |
Hexagon screw
|
|
| 19. |
851622
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 19. |
851623
|
[1] |
Adjusting washer
|
TH=0.15mm
|
| 19. |
851624
|
[1] |
Adjusting washer
|
TH=0.35mm
|
| 20. |
851756
|
[2] |
Bearing
|
|
| 21. |
852190
|
[2] |
Lock ring
|
|
| 22. |
851626
|
[1] |
Sliding sleeve
|
|
| 23. |
|
|
|
Early production of shaft is replaced by saft 852527 + spline sleeve 852534., Early type
|
| 23. |
852527
|
[1] |
Shaft
|
|
| 24. |
84219
|
[1] |
Shim
|
TH=0,10mm
|
| 24. |
949776
|
[1] |
Shim
|
TH=0.15mm
|
| 24. |
84218
|
[1] |
Shim
|
TH=0.35mm
|
| 25. |
852079
|
[2] |
Lock washer
|
|
| 26. |
852213
|
[2] |
Disc spring
|
|
| 27. |
852080
|
[6] |
Disc spring
|
|
| 28. |
852311
|
[2] |
Washer
|
TH=0.4mm
|
| 28. |
852317
|
[2] |
Washer
|
TH=0.8mm
|
| 29. |
851629
|
[4] |
Locking ring section
|
|
| 30. |
851757
|
[2] |
Needle bearing
|
|
| 31. |
851661
|
[1] |
Shift mechanism
|
|
| 32. |
851662
|
[1] |
Bearing housing
|
|
| 33. |
897816
|
[1] |
Eccentric piston
|
|
| 34. |
851664
|
[1] |
Dog
|
|
| 35. |
925065
|
[1] |
O-ring
|
|
| 36. |
814184
|
[1] |
Spring
|
|
| 37. |
897711
|
[1] |
Hexagon screw
|
|
| 38. |
897871
|
[1] |
Shim
|
TH=0.20mm
|
| 39. |
958838
|
[1] |
Sealing ring
|
|
| 40. |
942871
|
[1] |
Clevis pin
|
|
| 41. |
951924
|
[1] |
Spring pin
|
|
| 42. |
955296
|
[2] |
Hexagon screw
|
|
| 43. |
941907
|
[2] |
Spring washer
|
|
| 44. |
851606
|
[1] |
Bracket
|
|
| 45. |
925262
|
[1] |
O-ring
|
|
| 46. |
945444
|
[6] |
Flange screw
|
|
| 47. |
955894
|
[2] |
Washer
|
|
| 48. |
852074
|
[1] |
Cable attachment
|
|
| 49. |
21471054
|
[1] |
Bracket
|
|
| 50. |
819068
|
[1] |
Washer
|
|
| 51. |
955246
|
[2] |
Hexagon screw
|
|
| 52. |
940090
|
[2] |
Washer
|
|
| 53. |
946577
|
[2] |
Lock nut
|
|
| 54. |
852363
|
[1] |
Intermediate lever
|
|
| 55. |
955270
|
[2] |
Hexagon screw
|
|
| 56. |
955948
|
[2] |
Toothed washer
|
|
| 57. |
955781
|
[2] |
Hexagon nut
|
|
| 58. |
804312
|
[1] |
Cube
|
|
| 59. |
955892
|
[1] |
Washer
|
|
| 60. |
907834
|
[1] |
Split pin
|
(17276)
|
| 61. |
852314
|
[1] |
Oil dipstick
|
|
| 62. |
925054
|
[1] |
O-ring
|
|
| 63. |
852228
|
[1] |
Tube
|
|
| 64. |
852229
|
[1] |
Cap
|
|
| 65. |
925055
|
[1] |
O-ring
|
|
| 66. |
956063
|
[1] |
Cross recessed screw
|
|
| 67. |
955891
|
[1] |
Washer
|
|
| 68. |
925260
|
[1] |
O-ring
|
|
| 69. |
852106
|
[1] |
Extension part
|
|
| 70. |
959239
|
[4] |
Hex. socket screw
|
|
| 71. |
942336
|
[4] |
Spring washer
|
|
| 72. |
852662
|
[1] |
Bracket
|
Included in drive unit 120S
|
| 73. |
952987
|
[2] |
Stud
|
Included in lower gear unit 852487., L=70mm
|
| 74. |
924066
|
[2] |
Stud
|
Included in lower gear unit 852487., L=45mm
|
| 75. |
963106
|
[4] |
Lock nut
|
Included in drive unit 120S.
|
| 76. |
955894
|
[4] |
Washer
|
Included in drive unit 120S.
|
| 77. |
955324
|
[2] |
Hexagon screw
|
Included in drive unit 120S., L=60mm
|
| 78. |
942336
|
[2] |
Spring washer
|
Included in drive unit 120S.
|
