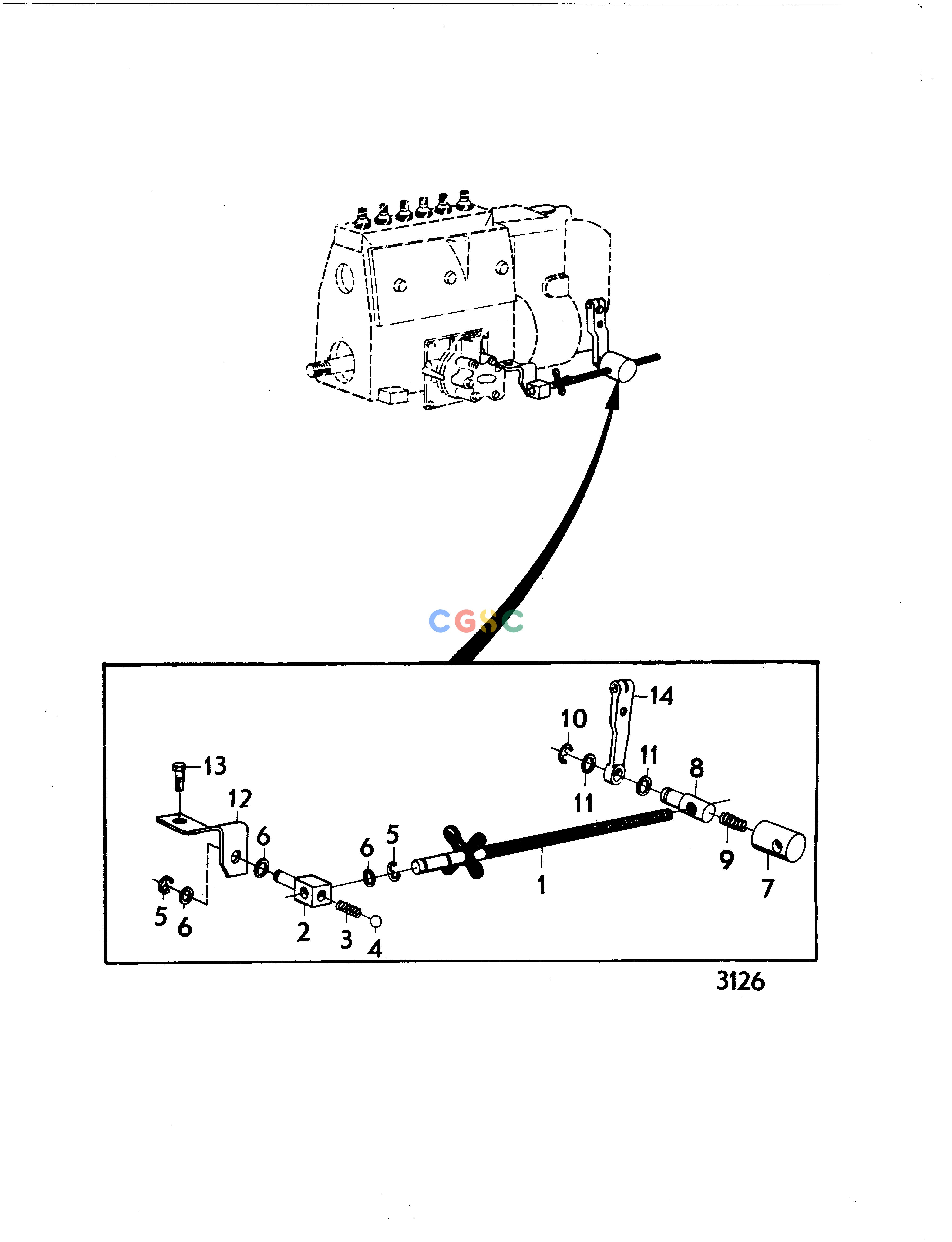

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BControlsManual Speed Control MO-46196/XXXXEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
172 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837005
|
[1] |
Control rod
|
|
| 2. |
899543
|
[1] |
Cube
|
|
| 3. |
88333
|
[1] |
Compression spring
|
|
| 4. |
26694
|
[1] |
Ball
|
|
| 5. |
951670
|
[3] |
E-circlip
|
|
| 6. |
941907
|
[4] |
Spring washer
|
|
| 7. |
822488
|
[1] |
Control sleeve
|
|
| 8. |
822487
|
[1] |
Piston
|
|
| 9. |
836791
|
[1] |
Compression spring
|
|
| 10. |
951668
|
[1] |
E-circlip
|
|
| 11. |
191150
|
[2] |
Spring washer
|
|
| 12. |
820994
|
[1] |
Anchorage
|
|
| 13. |
|
|
|
See group 2C
|
| 14. |
|
|
|
See group 2C
|
